100K Ohm Cermet Trimmer Potentiometer 18-Turn Top Adjust, 500mW

This 100K Ohm cermet trimmer potentiometer is designed for precise adjustment in repair, calibration, and general electronics applications. It is an 18-turn, top-adjust trimmer pot rated at 500 mW, suitable for fine tuning resistance settings on circuit boards and prototypes. Condition is New – Open box, so the item is unused but the original packaging may be opened or show minor handling wear. Free Shipping is included. Check the listing for details on pin layout, dimensions, and any included packaging or accessories.

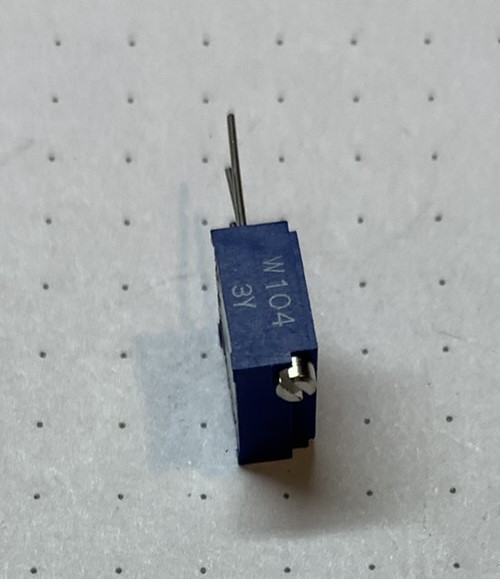

100K Ohm Cermet Trimmer Potentiometer 18-Turn Top Adjust, 500mW image 1

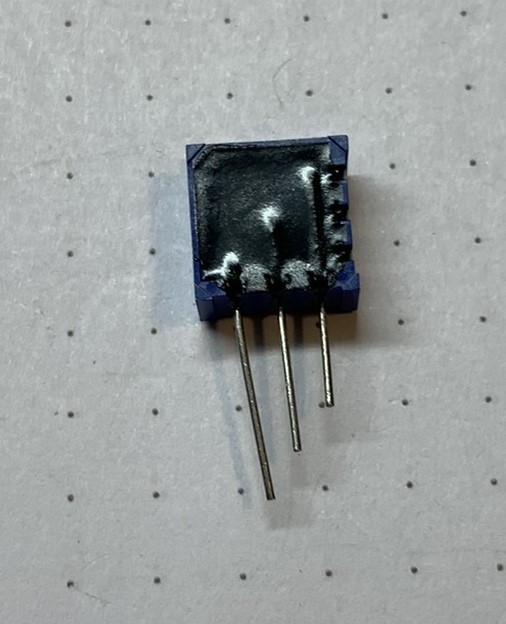

100K Ohm Cermet Trimmer Potentiometer 18-Turn Top Adjust, 500mW image 2

100K Ohm Cermet Trimmer Potentiometer 18-Turn Top Adjust, 500mW image 3

100K Ohm Cermet Trimmer Potentiometer 18-Turn Top Adjust, 500mW image 4

USD 2.89

Condition: see listing

Location	Independence US
Shipping	Free shipping (check listing for details)
Seller	dyer-timo 100.0% positive · 326 feedback
Listing	FixedPrice · Active
Start time	2026-01-21T06:28:51.000Z

View on eBay Read review

100K Ohm Cermet Trimmer Potentiometer 18-Turn Top Adjust, 500mW Specs

Mounting Style	PCB Mount
Power Rating	500 mW
Shape	Rectangular
Termination Style	Pin
Material	Cermet
MPN	CT-94W-104
Number of Turns	18
Item Length	9.6 mm
Minimum Operating Temperature	-55 °C (-67 °F)
Brand	Vishay
Series	CT94
Type	Multi Turn Potentiometer
Tolerance Rating	±10 %
Item Height	9.6 mm
Resistance Rating	100 kΩ
Maximum Operating Temperature	125 °C (257 °F)
Item Width	4.8 mm

Listing details

100 K Ohm, 500 mW, Trimmer Potentiometer, Cermet, 18.0 Turns, Top Adjust, PC Pin Through Hole, 1 EachThese parts will ship USPS First Class Mail with no tracking.
