Screamer Humbucker DFG Pickups ~ Choice of Individual or Set Type & Color Choice

Dragonfire SCREAMER Humbucker PickupsCHOICE OF COLORS & STYLE:*1 Individual Bridge Humbucker*1 Individual Neck Humbucker*1 Set of 2 Humbuckers: 1 Bridge + 1 Neck*1 Set of 3 Humbuckers: 1 Bridge + 2 Neck*1 Set of 3 Humbuckers: 2 Bridge + 1 NeckFor high output and clarity, Screamers perform in a variety of styles. These humbuckers use ceramic magnets and produce 16.9K (approximate) output on the bridge and 8.3K (approximate) output on the neck.These humbuckers are 4-wire for even more wiring versatility including tapping/splitting or series/parallel wiring.Check our ebay Store for other Screamer options as well as a huge variety of other Dragonfire Humbucker, Strat Single Coil, Bass, Tele, Active & Specialty pickup styles.SCREAMER HIGHLIGHTS*

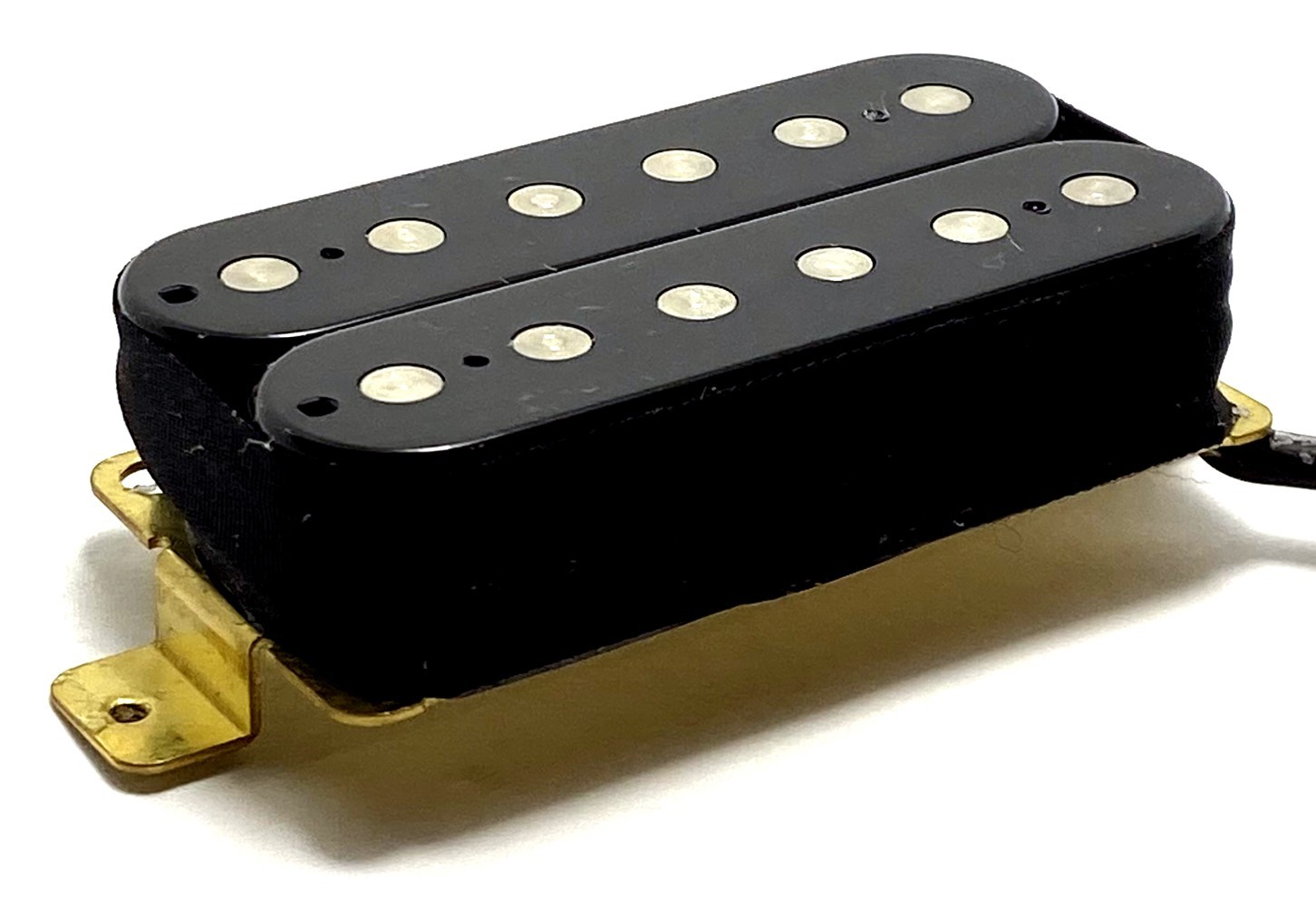

Brand New Humbucker(s) (choice of quantity & style)*6 String Passive Humbucker Pickup*Flat Top, Slug Style Exposed Polepieces*Uncovered Open Coil Bobbin Style*Wax Potted for Squeal Reduction*4 Wire Ceramic Magnet Pickup*Pickup Mounting Screws & Springs Included*Standard Polepiece Spacing: 52mm (Bridge) &/or 50mm (Neck)*Output: 16.9K (Bridge) &/or 8.3K (Neck)*Pickup Length: 68mm (84mm including mounting flanges)*Pickup Width: 37mm*Pickup Depth: 16mm (22mm including mounting flanges)*Mounting Screw Spacing: 78mm*500K Pots & 0.047 Tone Caps Recommended (available separately)*Installation Requires Soldering ~ Instructions NOT ProvidedThe included pickup wire

color codes will let you know the hot, ground, and coil split wire colors for these 4-wire pickups. Due to the vast and varied nature of possible set-ups, we do not provide specific information or diagrams for installation. You should be able to use the simple information we provide to match up with any diagram or instructions you choose to use. Please note that different manufacturers and pickup styles use different wire

color code systems. It is important to use the Dragonfire wire

color codes provided with your order. Installation requires soldering and a compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.Nothing else is included. There are no diagrams or instructions provided with this item. We do not provide technical or any other type of support for installation, configuration, modification, or use of this item. Do not purchase if you are unsure of your ability to successfully complete installation. If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses. PURCHASE NOTESAllow and expect variation in

color due to photo and monitor settings as well as natural product variance. CONTACT US PRIOR TO PURCHASE if you have any questions or concerns regarding color, pattern, fit, materials, installation requirements, compatibility with your instrument, measurements provided, or anything else.Inspect your order carefully upon receipt for any shipping damage, fit, color, and general appearance. DO NOT modify or install the pickups if they do not meet with your approval for any reason. We pledge to address any problems or concerns you have PRIOR to installation. If everything is in order upon receipt, simply install carefully to enjoy.
