KBPC5010 Diode Bridge Rectifier 1000V 50A Metal Case (5-10pcs)
This listing offers KBPC5010 single-phase diode bridge rectifiers in a metal case, sold in a 5 or 10 piece quantity. The parts are listed as New and suitable for general rectification and power conversion repairs or replacements. Electrical ratings shown in the title are 1000V and 50A; check the listing for details on exact package style, mounting, and any included accessories. Price shown is 9.75 USD, and shipping is Free Shipping. Check the listing for details.
| Location | Pine Brook, New Jersey US |
| Shipping | Free shipping (check listing for details) |
| Seller |
discountcoinshop
99.2% positive · 27904 feedback
|
| Listing | FixedPrice · Active |
| Restocking Fee | No |
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money back or replacement (buyer's choice) |
| Brand | Unbranded |
| Material | Metal |
| Maximum Continuous Current | 50 A |
| Maximum Operating Temperature | 150 °C (302 °F) |
| Model | KBPC5010 50A 1000V Bridge Rectifier |
| Mounting Style | Chassis Mount |
| MPN | KBPC5010 |
| Peak Reverse Repetitive Voltage | 1000 V |
| Reverse Current | 10 µA |
| Type | Bridge Rectifier |

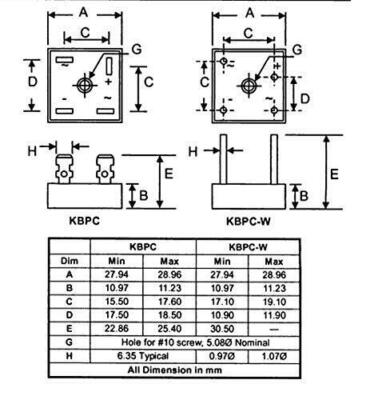

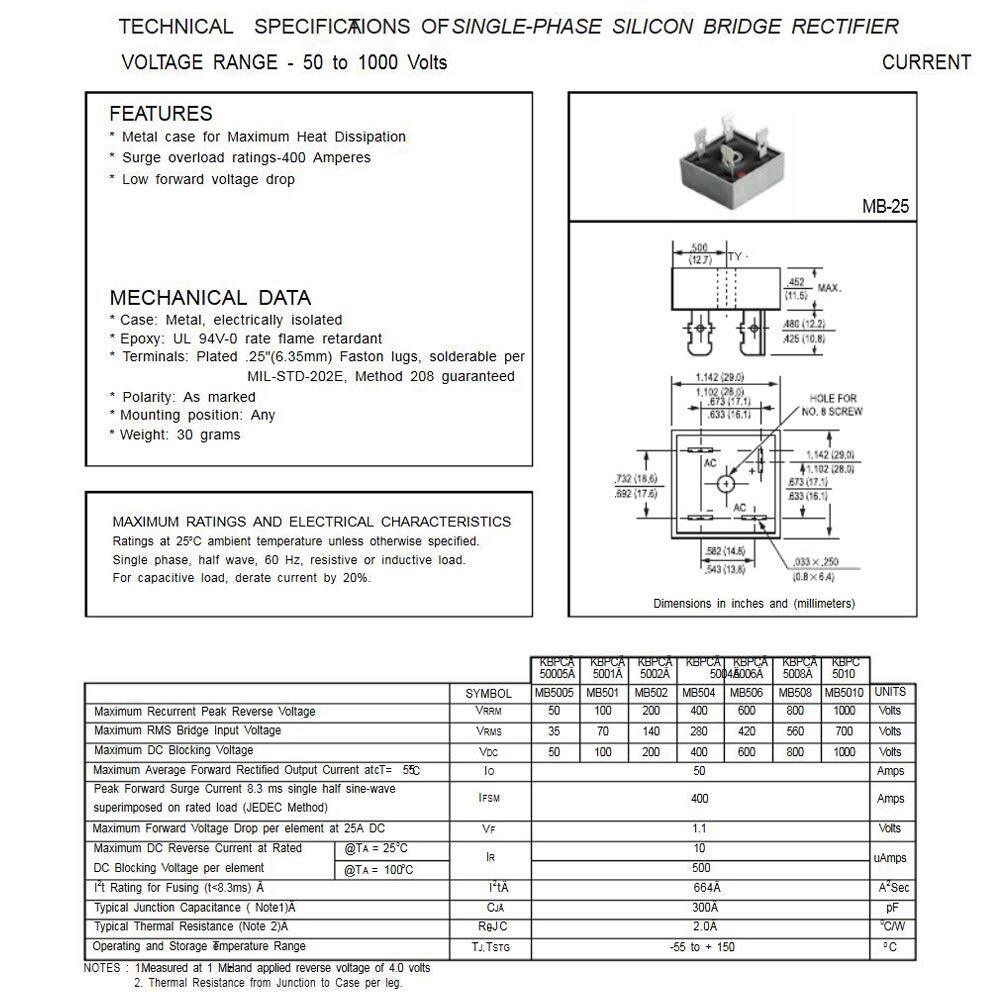

5/10Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010 KBPC5010 Features: UL listed under the Recognized Component Index, file number E142814 The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 Surge overload ratings to 400 amperes Electrically isolated metal case for maximum heat dissipation Case to terminal isolation voltage 2500V Electrical Specifications: Maximum repetitive peak reverse voltage (VRRM): 1000V Maximum RMS bridge input voltage (VRMS): 700V Maximum DC blocking voltage (VDC): 1000V Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A Typical thermal resistance per element (ReJA): 2.5 degrees C/W Operating junction and storage temperature range: -55 to +150 C Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V Maximum DC reverse current at rated TA=25 C (IR): 10uA DC blocking voltage per element TA=125 C (IR): 500uA Mechanical Data: Case: Metal case Terminals: Plated "(6.35mm) Faston Mounting Position: Bolt down with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency Universal 4-way terminals, snap-on, wrap-around, solder or P.C. Board mounting Mounting Torque: 20 in-lb max. Weight: 1.12 Ounces / 32 grams (approx) Package includes: 5PCS/10PCS KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifier Link to online manufacturers datasheet and wiring diagram
