PCE PCE-VT 3900 - Vibration Meter

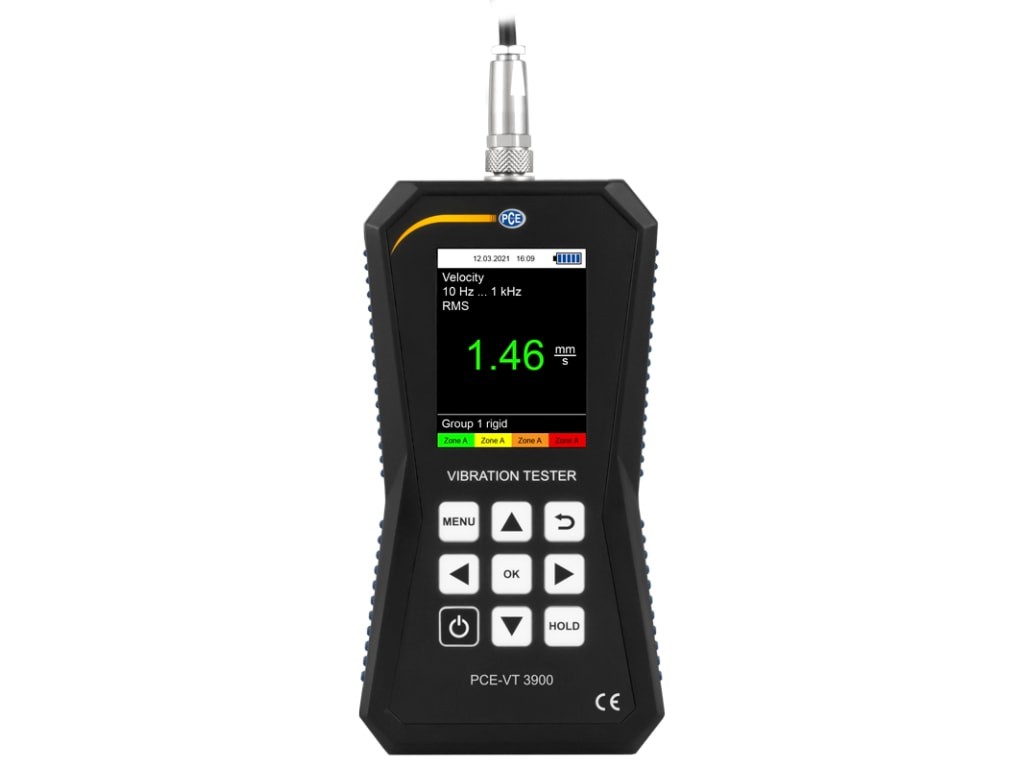

PCE PCE-VT 3900 Measuring range up to 399.9 m/s² / 15744 in/s²FFT analysisRoute measurementManual measured value memory, can be transferred via micro-USB Automatic ISO 10816-3 evaluation Vibration Meter The PCE-VT 3900 is a vibration meter ideal for fast and precise measurement of vibrating parts, machines and systems. This vibration meter uses the external vibration sensor to determine the vibration displacement (measuring range 0.000 to 3.9 mm), the vibration velocity (measuring range 0.00 to 399.9 mm/s) and the vibration acceleration (measuring range 0.0 to 399.9 m/s²). Various measurement parameters are available for the vibration meter, such as RMS, peak, peak-peak and crest factor. The vibration meter is equipped with a mode that allows a measurement to be automatically evaluated according to the limit values ??of ISO 10816-3. The vibration meter analyzes the measured values ??and shows a corresponding good/bad rating on the display. The built-in battery in the vibration measuring device has a capacity of 2500 mAh and can be recharged directly via the built-in micro-USB interface. ? FFT Analysis and Route Measurement Functions In addition to the normal measuring mode, the vibration meter has an FFT mode. In the FFT mode, the frequency spectrum for the measured vibration speed or vibration acceleration is calculated and displayed.The calculated FFT lines are displayed in a graphic representation in an overall view for the entire frequency band and in a zoom view to display the individual lines. An additional function is route measurement. The route measurement is specially designed for recurring measurements at identical measuring points. This enables an orderly measurement of different measuring points. Because of its extensive measuring functions, the PCE-VT 3900 is ideal for maintenance and repair work on machines. Measurement Specifications AccelerationVelocityRotational SpeedDisplacementRange0.0 – 399.9 m/s20.00-399.99mm/s600-50000 RPM0.000-3.Features:Measuring range up to 399.9 m/s² / 15744 in/s²FFT analysisRoute measurementManual measured value memory, can be transferred via micro-USBAutomatic ISO 10816-3 evaluationAbout TEquipmentSales: TEquipmentSales is a well-established, US authorized manufacturer / distributor of major brands of test equipment, interactive whiteboards and educational technology products. We take tremendous pride in having built a company with a reputation for quality products, unsurpassed customer service, and competitive prices. These three components not only account for our past and present, but will, unquestionably, determine our future. Shipping: Please review the shipping tab for each item for any shipping costs and shipping location restrictions. We do not process shipments on weekends and holidays. Local pick up is not available. We do not accept P.O. BOXES. Please provide a physical address. For more information on our shipping policies, please contact us. Payment: Currently all payments must be made directly though PayPal. Return Policy: All return requests must be made within 30 days of receipt. Should your item arrive damaged, please contact us within 3 days of receipt. Photos are greatly appreciated! If your item appears defective, a call to the manufacturer may solve your issue. Please consider troubleshooting prior to making a return request. Customer Service: Feel free to contact us with any of your customer service needs. Our customer service staff is available Monday through Friday from 7:00 AM - 7:00 PM (EST). We are more than a business; we are a family and we would love to hear from YOU!
