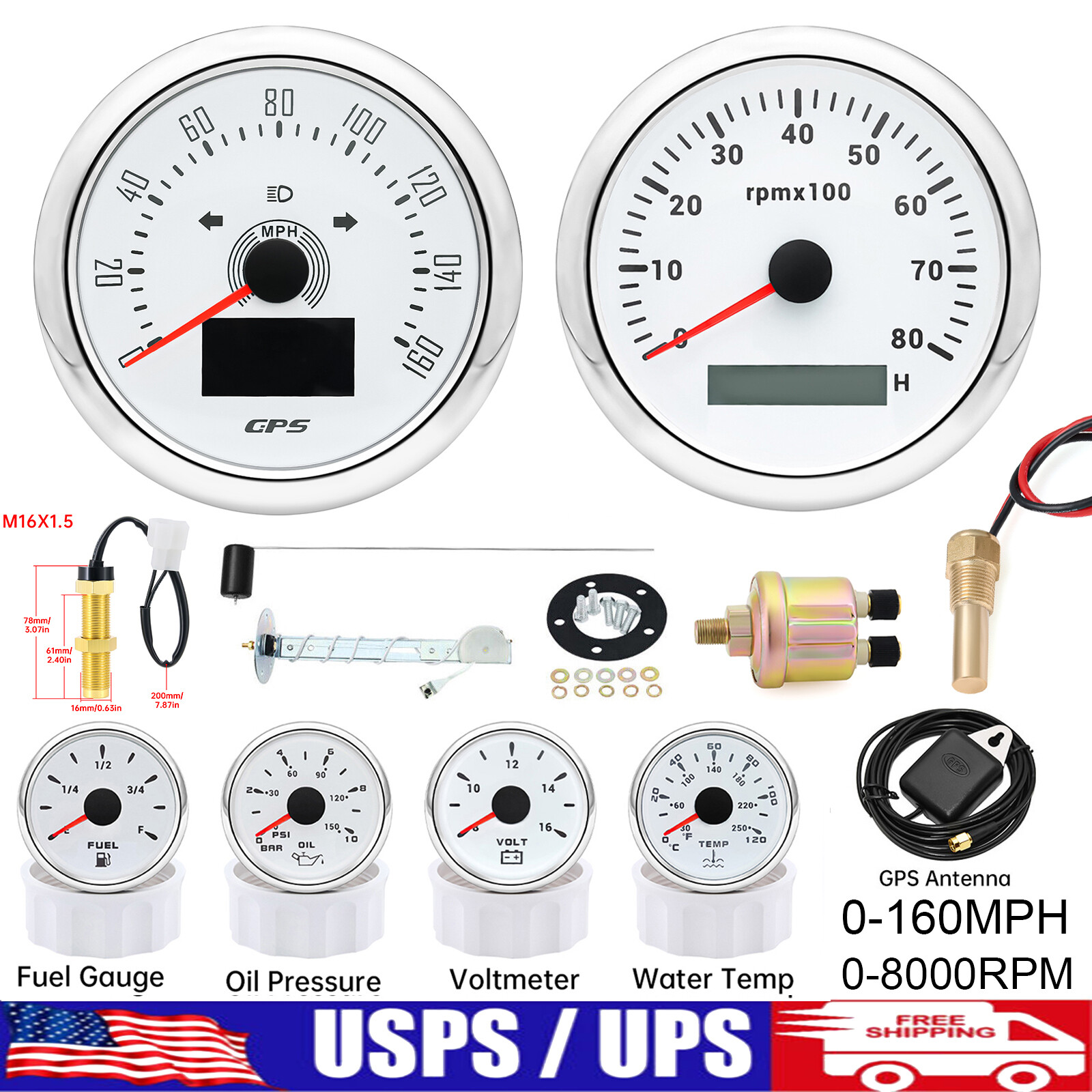

6 Gauge Set 85mm GPS Speedometer 160MPH Tacho 8000RPM&52mm Fuel/Temp/Oil/Volt US
Check the listing for details.
| Location | Houston US |
| Shipping | Free shipping (check listing for details) |
| Seller |
gzmi-81
98.2% positive · 7573 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2025-02-17T04:13:44.000Z |
| OE/OEM Part Number | Set6A-0008US |
| Unit of Measure | Volt, bar, Degrees Celsius, Degrees Farenheit, mph, psi, rpm |
| Maximum Speedometer Value | 0-160 mph |
| Type | Instrument Cluster |
| Features | Speed Warning System |
| Color | White&Silver |
| Manufacturer Part Number | Set6A-0008US |
| Housing | ABS Plastic |
| Lens | Clear Lens |
| Working Voltage | 12/24 V |
| Universal Fitment | Yes |
| Fuel Level Resistance | 240-33OHMS |
| Brand | MAIMEIMI |
| Manufacturer Warranty | 1 Year |
| Needle Color | Red |
| Backlight | 7 Colors LED |
| Speedometer Signal | GPS Based |
| Bezel | 316 Stainless Steel |
| Display Type | Analog, Analog & Digital |
| Item Diameter | 85 mm & 52 mm |
| Items Included | Volt Gauge, Installation Manual, Water Temperature Gauge, Fuel Level Gauge, Lines, Oil Pressure Gauge, Speedometer, Tachometer/Rev Counter, Sending units |
| Material | Plastic, Steel |
| Style | Chromed |
| GPS Gauge | 85mm GPS Speedometer 0-160MPH With COG Trip Gauge |
6 Gauge Set 85mm GPS Speedometer 160MPH Tacho 8000RPM&52mm Fuel/Temp/Oil/Volt US6 Gauge Set With Senders 85mm White GPS Speedometer 0-160MPH Tacho&52mm Fuel/Temp/Oil/Volt US Feature:High-brightness LED backlight.316 stainless steel for long-term use even in acid-base, humid environment.IP67 waterproof and dust-proof grade.With curved glass( with anti-fog function).Suitable for all kinds of vehicle modification.Using stepper motor drive pointer, accurate display of the engine speed, and with the LCD display clear display mileage.Gauges have many kinds backlight
color (red,yellow,orange,green,blue,purple,white),customers can adjust any
color that you likeGPS Speedometer:GPS Speedometer: 0-160MPHTotal mileage: (can't be adjusted )TRIP: Short mileage(can be adjusted )1. Save when power off2. Long press the button to resetCOG: Course Over GroundBacklight: 7 colors backlightOLED LCD screen: working temperature -40℃~+80℃Tachometer Install Diameter: Φ85mm or 3-3/8"Engine hours: 0.0-99999.9HBacklight :7 Color backlightIndicating Range: 0~8000 RPMSignal: PulseFor Tachometer, you can substitute for different unit, please contact us before / after purchase or note on the order.Tachometer: 0-3000rpm/0-6000RPM/7000RPM/8000RPMFuel Level GaugeSizes: 52 mm (2-1/16")Measuring Range: Empty - FullResistance: 240 (E) - 33 (F) ohmsBacklight: 7 ColorsWater Temperature GaugeInstall diameter: Φ52mmIndication range: 0~120℃/30-250℉Input signal: 287.4~22.4 ohmStorage temperature: -40~+85℃Backlight: 7 ColorsOil Pressure GaugeInstall diameter:Φ52mm or 2-1/16"Indication range:0~10bar / 0-150 PSIOperating temperature:-30~+75℃ Storage temperature:-40~+85℃ Backlight: 7 ColorsVolt GaugeSizes: 52 mm (2-1/16")Measuring Range: 8 - 16 (V)Backlight: 7 ColorsPackage Includes:1X 85MM GPS Speedometer Gauge1X GPS Antenna1X 85MM Tachometer1X 52MM Voltmeter1X 52MM Fuel level gauge1X 52MM Water temp gauge1X 52MM Oil pressure gauge 1x Fuel level Sending Units (240-33ohms)1X Oil pressure Sensor (1/8NPT)1X water temp Sensor (1/8NPT) 1X Tachometer Sensor(M16*1.5)Installation Instruction
