UNIT Digital Clamp Meter Auto Range Pliers Multimeter AC Amp Diode Ohm Tester
Check the listing for details.
| Location | Shenzhen CN |
| Shipping | Free shipping (check listing for details) |
| Seller |
mrtools4test
99.6% positive · 3680 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2022-05-20T08:08:08.000Z |
| Color | UT202 |
| Origin | CN(Origin) |
| clamp multimeter | digital multimeter amper clamp meter |
| DC Voltage Range | 600V |
| Measuring Capacitance Range | 100uF |
| Maximum Input Voltage | 600V |
| Number of Counts | 2000 |
| Dimensions | 210*75.6*30mm |
| Measuring Voltage Range | 600V |
| DIY Supplies | ELECTRICAL |
| Model Number | Digital Clamp Meter UT200 |
| Weight | 260g |
| Certification | CE |
| Measuring Resistance Range | 20Mohm |
| Brand | Unit |
| Measurement Category | CAT III |
| Form Factor | Handheld |
| Current Range | 400A |
| Test/Measurement Functions | AC Current, AC Voltage, DC Current, Resistance, Temperature |
| AC Voltage Range | 600v |
| Features | Auto Power Off, Auto-Ranging, Battery Door Access, Clamp, Data Hold, Over Range Protection |
| Measuring Current Range | 400A(UT201/UT202/UT203)600A(UT202A/UT204A) |
| Resistance Range | 20MΩ |
| Display | Digital |

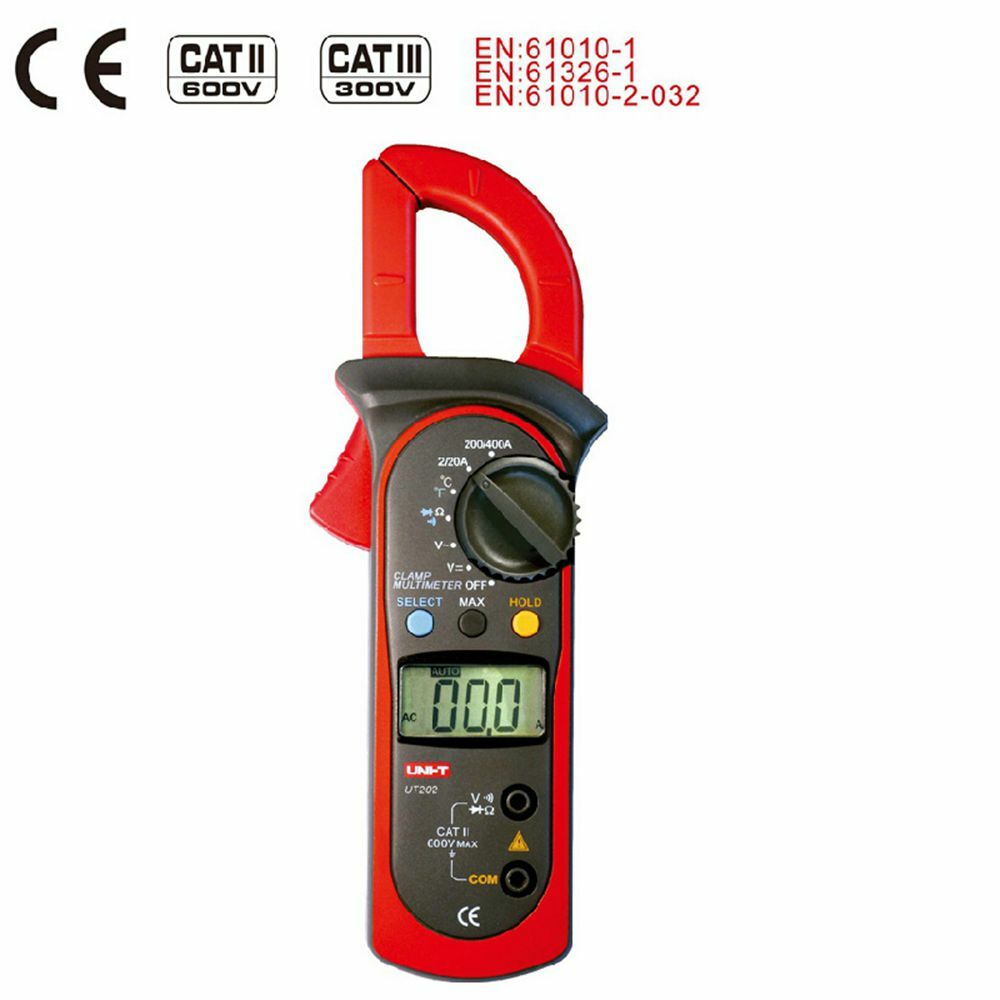

UNI-T Digital Clamp Meter AC Current Clamp Multimeter Tester Ammeter Ohmmeter This Series is UNI-T'S entry level digital clamp meter. It is a great choice for measuring residential and commercial power wires. UT202 come with point contact temperature probe,perfect for working in HVAC. Features Auto Range Data hold/auto power off Max mode(202/202A) Point contact temperature probe(ONLY FOR UT202) 3 times/s sampling rate Low battery/over-range indication and auto polarity display Parameter Feature Range Accurancy Range Accurancy Model UT201 UT202 UT202A UT203 UT204 UT204A AC Current 2A/20A/200A/400A ±(1%+9) ±(1%+9) 40A/400A ±(2.5%+5) ±(2.5%+5) 20A/200A/600A ±(1.5%+5) 40A/600A ±(2.5%+5) DC Current / 40A/400A ±(2%+3) ±(2%+3) 40A/600A ±(2%+5) AC Voltage 2V/20V/200V/600V ±(1.2%+5) ±(1.2%+5) ±(1.2%+5) 4V/40V/400V/600V ±(1.0%+5) ±(1.0%+5) ±(1.0%+5) DC Voltage 200mV/2V/20V/200V/600V ±(0.8%+1) ±(0.8%+1) ±(0.8%+1) 400mV/4V/40V/400V/600V ±(0.8%+1) ±(0.8%+1) ±(0.8%+1) Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1.0%+2) ±(1.0%+2) ±(1.0%+2) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2) ±(1.0%+2) ±(1.0%+2) Capacitance 4nF/40nF/400nF/4μF/100μF ±(4%+3) Celsius temperature -40-1000°C ±(1.0%+7) -40-1000°C ±2.5%+3 Fahrenheit -40~1832°F ±(1.0%+8) -40~1832°F Frequency 10Hz-10MHz ±(1.0%+3) ±(1.0%+3) Continutity test √ √ √ √ √ √ Display Counts 1999 counts 1999 counts 1999 counts 3999 counts 3999 counts 3999 counts Auto power off About 15min √ √ √ √ √ Low voltage indication √ √ √ √ √ √ Data Hold √ √ √ √ √ √ Auto Range √ √ √ √ √ √ Diode Test √ √ √ √ √ √ Input Impedance for DCV Around 10MΩ √ √ √ √ √ √ Note Please: Shipping by Air, battery is not included
