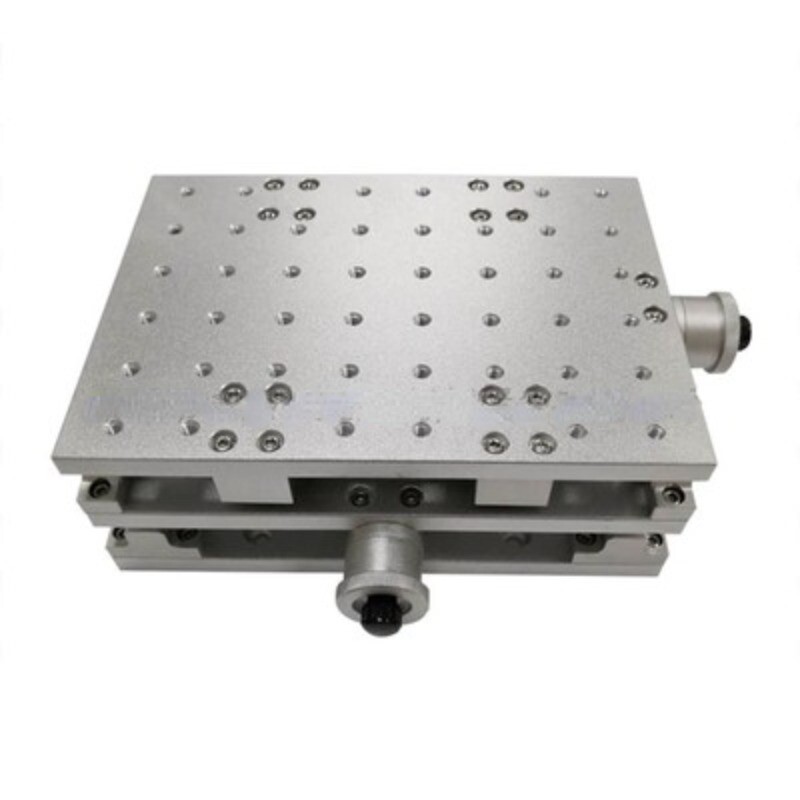

Portable 3D Lift and Pan Table Silver 150x210 Optical Platform
This portable 3D lift and pan table optical platform in silver is suitable for laboratory and optical setup tasks that require adjustable positioning. The listing title notes a 150x210 size; check the listing for details on materials, load capacity, travel range, and included accessories. Condition is new, and it ships with free shipping. Review the product page for compatibility with your existing equipment and any mounting or measurement information before purchase.
| Location | China CN |
| Shipping | Free shipping (check listing for details) |
| Seller |
foshanhongyangdaltd
100.0% positive · 39 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2024-07-25T08:08:41.000Z |
| Color | Small 2D workbench |
| Origin | Mainland China |
| Brand | Unbranded |
| Type | Three-dimensional lifting and moving table |
| Certification | CE |
One-dimensional worktable Overall dimensions: 150x210X87mm. Worktable panel: 150X210mm (table m5 threaded hole pitch 25*25mm) Table travel: Z = 115MM (height 87mm, height 202mm) Mounting holes: M4, M5, M6 can be installed Mounting hole spacing 1: M4 overbore:130X136MM. Mounting hole spacing 2: M5 perforation:60X136MM; Installation hole spacing 3: M6 hole: 100X125MM;. Table weight: 4kg Small 2D workbench Size: 210*150*75 Table top: M5 threaded hole (25*25mm) Table travel: 70x50 Installation size: 125*100mm Transmission mode: manual Net weight: 4KG Large 2D workbench Size: 300x220x90mm Table top: m6 threaded hole (25*25mm) Stroke: 140x80mm Installation size: 250*150mm Net weight of table: 8KG Three-dimensional worktable Overall dimension: 150x210X150mm. Worktable panel: 150X210mm Height: 270mm,Height: 150mm. Table lifting stroke: 70x50X120. Mounting holes: M4, M5, M6 can be installed Mounting hole spacing 1: M4 overbore:130X136MM. Mounting hole spacing 2: M5 hole:60X136MM. Mounting hole spacing 3: M6 hole:100X125MM; Fixed position hole:M5 25X25mm. Table weight: 8kg
