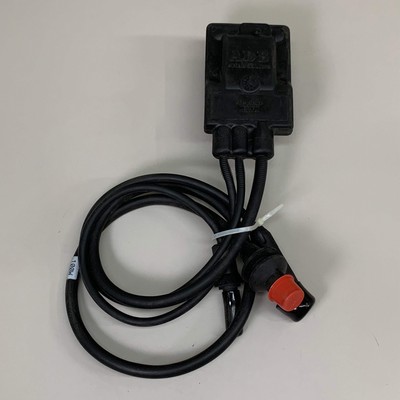

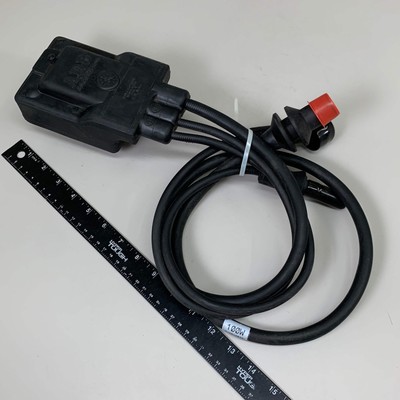

ADB Airfield Solutions Isolation Transformer 100W 60HZ 6.6/6.6A L-830-4 1ST10006

ADB Airfield Solutions Isolation Transformer 100W 60HZ 6.6/6.6A L-830-4 1ST1000666010 ADB Airfield Solutions Series Isolation Transformer Condition: Like New Wattage: 100 Hz: 60 Output Amps: 6.6 Input Amps: 6.6 Color: Black Model: L-830-4 1ST1000666010 Series isolation transformers are used to isolate high operating voltages for constant current lamps in series circuits. FEATURES These transformers are made of flat laminations in an ETI formation for 6.6A and 20A applications. Encapsulated in synthetic rubber for durability and dielectric strength. Waterproof assembly suitable for above ground installation or direct burial. Two Primary Leads: terminated with molded L-823 Style 2 (male) and Style 9 (female) connectors. Standard length 24", 8/1 cable. Rated to 25A and 5,000V. One Secondary Lead: terminated with a molded L-823 Style 8 (female) connector, “ball-type”. Optional Style 7 (female) connector, “straight design” for use with signs and extension cords. Standard length 48", 12/2 600V cable. Rated to 20A and 600V. Optional ground (earthing) lead (1). 36" long AWG 600V ground lead, terminated in a ring terminal. To order add the letter "G" to the model number. All transformers undergo 100% quality testing before they are shipped: visual inspection, HIPOT after heating and 12 hour soaking (15,000V primary, 5,000V secondary), and ratio testing. ADB Airfield Solutions Isolation Transformer 100W 60HZ 6.6/6.6A L-830-4 1ST1000666010 ADB Airfield Solutions Series Isolation Transformer Condition: Like New Wattage: 100 Hz: 60 Output Amps: 6.6 Input Amps: 6.6 Color: Black Model: L-830-4 1ST1000666010 Series isolation transformers are uséd to isolate high operating voltages for constant current lamps in series circuits. FEATURES These transformers are made of flat laminations in an ETI formation for 6.6A and 20A applications. Encapsulated in synthetic rubber for durability and dielectric strength. Waterproof assembly suitable for above ground installation or direct burial. Two Primary Leads: terminated with molded L-823 Style 2 (male) and Style 9 (female) connectors. Standard length 24", 8/1 cable. Rated to 25A and 5,000V. One Secondary Lead: terminated with a molded L-823 Style 8 (female) connector, “ball-type”. Optional Style 7 (female) connector, “straight design” for use with signs and extension cords. Standard length 48", 12/2 600V cable. Rated to 20A and 600V. Optional ground (earthing) lead (1). 36" long AWG 600V ground lead, terminated in a ring terminal. To order add the letter "G" to the model number. All transformers undergo 100% quality testing before they are shipped: visual inspection, HIPOT after heating and 12 hour soaking (15,000V primary, 5,000V secondary), and ratio testing. &times &times &times &times &times &times &times &times &times &times &times &times &times &times &times Buy now and save! Shipping info Click the Shipping & Payments tab above the listing description for more info Click the Shipping & Payments tab above the listing description for more info! Additional delivery notes PICK UP OPTION Our items are available for pick-up. Pick up procedure is as follows: Purchase the item through eBay Email us to coordinate pickup PICK UP OPTION Our items are available for pick-up. Pick up procedure is as follows: Purchase the item through eBay Email us to coordinate pickup PICK UP OPTION Sorry, our items are NOT available for pick-up. --> PAYMENT Immediate payment is required upon selecting "Buy It Now" or upon checking out through the cart. We accept payment via U.S. PayPal accounts and all Major Credit Cards, Debit Cards & Google Pay. We are legally required to collect sales tax in those states and localities where we maintain a physical presence (nexus). The applicable amount of sales tax charged to an order will be calculated based on the shipment destination's state and local sales tax laws. Thank you for shopping with us on eBay! Additional Information No additional information at this time Ask seller a question You might also like LYNWOOD "City Of Lynwood Est. 1921" Baseball Hat One Size Blue (New) PLUM QUEEN Classic Genuine Leather Handbag Women's Sz S Black (New) Ball Joint HD-PE 62-15 02-81007 Q9XYG 6514165 (New) ABC SUPPLY CO Camo American Flag Hat Embroidered Sz Adjustable CWF-305 (New) Contact To contact our Customer Service Team, simply click the button here and our Customer Service team will be happy to assist. Ask seller a question © PayWut Shipping & Payments Click the Shipping & Payments tab above the listing description for more info Payment Accepted Payment Methods Immediate payment is required upon selecting "Buy It Now" or upon checking out through the cart. We accept payment via U.S. PayPal accounts and all Major Credit Cards, Debit Cards & Google Pay. We are legally required to collect sales tax in those states and localities where we maintain a physical presence (nexus). The applicable amount of sales tax charged to an order will be calculated based on the shipment destination's state and local sales tax laws. Thank you for shopping with us on eBay! Returns Returns are accepted Items must be returned within 30 days of the auction ending Buyer will pay for return shipping. eBay integration by
