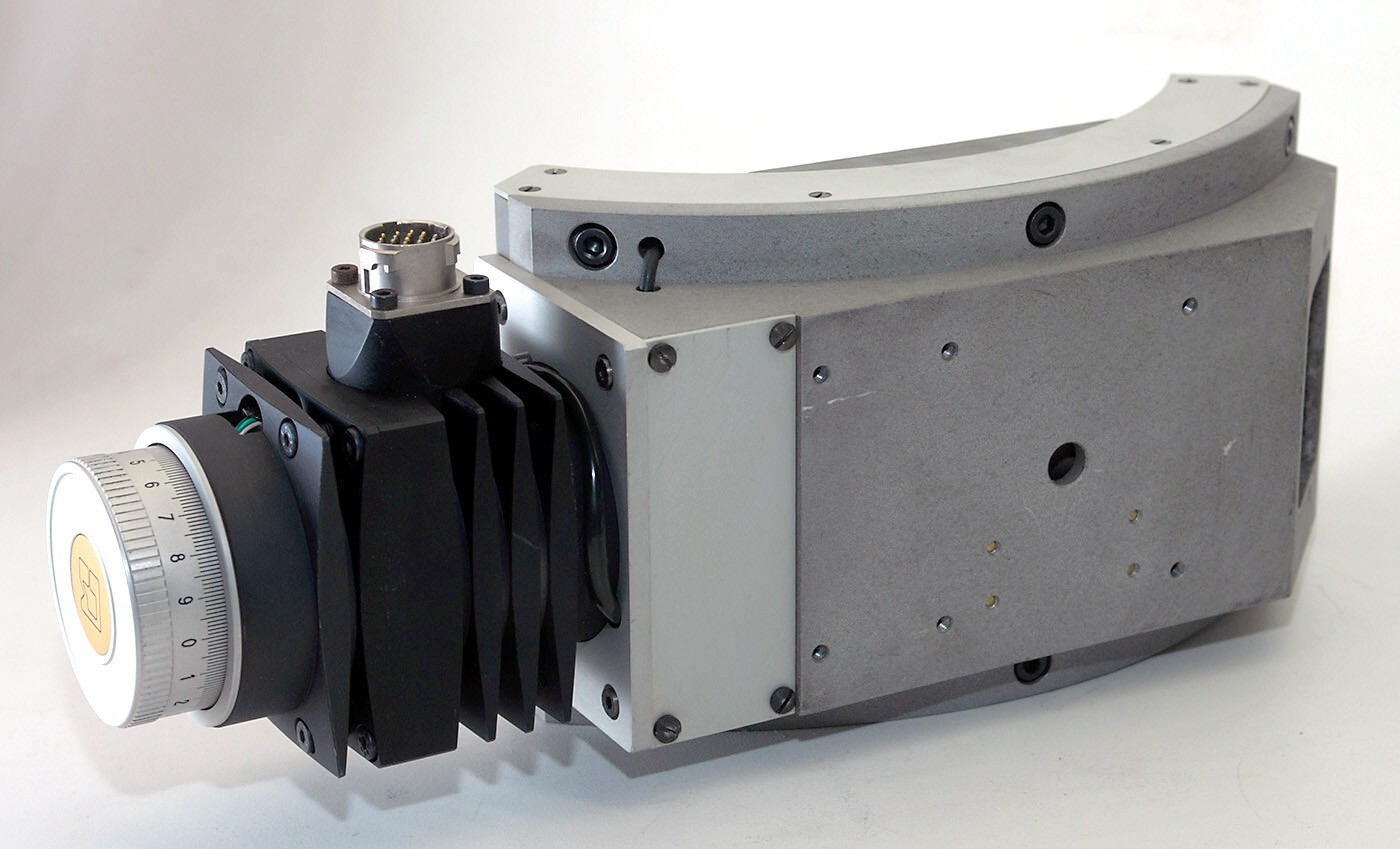

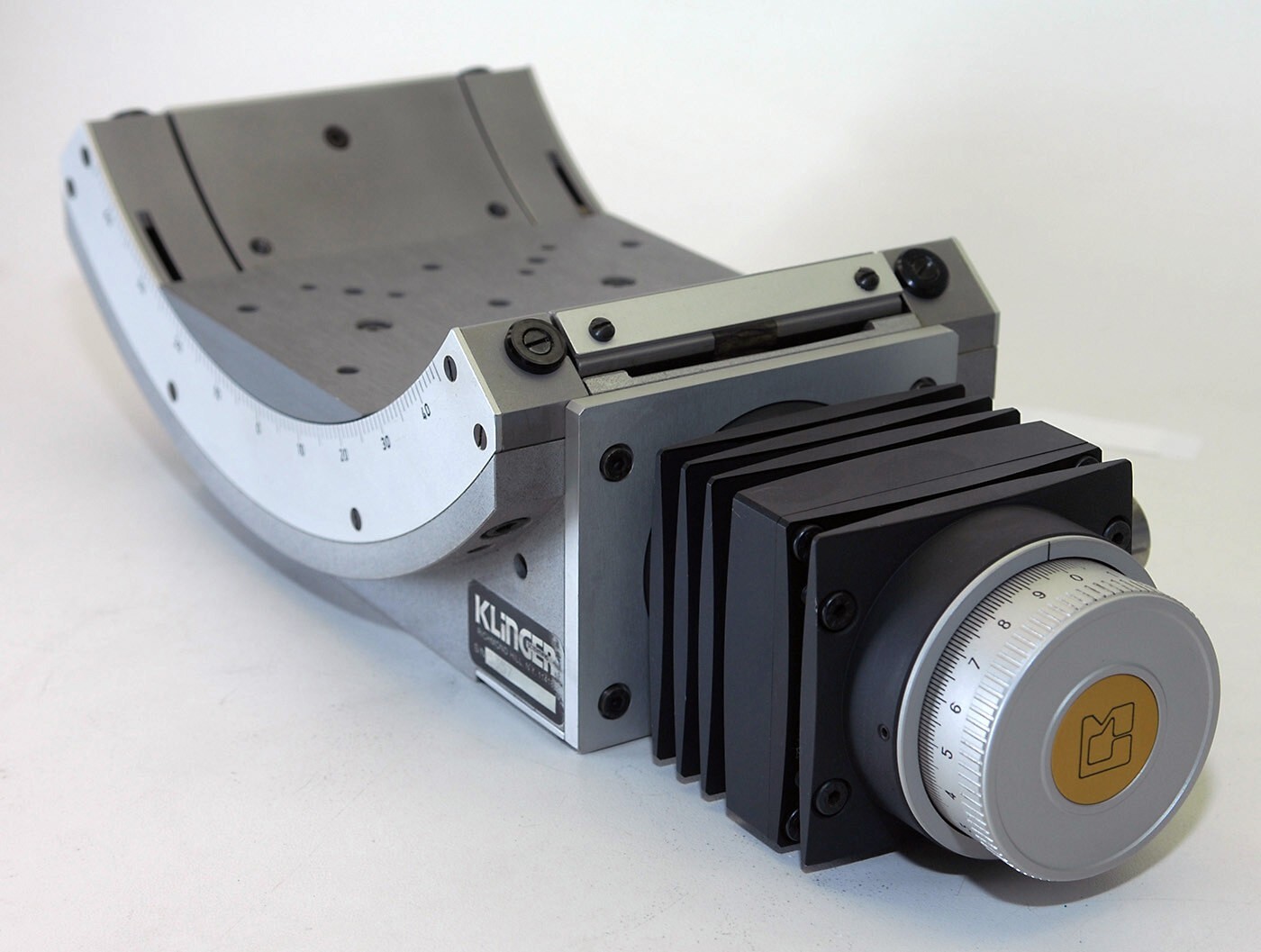

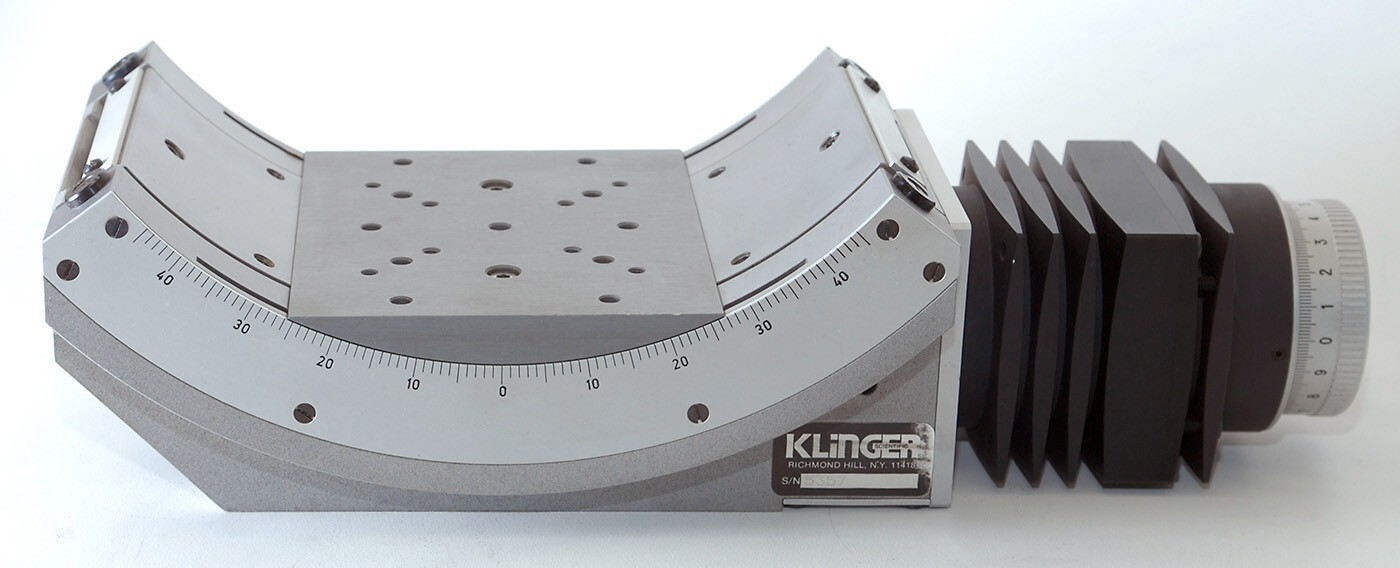

KLINGER SCIENTIFIC / NEWPORT CORP. BG120 GONIOMETER +/- 45 Degrees 120 MM WIDE

KLINGER SCIENTIFIC / NEWPORT CORPORATION BG-120 PP GONIOMETERKlinger made two models of this goniometer, 1 deg./100 ( 354-511 ) and 1 deg/1000 ( 354-512 ). The difference is in the encoder. I don't know which model this is, there are no model no. or other external markings, except for the

serial number. Assume it's the 1 deg/100 model.Both models have the same motor and gearing so either should be capable of 1 deg/1000 but the confidence level may be less without encoder feedback.120 mm wide ( ~ 4.74 inches )+/- 45 degrees travelThe rotation axis is 100 mm. The center of rotation is a line 100 mm above the center of the goiniometer.Supports 20 KgNEMA 23

size stepper motor with encoder and limit switchesThere's a graduated knob on the motor shaft for manual operation.I'm including a new Jaeger mating connector, like the one seen in the last photo, to facilitate your cable build. You're connector will be new, no cable attached.Net weigh is about 13.1 poundsSize: 312 x 120 x 80 mm ( L x W x H ). Subtracting 105 mm motor length makes the stage alone 207 mm long.Check the photos and description carefully to see exactly what you're getting. The shipping cost shown includes shipping charges, packing materials, insurance, and in this case a delivery confirmation fee. An adult signature will be required.There's a FedEx 1 - 2 day option if you'er in a hurry. ------------------------------------------------------------I'll be listing a number of lenses, lighting, camera port options, and other
