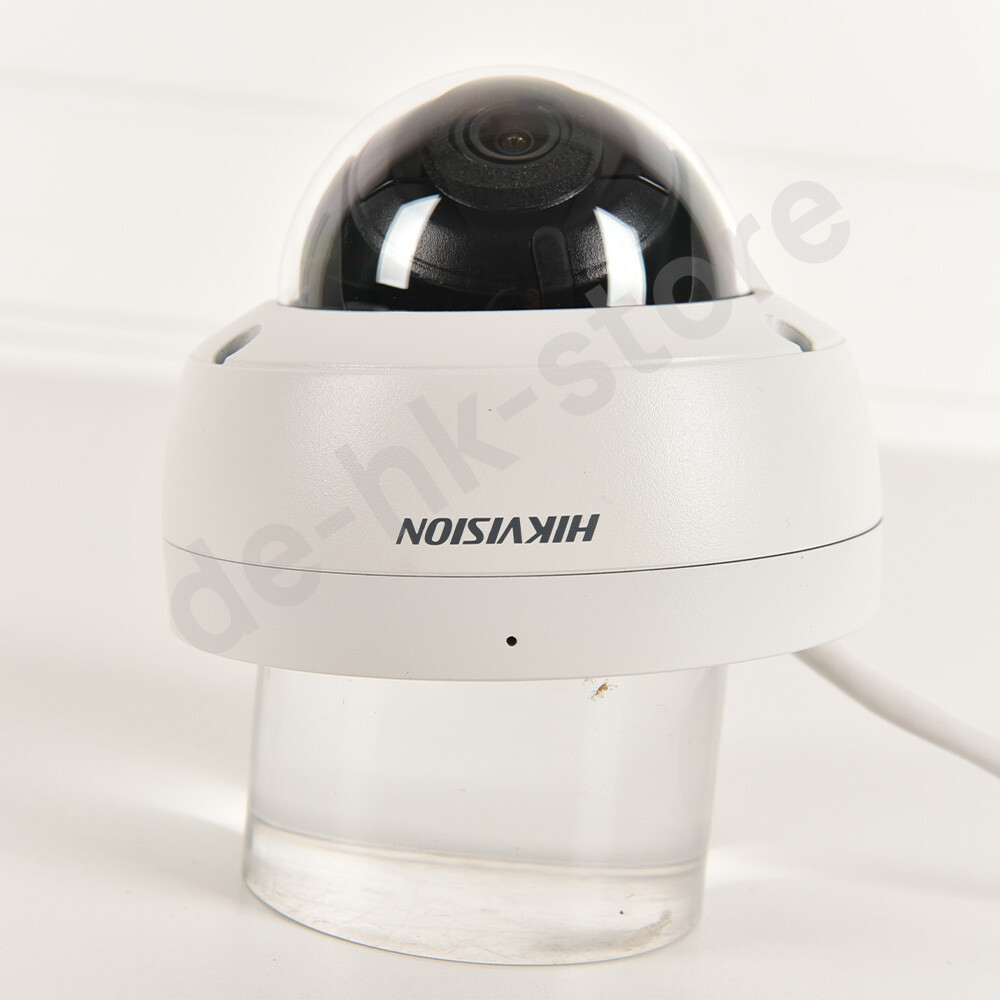

Hikvision 4MP Dome IP Camera Built-in Mic AcuSense IR30m PoE WDR DS-2CD2143G2-IU

Hikvision 4MP Dome IP Camera Built-in Mic AcuSense IR30m PoE WDR DS-2CD2143G2-IUNote:1. Original Hikvision worldwide English version and upgradeable.2. 2.8mm Lens as default. Features:High quality imaging with 4 MP resolutionClear imaging against strong backlight due to 120 dB WDR technologyEfficient H.265+ compression technologyBuilt-in microphone for real-time audio securityWater and dust resistant (IP67) and vandal resistant (IK10)Focus on human and vehicle targets classification based on deep learning Specifications:CameraImage Sensor1/3" Progressive Scan CMOSMax. Resolution2688 × 1520Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR onShutter Time1/3 s to 1/100,000 sDay & NightIR cut filterAngle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°LensFocal Length & FOV2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°Lens MountM12Iris TypeFixedApertureF1.6DORIDORI2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 mIlluminatorSupplement Light TypeIRSupplement Light RangeUp to 30 mSmart Supplement LightYesIR Wavelength850 nmVideoMain Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)Video CompressionMain stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264Video Bit Rate32 Kbps to 8 MbpsH.264 TypeBaseline Profile/Main Profile/High ProfileH.265 TypeMain ProfileBit Rate ControlCBR/VBRScalable Video Coding (SVC)YesRegion Of Interest (ROI)1 fixed region for main stream and sub-streamAudioAudio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LCAudio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzEnvironment Noise FilteringYesNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSocketsSimultaneous Live ViewUp to 6 channelsAPIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDKUser/HostUp to 32 users. 3 user levels: administrator, operator and userSecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)ClientiVMS-4200, Hik-Connect, Hik-CentralWeb BrowserPlug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ImageImage Parameters SwitchYesImage SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserDay/Night SwitchDay, Night, Auto, ScheduleWide Dynamic Range (WDR)120 dBSNR≥ 52 dBImage EnhancementBLC, HLC, 3D DNRInterfaceEthernet Interface1 RJ45 10M/100M self-adaptive Ethernet portOn-Board StorageBuilt-in microSD, up to 512 GBBuilt-In MicrophoneYesReset KeyYesEventBasic EventMotion detection (human and vehicle targets classification), video tampering alarm, exceptionSmart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))Face detectionLinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, EmailGeneralPower12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 WDimensionØ121.4 × 92.2 mm (Ø4.8″ × 3.7″)Package Dimension150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)WeightApprox. 570 g (1.3 lb.)With Package WeightApprox. 806 g (1.8 lb.)Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Language33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianGeneral FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counterApprovalEMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)About usDelivery detailsReturn and WarranryAbout itemsContact usAbout us1. de-hk-store is the largest domestic agent of Hikvision and Dahua, more than 10 years experiences in Surveillance B2C market. if you are a wholesaler or bulk purchasing, we will provide you with the most favorable price and the most perfect service!2. All the products we sell are 100% from Dahua and Hikvision, including original and OEM version. All products are directly from Dahua and Hikvision factory, please rest assured of the quality.3. Welcome to visit our store and contact us for bulk order!Delivery detailsUsually Most of orders will be ship out in 1 working days.Return and Warranry1. Please read the entire product description before bidding.2. We cannot be held responsible if you fail to read the description.3. We will be more than happy to answer any questions promptly.4. Ordered item and shipping address can’t be changed after item shipped.5. We provide 3 year warranty,For items over 3 year, repair charge is required.6. All products are checked and packed in good condition before dispatch.7. If anything goes wrong, please contact us within 14 days of receipt.8. We are not responsible for problems caused by customs.About items1. We only offer High quality product, and with 7*12hours aftersale service, and offer free 0nline technical support.2. If you want to order more items or you are wholesaler, you can make best offer with us, we will provide you best price.Contact usIf there is any question , welcome to contact with us, we offer FREE technical support ALL life!
