Dental Brushless LED Electric Micro Motor / 4:1 Surgical Saw Straight Handpiece

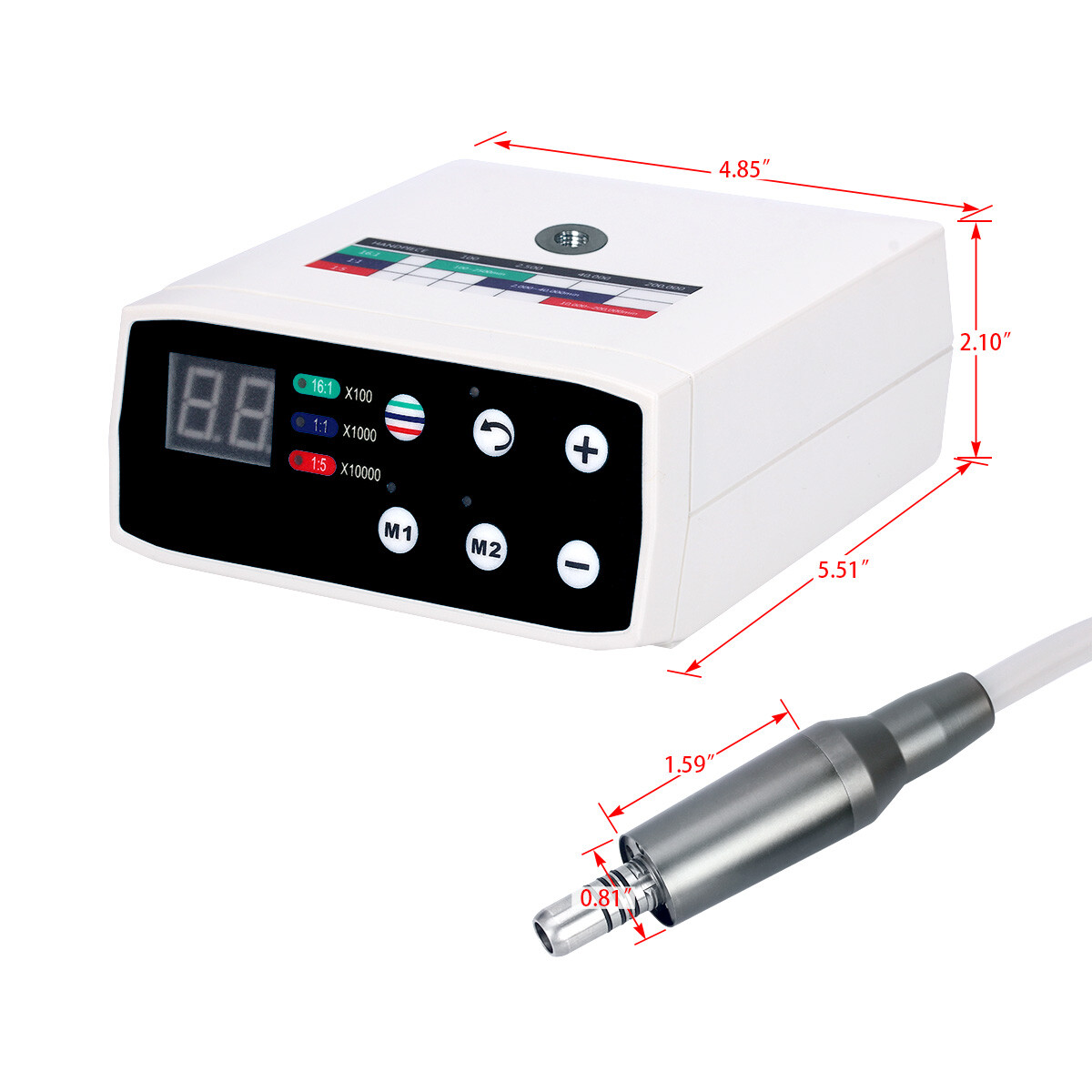

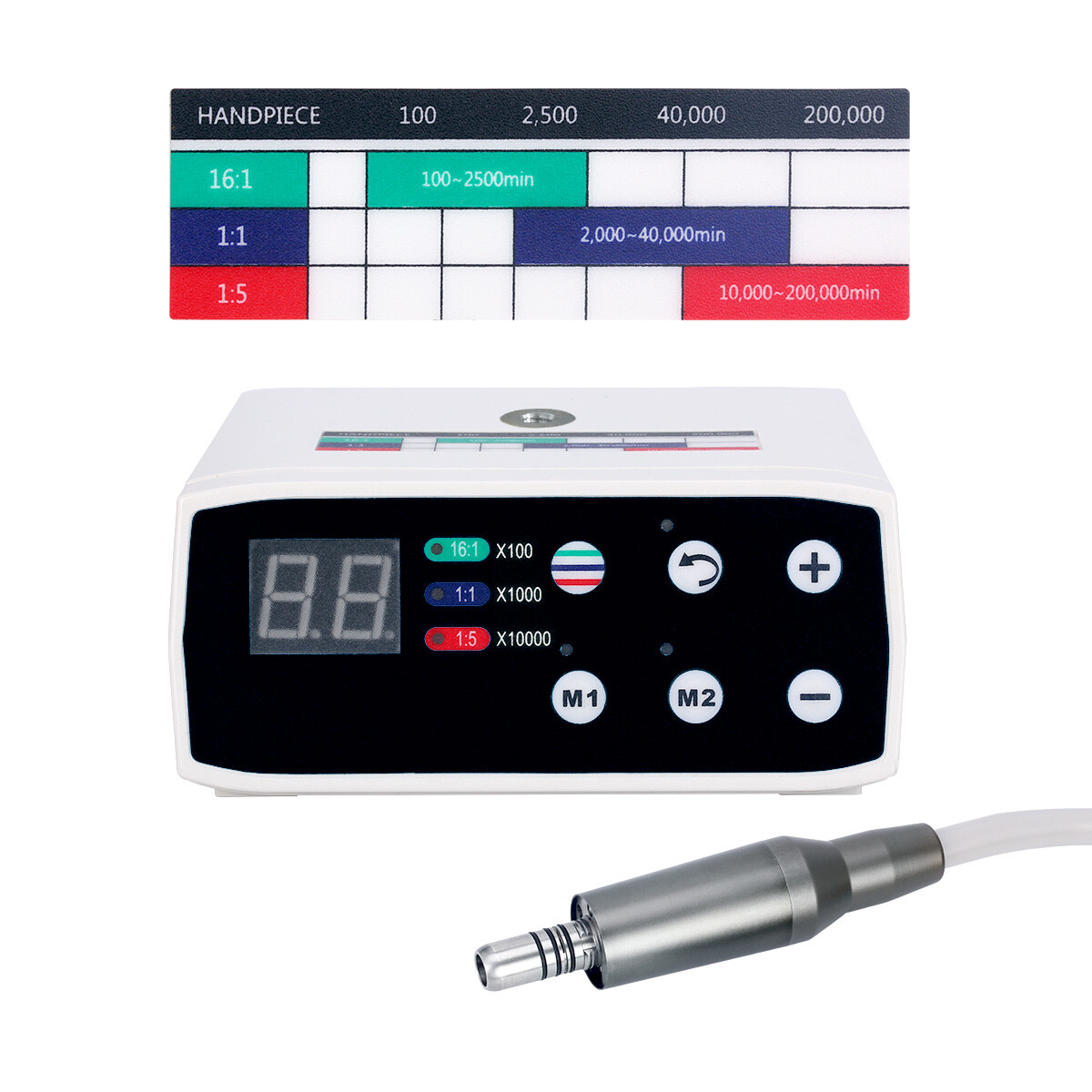

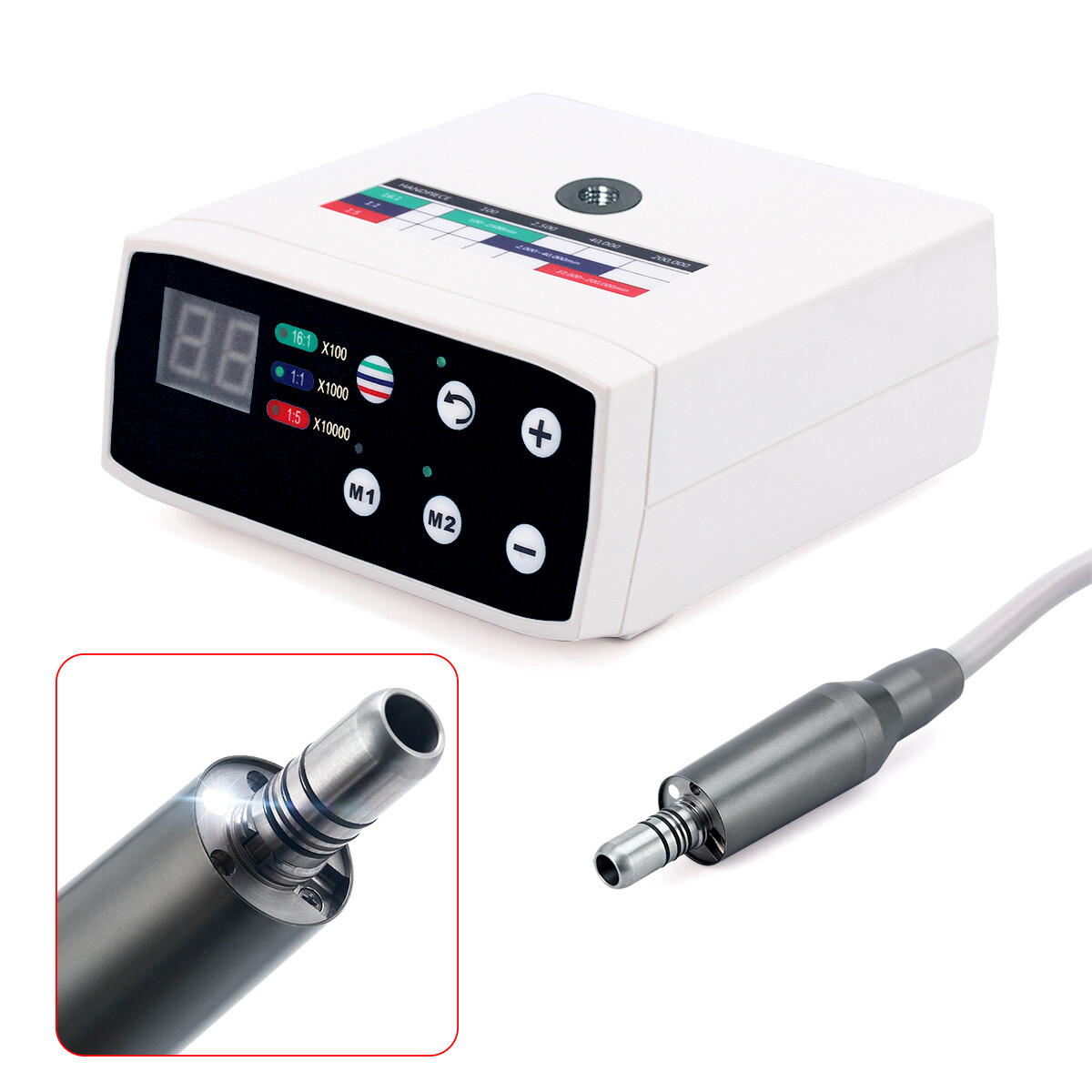

Micro Motor Technology : Type of motor: brushless motor Internal Spray Three optional settings(1:1/1:5/16:1) Rotation: 2,000-40,000rpm 2000rpm-40000rpm(1:1) 100rpm-2500rpm(16:1) 10000rpm-200000rpm(1:5) Torque: 3.4Ncm Power input: AC 100-240V Size of motor:φ22xL71 mm Weight of motor: 71g Noise level: <60dB Illuminate: LED(white light) Size of control device: L150.00 x W128.00 x H55.00mm Total weight: 1.25kg Connector: ISO-E type Packing list: Micromotor: ---------------------------1 pc Control unit: ---------------------------1 pc Micromotor tube:---------------------1 pc Power adaptor:------------------------1 pc Operation manual:--------------------1 pc 3.2:1-R 1.8mm Up &Down Reciprocation Description: 1. High cutting performance,fast and powerful 2. For osteotomy or bone removal 3. Low vibration 4. Stainless steel body,more durable 5. The saw blade is replaceable 6. The handpiece can be disassembled for thorough cleaning Technical: 1. Transmission ratio:3.2:1 2. Strokes：1.8mm 3. Frequency (strokes/min.):12300 4. Max drive speed 40,000min-1 5. Up and down reciprocation 6. External water spray 7. 135°C Autoclavable 8. Connect: ISO E-Type motor 9. Blade thickness 0.4 mm 10. Blade length: 15mm、20mm、30mm 11. Handpiece weight:92g(3.2oz) 12. Warranty:one year Package: Handpiece*1 Saw blade*3 Wrench*1 Tube*1 English operation manual*1 4:1-S 3° Back & Forth Reciprocation Description: 1. High cutting performance,fast and powerful 2. For osteotomy or bone removal 3. Low vibration 4. Stainless steel body,more durable 5. The saw blade is replaceable 6. The handpiece can be disassembled for thorough cleaning Technical: 1. Transmission ratio:4:1 2. Angles: 3° 3. Frequency (strokes/min.):12300 4. Max drive speed 40,000min-1 5. Sagittal,back and forth reciprocation 6. External water spray 7. 135°C Autoclavable 8. Connect: ISO E-Type motor 9. Blade thickness 0.4 mm 10. Blade size:6*25mm、10*25mm 11. Handpiece weight:96g（3.4oz） 12. Warranty:one year Package: Handpiece*1 Saw blade*2 Wrench*1 Tube*1 4:1-O 17° Left & Right Reciprocation Description: 7. High cutting performance,fast and powerful 8. For osteotomy or bone removal 9. Low vibration 10. Stainless steel body,more durable 11. The saw blade is replaceable 12. The handpiece can be disassembled for thorough cleaning Technical: 13. Transmission ratio:4:1 14. Angles: 17° 15. Frequency (strokes/min.):12300 16. Max drive speed 40,000min-1 17. Oscillating,left and right reciprocation 18. External water spray 19. 135°C Autoclavable 20. Connect: ISO E-Type motor 21. Blade thickness 0.4 mm 22. Blade size:10.5* 6mm H：3mm 15.5* 7 mm H：3mm 23. Handpiece weight:95g（3.4oz） 24. Warranty:one year Package: Handpiece*1 Saw blade*2 Wrench*2 Tube*1 English operation manual*1 FDA Statement The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, you can bid on this item only if you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. Seller name:dentalbaistra City,State:SHENZHEN,China Telephone number:0755-23998165 K181691Trade/Device Name: High-speed air turbine handpiece / Low-speed air turbine handpieceRegulation Number: 21 CFR 872.4200Regulation Name: Dental Handpiece and AccessoriesRegulatory Class: Class I, reservedProduct Code: EFB, EGSDated: April 9, 2020Received: April 27, 2020
