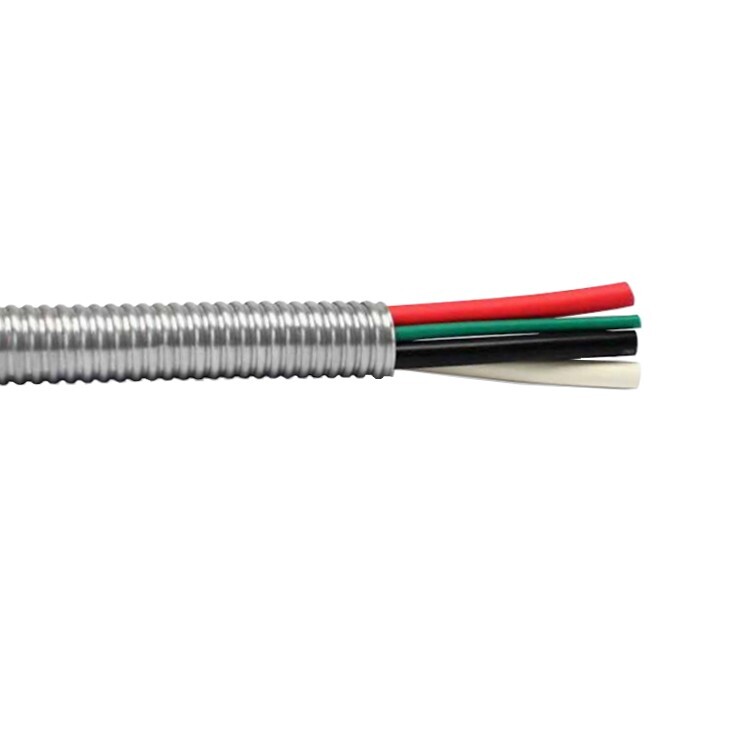

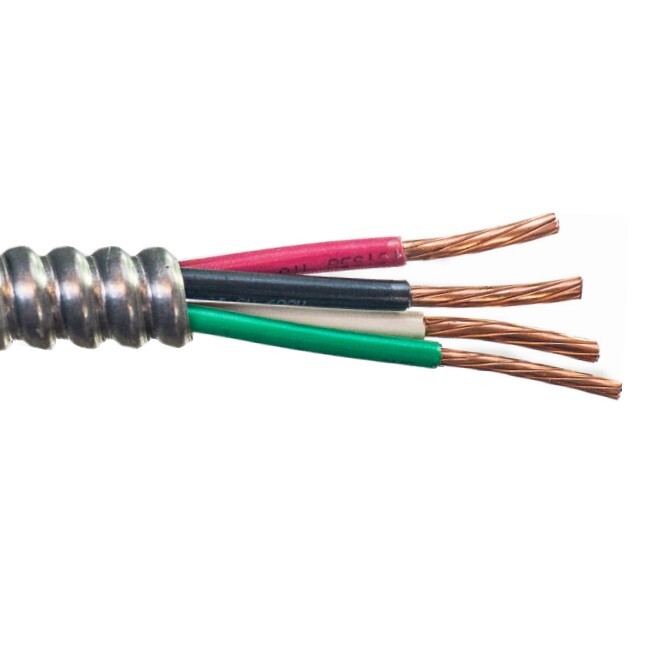

50' 2/3 Type MC Copper Metal Clad Cable With Ground Aluminum Armor 600V
Check the listing for details.
| Location | Carlyle US |
| Shipping | Free shipping (check listing for details) |
| Seller |
bobdraper85
99.7% positive · 13212 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2020-09-10T06:34:57.000Z |
| Country/Region of Manufacture | United States |
| MPN | MCST23 |
| Conductor Material | Copper |
| Brand | Nassau |
| Item Length | 50 ft |
| Wire Gauge | 2 AWG (6.5 mm) |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Wire Style | Stranded |
| Voltage | 600 V |
| Application | Feeder and Distribution Circuits in Commercial, Industrial, Institutional and Multi-Residential Applications |
| Number of Conductors | 3 + 1 Ground |
HomeView All ListingsStore PoliciesNewsletterFeedbackContact Us Store Categories Aluminum URD Cable Aluminum Service Drop Cable Aluminum XHHW-2 Wire Aluminum XLP USE-2 Aluminum SER Alpha Wire Belden Cable Bus Drop Cable Copper SER Copper THHN THWN-2 Wire Copper XHHW-2 Wire Copper XLP USE-2 Diesel Locomotive Cable Festoon Cable Fire Alarm Cable High Temperature Wire Jumper Cable Type G & GG-C Thermostat Cable SOOW Power Cable NM-B Wire Security Fire Alarm Cable SIS Switchboard Wire Solar Photovoltaic PV Wire Stage Lighting Cable Submersible Pump Cable Tray Cable Type W Power Cable UF-B Cable Welding Cable 50' 2/3 Type MC Copper Metal Clad Cable With Ground Aluminum Armor 600V Click Thumbnails to Enlarge APPLICATION • 2/3 MC Cable is suitable for use in branch, feeder and distribution circuits in commercial, industrial, institutional and multi residential applications. MC Cable is approved for power, lighting, control and signal circuits. MC Cable can be used in cable tray and other approved raceways and can be exposed or concealed. MC Cable can be used in places of assembly of 100 people or more, such as studios and theaters. Voltage ratings should not exceed 600V in any application. CONDUCTOR • Bare Copper Conductor INSULATION • THHN/THWN insulation ARMOR • Overall Aluminum interlocked armor applied over the assembly. The temperature rating is 90°C dry STANDARDS • UL Standards 83, 1569, 1581 & 2556• IEEE 1202 vertical tray flame test, 70,000 BTU/hr• ASTM B3, B258• NEC Articles 300.22, 330, 518.4, 520.5, 530, 545.4 & 645 • Class I Div. 2, Class II Div. 2 and Class III Div. 1 Div. 2 for hazardous locations• Federal Specification A-A59544 DISCLAIMER • Picture May Not Represent Actual Cable and is Only Used as a Representation Please Refer to The Specifications for Product Accuracy. PRODUCT SPECIFICATIONS Size AWG 2 Number of Conductors 3 Ground Wire Size AWG 6 Overall Diameter (inches) 1.124 Weight (Lbs/1000ft) 950 CUT TO LENGTH • If you are looking for any Custom Lengths? Please feel free to contact us. We Can do all Cut Lengths. OTHER VALUE ADDED SERVICES • Expedited Shipping• Cut to Length Paralleling• Color Striping & Dyeing• Reel Lagging• Special Labeling & Packages Shipping • Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.*** Payment & Returns • All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping. Feedback • Feedback will be left as soon as feedback is left for us.
