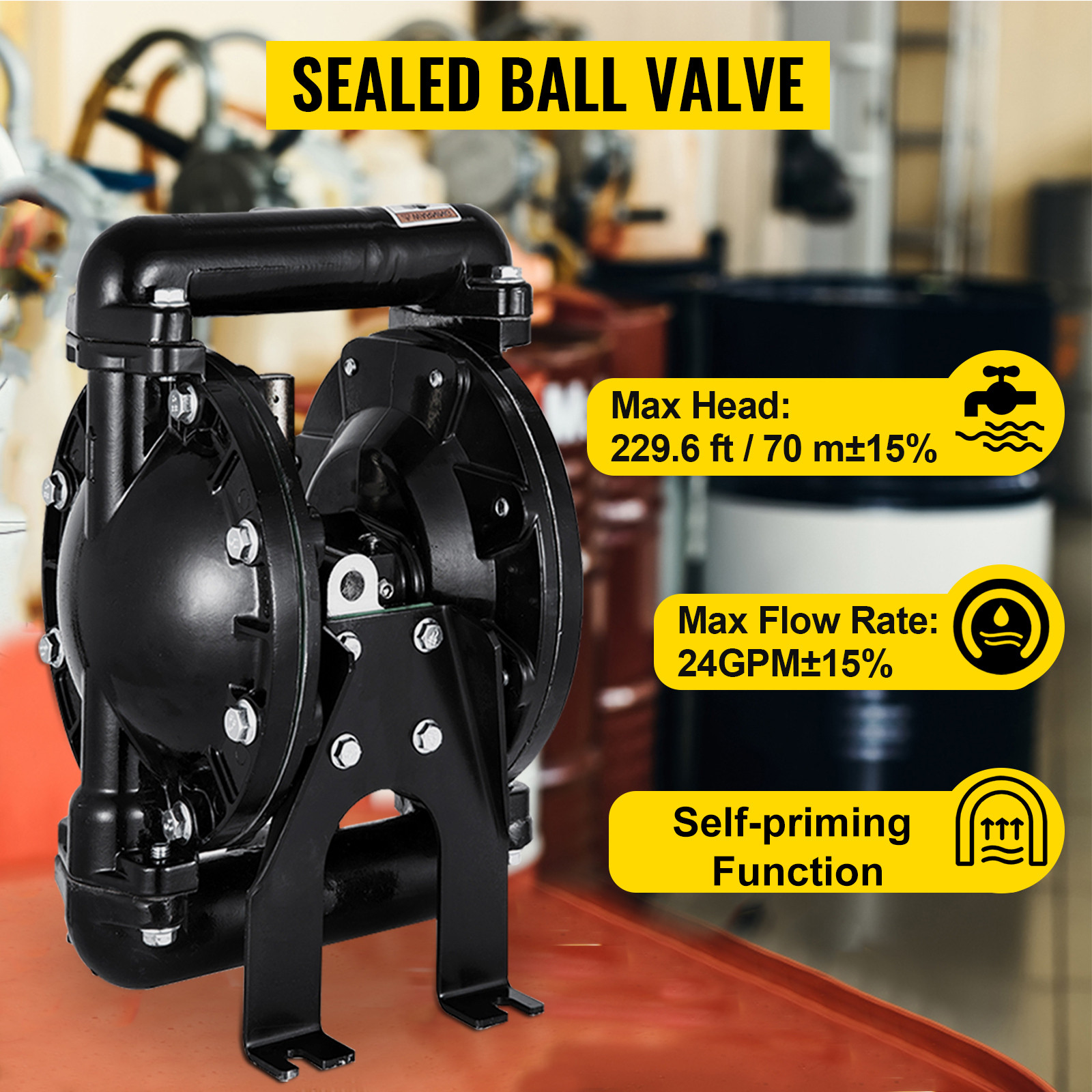

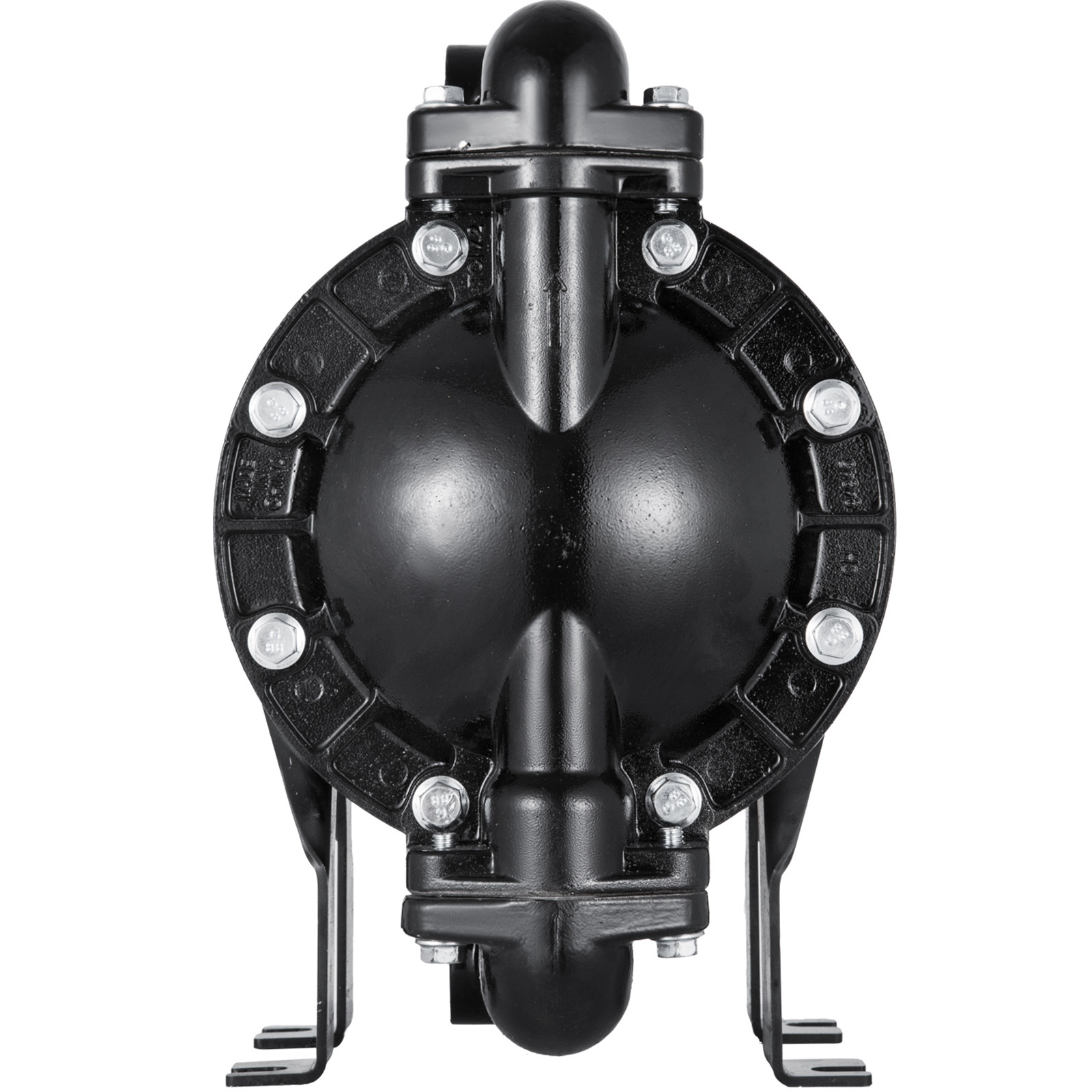

Material This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on. Versatile Uses The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc. Air-Operated Double Diaphragm Pump Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly. Premium Double PTFE Diaphragms Sturdy & Leak-proof Construction Excellent Air-operated Performance Unique & Professional Designs Specifications Model: QBY4-25L F46 Type: Air-operated Double diaphragm Diaphragm Material: PTFE Body Material: Aluminum Alloy Inlet/Outlet Port: 1 inch (25 mm) Air Inlet Size: NPT 1/2 inch (12.7 mm) Max Flow Rate: 24 GPM Max Head: 229.6 ft/70 m±15% Valve Type: Ball Suction: 0-5 m (0-16.4 ft) Max Suspended Solids: 3 mm (1/8 inch) Average Air Consumption: 38 CFM Self-Priming Dry: 3 m (10 ft) Self-Priming Wet: 4.6 m (15 ft) Package Content 1 x Air-Operated Double Diaphragm Pump 1 x Product Manual SHIPPING ABOUT US PAYMENT RETURNS CONTACT WARRANTY Welcome to our eBay store. As a leading and emerging company in manufacturer and exporting business, we are specialized in Business and Industrial Products, Sporting Goods, Pet Products, Home and Garden products for more than 10 years. We believe that it is our vision and mission to provide innovative products with best service and competitive price to satisfy you. Our goal is to make sure that you can find exactly what you are looking for and make it easy for you to place your orders. We accept PayPal payment,PayPal Credit,Credit card or debit card and so on.Payment should be completed within 4 (Four) days of auction closing. Or unpaid dispute will be filed for closing auction.We will leave a positive feedback immediately after payment is received. We appreciate a positive feedback as much as you do. If for some reason there is any issue with the purchase, please contact us prior to leaving feedback, we will be glad to work together and provide a satisfying solution. Please be aware that PO Box cannot receive items,please DO NOT fill in the PO Box address. DELIVERY DAYS: 3-7 BUSINESS DAYS 3 BUSINESS DAYS SHIPPING OUT SHIP FROM CA & TX & NJ & GA & NC &OR WAREHOUSE California Warehouse: City of Industry, CA Texas Warehouse: Houston, TX New Jersey Warehouse: Perth Amboy, NJ New York State Warehouse: Perth Amboy, NJ Georgia Warehouse: Austell,GA North Carolina Warehouse: Grove NC Oregon Warehouse: AIRPORT WAY Portland,OR All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping. In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation. We ONLY accept returns with original package. Please make sure that item has NO man-made sabotage. Used items will not be accepted for return. Email Customer Support: 9:00am-2:00am PST Sunday-Friday All emails will be responded to within 12-24 hours This item comes with 12 months Warranty from the date of customers purchased it. Special circumstances will be listed clearly in the listing. If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem. Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's your fault. Replacement products are provided with the same warranty as the returned products. Features & Details Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi; Max. Flow Rate: 24 GPM; Max Head Lift: 229.6 ft/70 m±15%. Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use. Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance. Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime. Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile. Key Features Sturdy Aluminum Alloy Body The shell of the air-operated diaphragm pump adopts aluminum alloy construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi. PTFE Double Diaphragm The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate: 24 GPM; Max Head Lift: 229.6 ft/70 m±15%. Professional Air-Operated Designs Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. Sealed Ball Valve It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation. Handle Various

Material This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on. Versatile Uses The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc. Air-Operated Double Diaphragm Pump Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly. Premium Double PTFE Diaphragms Sturdy & Leak-proof Construction Excellent Air-operated Performance Unique & Professional Designs Specifications Model: QBY4-25L F46 Type: Air-operated Double diaphragm Diaphragm Material: PTFE Body Material: Aluminum Alloy Inlet/Outlet Port: 1 inch (25 mm) Air Inlet Size: NPT 1/2 inch (12.7 mm) Max Flow Rate: 24 GPM Max Head: 229.6 ft/70 m±15% Valve Type: Ball Suction: 0-5 m (0-16.4 ft) Max Suspended Solids: 3 mm (1/8 inch) Average Air Consumption: 38 CFM Self-Priming Dry: 3 m (10 ft) Self-Priming Wet: 4.6 m (15 ft) Package Content 1 x Air-Operated Double Diaphragm Pump 1 x Product Manual SHIPPING Please be aware that PO Box cannot receive items,please DO NOT fill in the PO Box address. DELIVERY DAYS: 3-7 BUSINESS DAYS 3 BUSINESS DAYS SHIPPING OUT SHIP FROM CA & TX & NJ & GA & NC &OR WAREHOUSE California Warehouse: City of Industry, CA Texas Warehouse: Houston, TX New Jersey Warehouse: Perth Amboy, NJ New York State Warehouse: Perth Amboy, NJ Georgia Warehouse: Austell,GA North Carolina Warehouse: Grove NC Oregon Warehouse: AIRPORT WAY Portland,OR PAYMENT We accept PayPal payment,PayPal Credit,Credit card or debit card and so on. Payment should be completed within 4 (Four) days of auction closing. Or unpaid dispute will be filed for closing auction. We will leave a positive feedback immediately after payment is received. We appreciate a positive feedback as much as you do. If for some reason there is any issue with the purchase, please contact us prior to leaving feedback, we will be glad to work together and provide a satisfying solution. RETURNS All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping. In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation. We ONLY accept returns with original package. Please make sure that item has NO man-made sabotage. Used items will not be accepted for return. CONTACT Email Customer Support: 9:00am-2:00am PST Sunday-Friday All emails will be responded to within 12-24 hours WARRANTY This item comes with 12 months Warranty from the date of customers purchased it. Special circumstances will be listed clearly in the listing. If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem. Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's your fault. Replacement products are provided with the same warranty as the returned products.
