EMCO PMT ESL Programmable Regulated High Voltage Power Supply -8000VDC
This listing is for an EMCO PMT ESL programmable regulated high voltage power supply rated at -8000VDC (as stated in the title). It is described as new and priced at 39.99 USD. Shipping is included with free shipping. No additional specifications, accessories, or test details are provided in the description, so check the listing for details on output range, connectors, dimensions, included cables, and any documentation. Review the photos and seller notes to confirm what is included before purchase.
| Location | Littleton US |
| Shipping | Free shipping (check listing for details) |
| Seller |
good_ol_boy
100.0% positive · 1503 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2026-03-17T01:19:30.000Z |
| Output Power | 1watt |
| Maximum Current Output | 0.125mA |
| Maximum Voltage Output | -8kv |
| Adjustable Power Supply Type | Switch-Mode Power Supply (SMPS) |
| Number of Channels/Outputs | 1 |

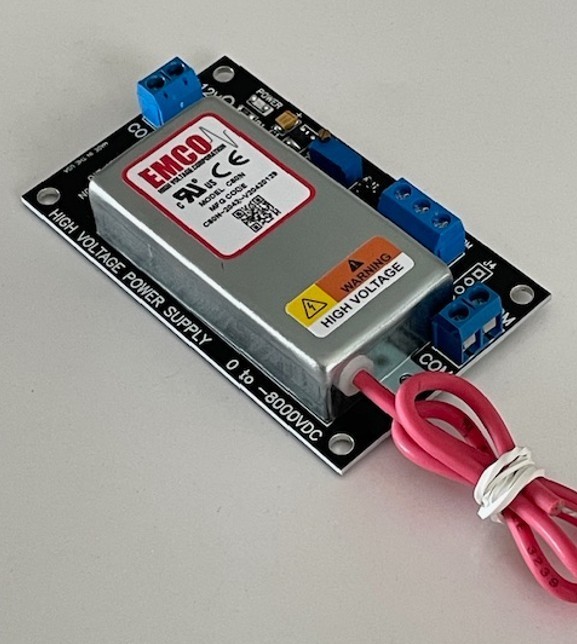

"BACK IN BLACK!!".......... Back by VERY popular demand, the PS8000-C80N Power Supply Rev 2.0 Hybrid surface mount technology mixed with through hole makes this power supply super cool for all your applications. Same great performance and price as the original Rev 1.0 design. Portable -8000VDC multi-purpose regulated power supply. Based on the EMCO / XP Power C80N high voltage DC converter module, this assembly has all the support electronics for a fully functional power supply. Also available as just a module. See my other listing. The output voltage is programmable using an onboard reference and potentiometer or can be remotely adjusted with an off-board potentiometer. Move one jumper block (JP1) to make the selection, ‘L’ = Local control, ‘R’ = Remote control. Simply add an external 10k potentiometer for remote output adjustment.Applications include, but are not limited to, General Applied Physics, Photo Multiplier Tubes, Solid State Detectors, Electrophoresis, Piezo Devices, Capacitor Charging, Electrostatic Loud Speakers (ESL), and EO Lenses applications.Check out the video of arc testing!! Be sure to turn up your speaker volume!WARNING – this device produces dangerous voltages and is intended to be used by experienced individuals only! Use at your own risk!! Please be careful…..Specifications:Input Voltage: 11.5VDC to 16VDCOutput Voltage: 0 to -8000VDCOutput Current: 0.125mAPower: 1wattRegulation: < 0.75% Load, < 0.25% LineProgrammable Output Voltage: 0 to 100%Adjustable Gain for Fine TuningReliability: Rated at 2.6MHrs MTBFTemperature Coefficient: <50ppm/degrees CShielded Case for lower EMISize: approximately 3 ½” x 2 1/4” x 1”Ripple: <0.2%Minimum Load: No minimum load requiredSwitching Frequency: 100kHz-150kHzcUL listed moduleCE Marked moduleShipping inside the continental US only please.
