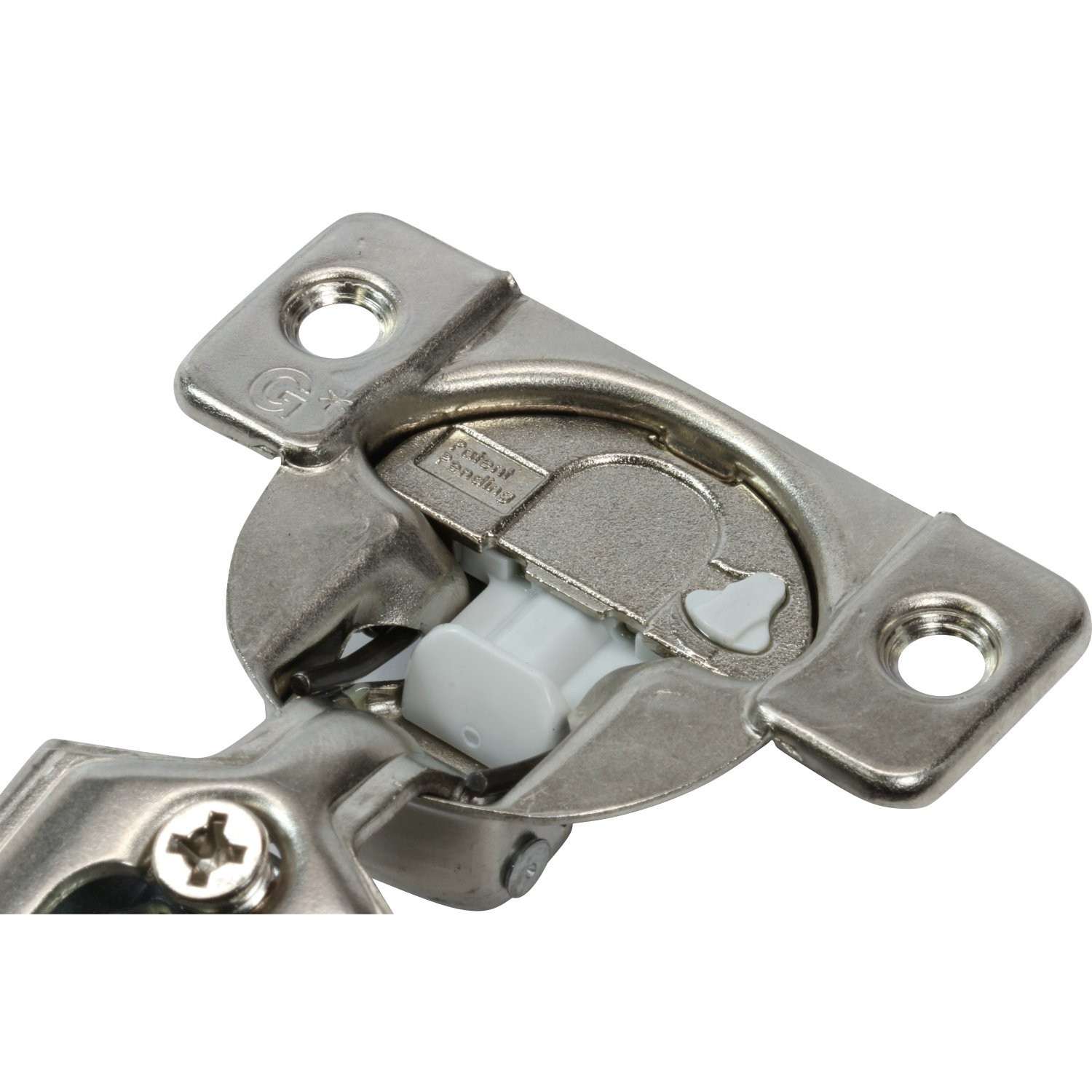

10 Pack Rok Hardware Grass TEC 864 108 Degree 1/2" Overlay Custom 3 Level Sof...

MADE IN THE USA ~Face Frame Hinge with integrated Soft-close ~ No additional installation of the Soft-close is required. A three tiered adjustment switch allows various levels of resistance in the damping system. ~ Materal: Steel, TEC hinges feature a solid metal hinge cup. All moving mechanism parts, including pivot pins, linkages and springs are hardened to ensure long-term durability ~ Soft-close damper is premounted in the hinge cup ~ Adjustment switch to regulate closing action ~ One piece hinge and base plate combination ~ 3-dimensional adjustment ~ 11 mm (7/16”) cup drilling depth ~ Front locating tabs position hinge on face frame ~ Works with current Grass insertion machinery ~ Includes installation screws: 2x x 5/8" Wood Screws and 1x x 3/4" Wood Screw per hinge ~ Side Cam Adjustment: +/-1.5mm(1/16") ~ Height Adjustment at mounting screw: +/-2mm(3/32") ~ Depth Cam Adjustment: +2.5mm(3/32"), -5mm(1/32") ~ Screw hole distance: 45mm (1-25/32") ~ Cup Boring Diameter: 35mm (1-3/8") ~ Hinge Overlay: 1/2" ~ Series: TEC 864 ~ Cabinet Type: Face Frame ~ Fixing Type: Screw On ~ Closing Mechanism: Soft Closing ~ Hinge Opening Angle: 108 Degree ~ Base Plate: Wrap MountGRASS TEC 864 Soft Close Cabinet Hinge MADE IN THE USA3-Way Adjustable In and Out Cam Adjustment 108 Degrees Opening AngleScrew on wrap around mount cabinet hinge Includes 2x x 5/8" Wood Screws and 1x x 3/4" Wood Screw1/2 in overlay soft closing hinge with custom 3 level soft close strength switchThe 3 level soft close function gives you a off, low and high setting for the soft closing strength..
