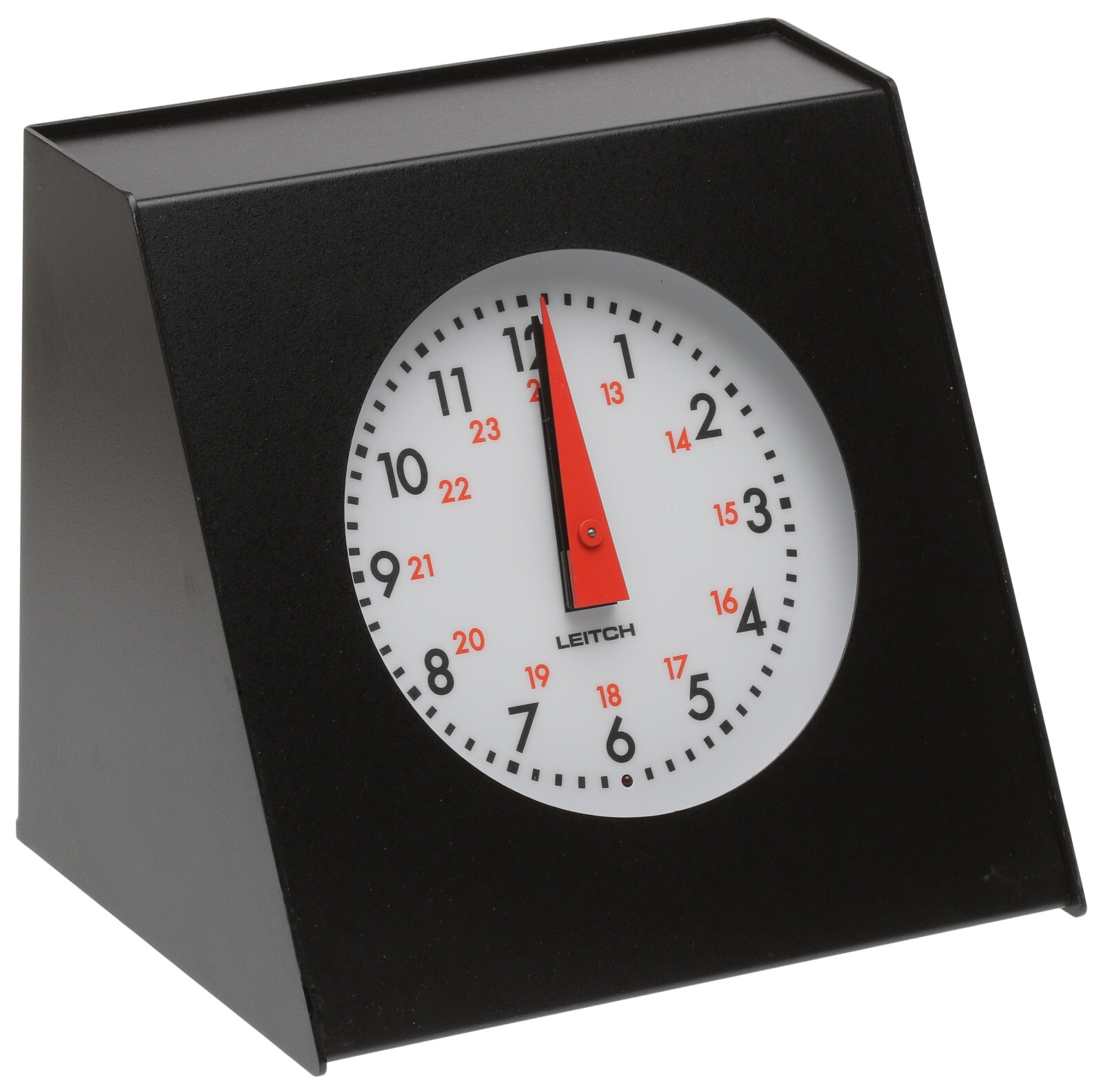

Leitch ADC-5105 5" Studio Analog Desktop Clock Timecode Sweep
Leitch ADC-5105 5-inch studio analog desktop clock with SMPTE/EBU timecode sweep seconds display. This unit is new old stock in plain packaging and sold as B-stock: new/unused with a near-silent mechanism and a few minor cosmetic blemishes that have been retouched with matching paint; they do not affect performance. It may be outside the manufacturer’s warranty period. Any internal battery is not warrantied and should be assumed to need replacement, with hand positions reset before installation. Free shipping is included. Check the listing for details.
| Location | Winter Garden US |
| Shipping | Free shipping (check listing for details) |
| Seller |
prostudioconnectionllc
100.0% positive · 11547 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2025-06-23T16:18:17.000Z |
| Brand | Leitch |
| Type | Hardware |
| Screen Size | 5 in |
| Model | ADC-5105 |
| Country of Manufacture | Canada |
Leitch ADC-5105 5" Desktop Analog Studio Clock • List $595 • New Old Stock in Plain packaging • 115V Actual item for sale New old stock in plain packaging. B-stock - ie. new/unused with near silent mechanism but with just a few minor non-performance affecting blemishes that have been retouched with matching paint. May be outside manufacturer's warranty period. Any internal battery is not warrantied and it should be assumed that it needs replacing (and the hand positions reset) before installation. Description The ADC-5100 Series clocks are designed to combine the advantages of large, easily read analog time displays with the self-setting capability of digital SMPTE/EBU
serial time code readers. This advanced mode is made possible by a unique digitally-controlled drive mechanism. A microprocessor is used to decode the digital information and precisely position the hands. Features: Completely self-setting with SMPTE/EBU time code input or battery back-up [battery not warrantied] Sweeping or stepping second hand movement Built-in quartz time base oscillator with battery back-up [battery not warrantied] Runs on 60 Hz, 115 VAC power line Please see the User Manual for full information. Specifications Electrical • 115/230 VAC 20%25 Internally selectable • 50/60 Hz Automatic selection • Power 15VA Primary Drive Inputs • Serial Time Code drop frame SMPTE/EBU • Impedance Hi-Z, balanced • Level 4 Vp-p, ±8 dB Outputs • Serial time code SMPTE/EBU (non-Drop Frame) • Impedance Low-Z, balanced • Level +10dBm nominal unloaded, -3dB into 180 ohms Time Bases • Time code SMPTE/EBU, automatic selection • Internal Crystal,± 4 sec/month, 0 -50°C • Power line 50/60Hz, automatic selection • Battery backup Crystal, ±10 sec/month, 0 -50°C Controls • Output time code format SMPTE or EBU (non-Drop Frame) • Secondary reference Internal or Power Line • Second hand movement Step or Continuous Sweep • Aux. offset Requires Harris CSD-3902 Clock System Driver • Local offset Any amount, user selectable
