Portable Spectrum Analyzer Signal Genertor 3G 4G LTE CDMA DCS GSM GPRS GLONASS

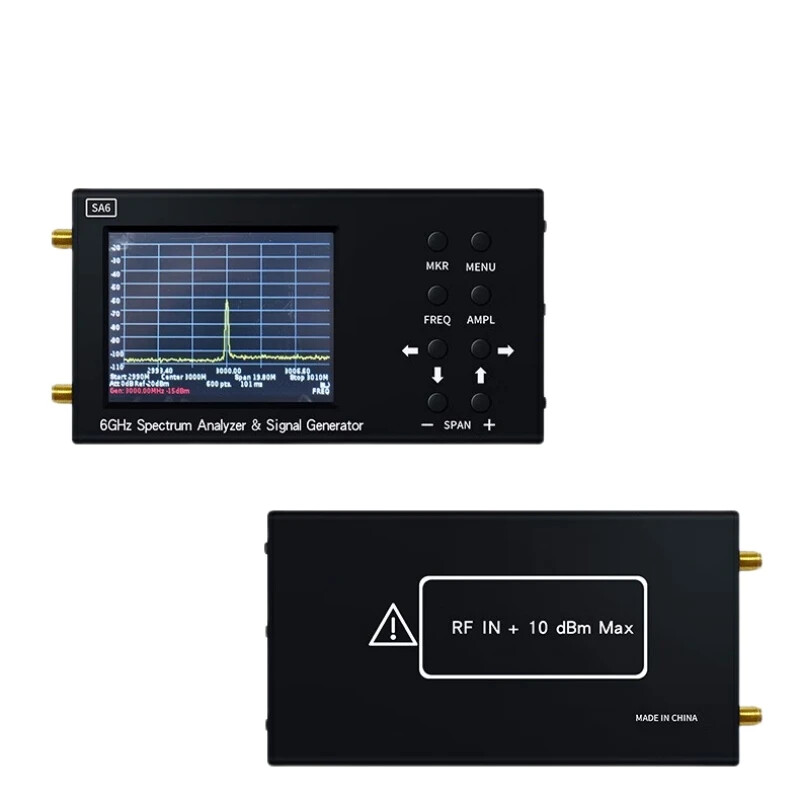

Product Description SA6 is a simple portable spectrum analyzer and signal range, designed to display the signal spectrum in the frequency range of 35 to 6200 MHz. The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc. Another important feature is the additional function of the tracking generator, which makes it possible to measure the frequency response of passive or active devices (such as filters or amplifiers). The software allows measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures. SA6 is mainly used for on-site operation. The equipment is durable, light in weight and low in energy consumption. It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work. In addition, the spectrum analyzer is the perfect solution for repair shops and radio enthusiasts. Features: 3.2 inch

color resistive touch screen Wide frequency range: 35 to 6200 MHz Fast scanning of frequency range: 500 points per point High measurement accuracy: 2dB within 70-75dB dynamic range Compatibility of Windows-based computers The device can be used with the help of a PC It is particularly convenient to use on site: the weight is as low as 380 grams, the

size is 150х75х23 mm, the independent power supply can run continuously for up to 4 hours, and the wired data transmission to the PC Applications: Place the external antenna on the base station Quick analysis of the RF environment Check the correct operation of the relay cell Repair and adjustment of repeaters, generators, filters, etc. Measure SWR when using an external directional coupler. The device is controlled by one of the following two methods: Through the buttons and touch screen on the device. The data between the analyzer and the PC is transferred via Bluetooth or USB cable. All measurement data are displayed on the screen of the device or PC in real time. Specification: Display frequency range: 35 — 6200 MHz Measuring frequency range: 35 — 4500 MHz Dynamic range of 35-3000 MHz frequency band: 75 dB Dynamic range of 3000-4500 MHz frequency band: 70 dB Maximum span: 6165 MHz Bandwidth: 200 kHz, fixed View the scanning speed of the frequency band above 100MHz: 700MHz/sec Sweep 100 MHz: <0.25 seconds Noise floor up to 3000 MHz: <-90 dBm Noise floor 3000-4500 MHz: <-85 dBm Noise floor 4500-6200 MHz: <-80 dBm Wave impedance: 50 ohms Standing wave ratio in the working frequency range: <1,5 Internal attenuator: 0-30 dB Error at attenuation up to 10 dB: 2 dB 10 to 20 dB attenuation error: 5 dB 20 to 30 dB attenuation error: 8 dB Tracking generator output power: -15...-25 dBm Accuracy in dynamic range: 2,0 dB The maximum input power of the attenuator at 0 dB: 10 dBm Maximum input power when attenuation is greater than 20dB: +20dBm Maximum input measurement signal: +10 dBm Maximum input DC voltage: 25 volts Maximum current consumption when running on battery: 450 mA Maximum current consumption when running from USB: 500 mA (when charging) Battery: 2500 mAh Package include
