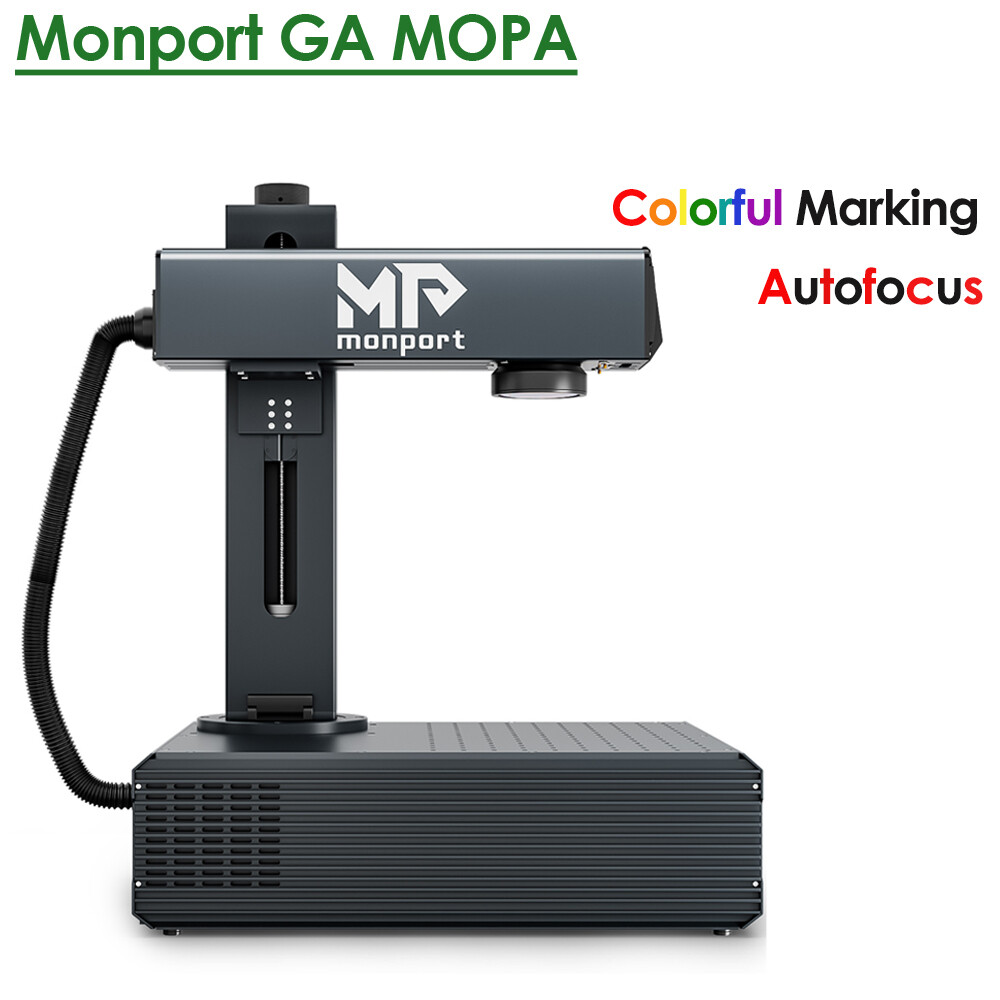

Monport Autofocus 60W Fiber Laser Marking Machine Metal Color Engraver 6.9 x 6.9

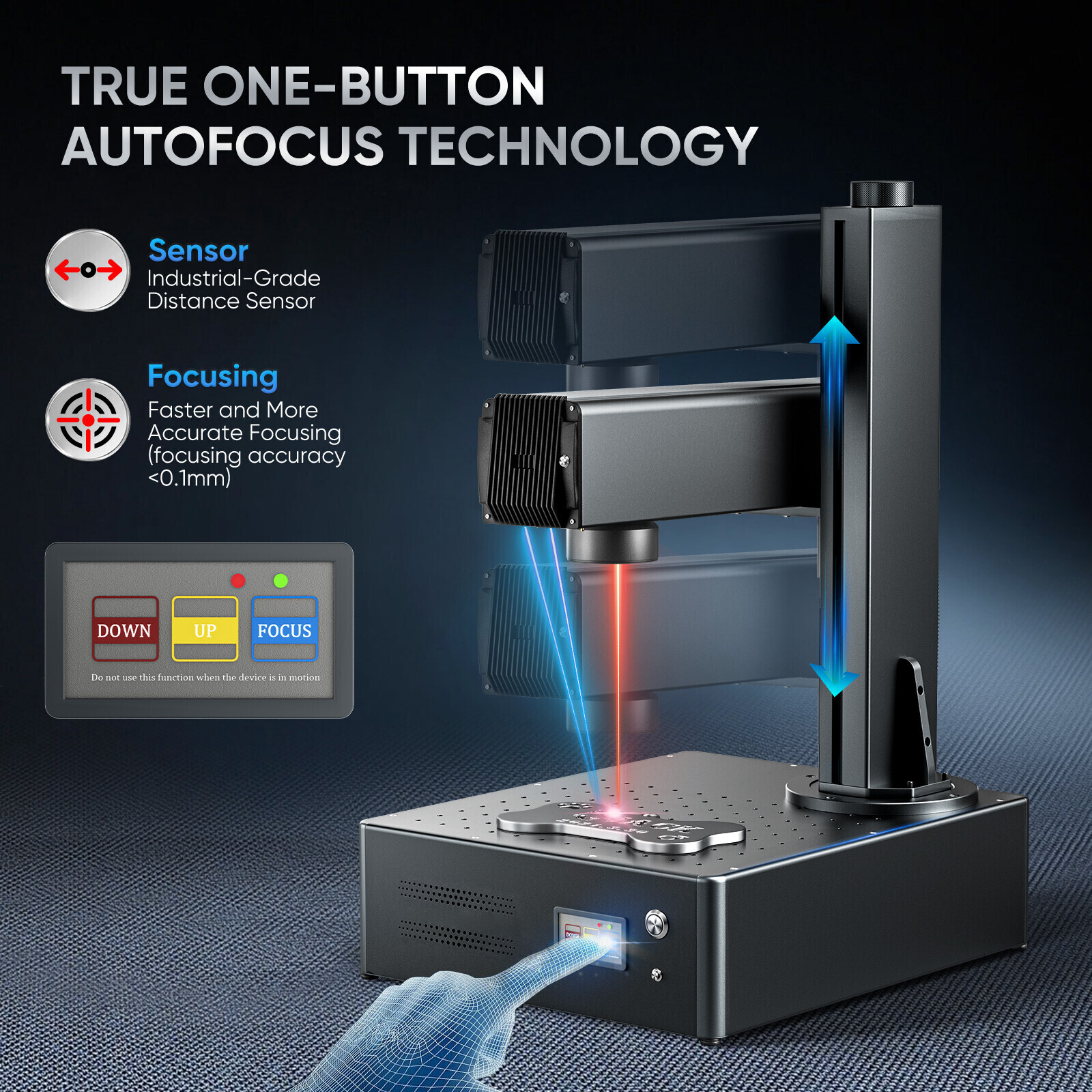

* table Monport Autofocus 60W Fiber Laser Marking Machine Metal Color Engraver 6.9 x 6.9 GA Series: Fastest Autofocus MOPA Fiber Laser for Metal Color Marking Monport GA 60W Upgraded Integrated MOPA Fiber Laser Engraver & Color Marking Machine with Auto Focus Dimension & Specifications Laser Power: 60W Working Area: 6.9"x 6.9" Wavelength: 1064nm Machine Dimension: 42cm x 35cm x 62cm Package Dimension: 74cm x 61cm x 36cm Marking Speed: 10000mm/s （Up to 15000mm/s） Expected Service Life (MTTF): 100,000 hr. GA60 Fiber Laser Benefits 【All-in-One Fiber Laser】Experience Monport's latest, independently developed autofocuslaser marking machine. Upgraded for enhanced performance and cost-effectiveness, users can enjoy advanced features without significant cost increase. The machine arrives ready-to-use with easy installation, quick setup, and user-friendly operation. 【Aluminum Body with Integrated Optics】Monport combines functionality and aesthetics in industrial gradefiber laser engravers. The entire machine features a robust aluminum casing, with the auto-focus and galvanometer modules integrated into the optical path. This integration, paired with sleek exterior lines and a minimalist structure, positions it far ahead of industry competitors. 【Auto-Focus Innovation】Monport introduces our proprietary auto-focus technology, achieving high precision with a single click (error＜±1mm). This streamlined process enhances work efficiency and focus accuracy compared to traditional manual methods. For added flexibility, manual focus is also possible, supported by three red lights. 【Enhanced Performance】Beyond its outstanding design, Monport's desktop marking machine outperforms competitors also in performance. Every component has been rigorously tested for ultra-high stability, precision positioning, rapid marking speeds, and robust anti-interference capabilities (see detailed

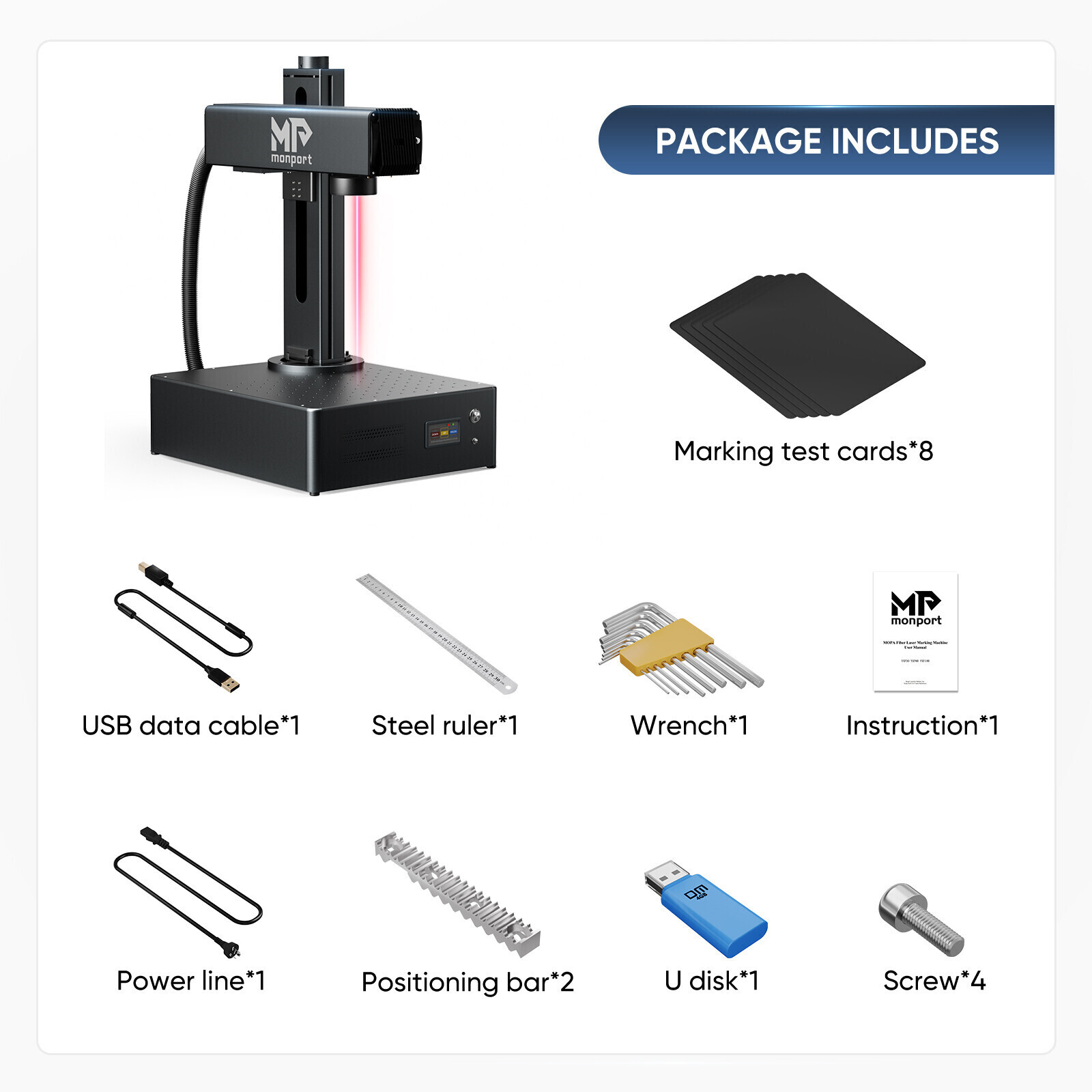

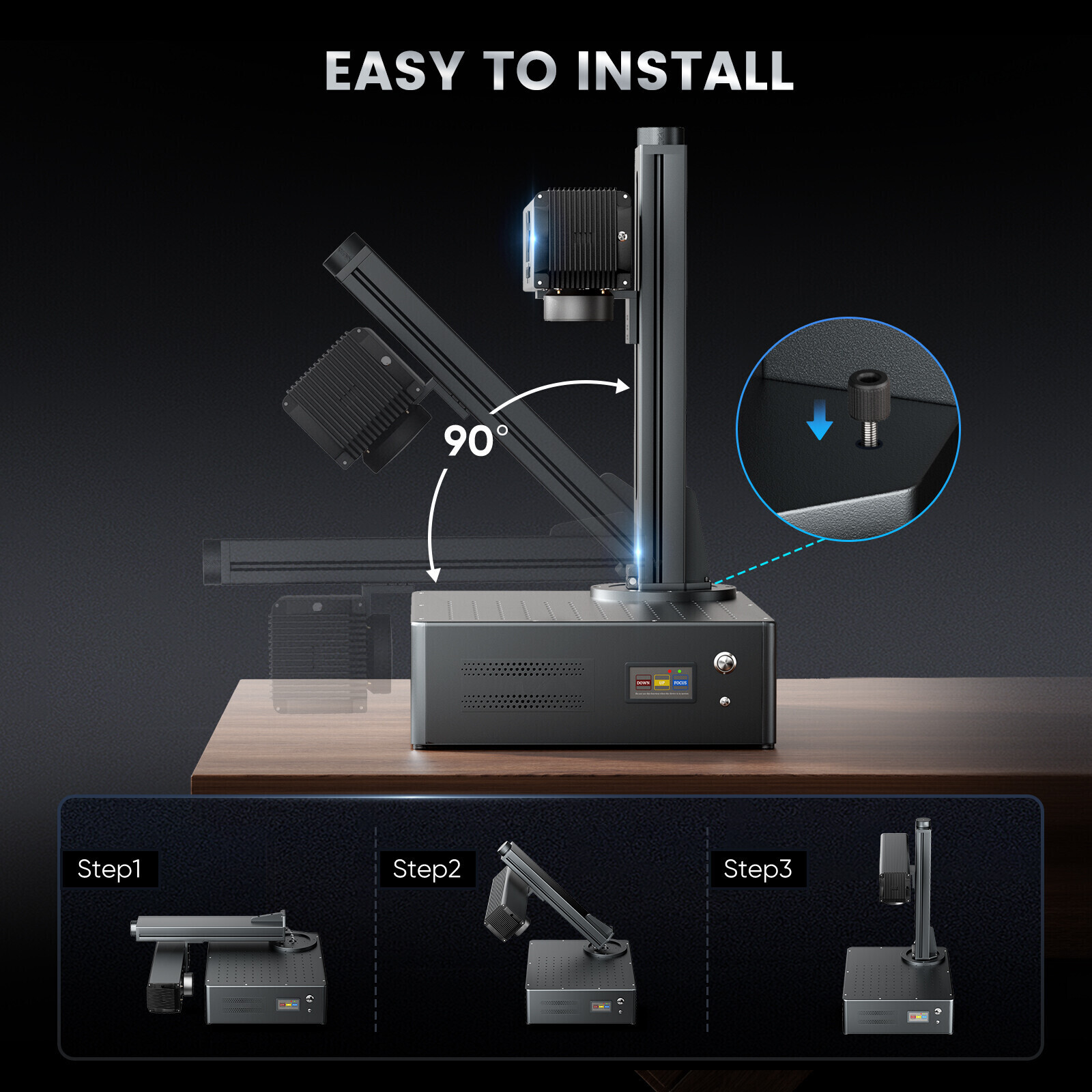

specifications for reference). 【±90° Vertical Arm Rotation】The vertical arm offers an infinitely adjustable range of ±90°. Users can fix it at any angle within this range, promoting unlimited creativity in marking applications. Adjustments are convenient, requiring just the loosening of screws without the need for complete unscrewing. 【Widely adjustable frequency and pulse width】Stainless steel colorful marking，including anodized aluminum black marking, precision cutting, drilling, conventional marking, plastic keystroke surface marking, etc.（Note: Laser Frequency 1-3000kHz，Pulse Width 2-500ns） 【One-Minute Installation】Installing this LightBurn compatible fiber laser marker is a breeze with its excellent foldable vertical arm design —just tighten two screws, and you're ready to go. Monport promises that even beginners can complete the setup within a minute after unboxing for a hassle-free experience. Package List Fiber marking machine*1 Marking test cards*8 USB data cable*1 U disk*1 Wrench*1 Steel ruler*1 Positioning bar*2 Screw*4 Power line*1 Protective glasses*1 Instruction*1 Warranty & Certifications 2-year parts warranty on all GA fiber laser machines 1-year warranty on fiber laser source FDA COMPLIANT CE CERTIFICATION FEATURES GA MOPA Fiber Features One-Touch Autofocus Monport innovative one-click autofocus feature guarantees meticulous distance measurement and exact focus adjustments, ensuring zero-error operation down to the micron level. Installed in 1 Minute Exceptionally Easy Installation. Upon unpacking, gently place the machine onto your tabletop, carefully straighten the upright mast, and secure it in place with just two screws. 90° Rotary Marking Enabled with a vertically rotating mast capable of infinite 90° rotation, Monport GA MOPA boasts unrestricted high-definition marking capabilities over all angles and surfaces of workpieces. Elevate Business Projects Boasting an unparalleled marking speed up to 10000mm/s, Monport GA MOPA Fiber Laser is designed to cater to the most demanding industrial and creative applications, ensuring that your projects are not only completed with precision but also with an efficiency that sets new industry standards. Galvo Scanning Technology Equipped with the cutting-edge Galvo Tech drive and scanning system, Monport GA MOPA FIber Laser can attain a marking speed of up to 10,000mm/s while consistently delivering exceptional precision and steadfast, rapid marking capabilities. Sub-Micron Precision Equipped with a powerful 30W driver and 30W laser source, Monport GA MOPA Fiber Laser delivers striking

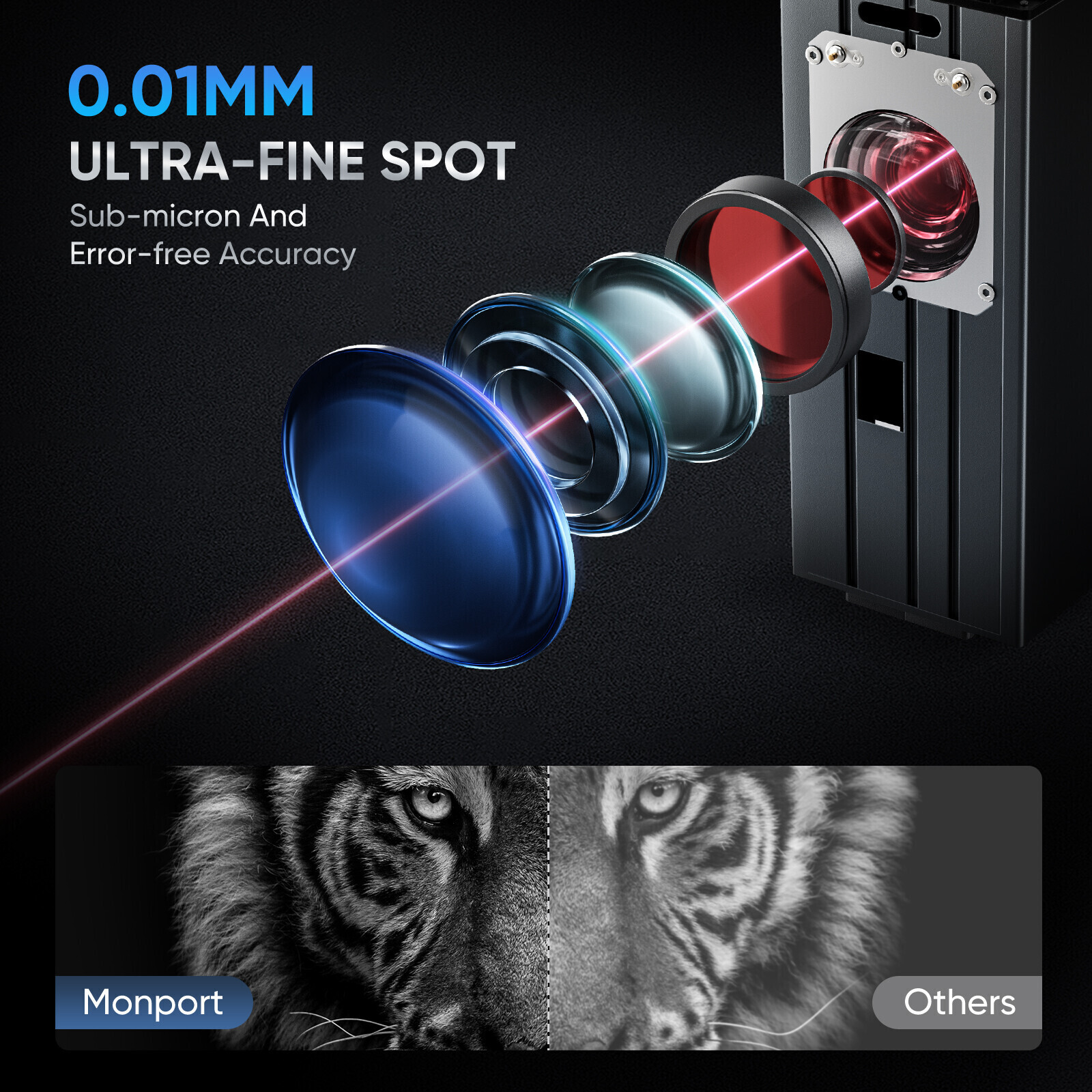

color marking on stainless steel, aluminium, and other metals while maintaining sub-micron precision and error-free accuracy. Golden Working Area (175*175mm) Enhanced Performance Beyond its outstanding design, Monport's desktop marking machine outperforms competitors also in performance. Every component has been rigorously tested for ultra-high stability, precision positioning, rapid marking speeds, and robust anti-interference capabilities (see detailed

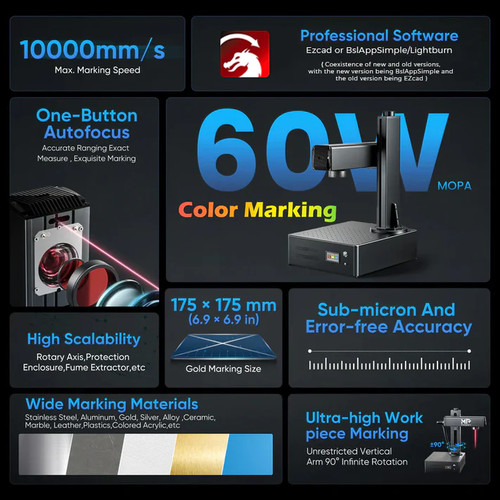

specifications for reference). Versatile Color Marking Capacity Rich Compatibility with Accessories You can pair it with a rotary (marking circular objects), a smoke purifier (absorbing smoke and dust), a protective cover (noise reduction, safety), and all of which are sold in Monport stores. Detailed parameters Compare Each GA MOPA Fiber Laser Model Product GA30 GA60 GA100 Model YXF30 YXF60 YXF100 Rated Power 30W 60W 100W Beam Quality M2 ＜1.4 ＜1.5 ＜1.6 Maximum Pulse Energy 0.8 2 1.5 Max. Marking Depth on a Single Pass 0.003in.(0.08mm) 0.004in.(0.1mm) 0.006in.(0.15mm) Required OperatingEnvironment Max. Humidity <70% Temp. Range 32–104°F(0 - 40°C) Expected Service Life 100,000 hr. Input Power 110-120V 60Hz Central Wavelength 1064 nm Laser Frequency 1-3000 kHz Pulse Width 2-500 ns Beam Diameter 7±0.5 mm Processing Area 6.9x6.9 in.(175×175 mm) Max. Marking Speed 393.7 ips(10000 mm/s) Min. Marking Depth 0.0002 in.(0.005 mm) Min. Line Width 0.006 in.(0.15 mm) Precision ±0.1 µm Provided Operating Software EZCad or BslAppSimple（Coexistence of new and old versions, with the new version being BslAppSimple and the old version being EZcad） Payment policy 1. We Only take PayPal, Other payment methods are Not accepted. 2. Payment Must be made within 8 business days after the end of the auction, Or unpaid dispute will be filed to eBay for the non payable bidders. Shipping policy 1. We ship to your order address only. Please make sure your shipping address is complete and correct before you pay. 2. Order will be sent out within 24 hours after clear payment received(excluding weekend & holiday). 3. Arrival time (estimated): 2-8 working days. Currently, we can only send orders to shipping addresses in the United States(Excluding Alaska/Hawaii, APO/FPO, US Protectorates). 4. Shipping time is only estimated and not guaranteed. If not get item within estimated time, please contact us for update. 5. Delivery to the remote area like Puerto Rico only support Postal service, NO faster shipping. If you pay means you agree with the postal service. Thank you for understanding. Returns policy **30-Day Return Policy for Exchange or Refund** 1. We accept exchange of item within 30 days after your receiving if it is defective. 4. Returned items must have all original packaging and
