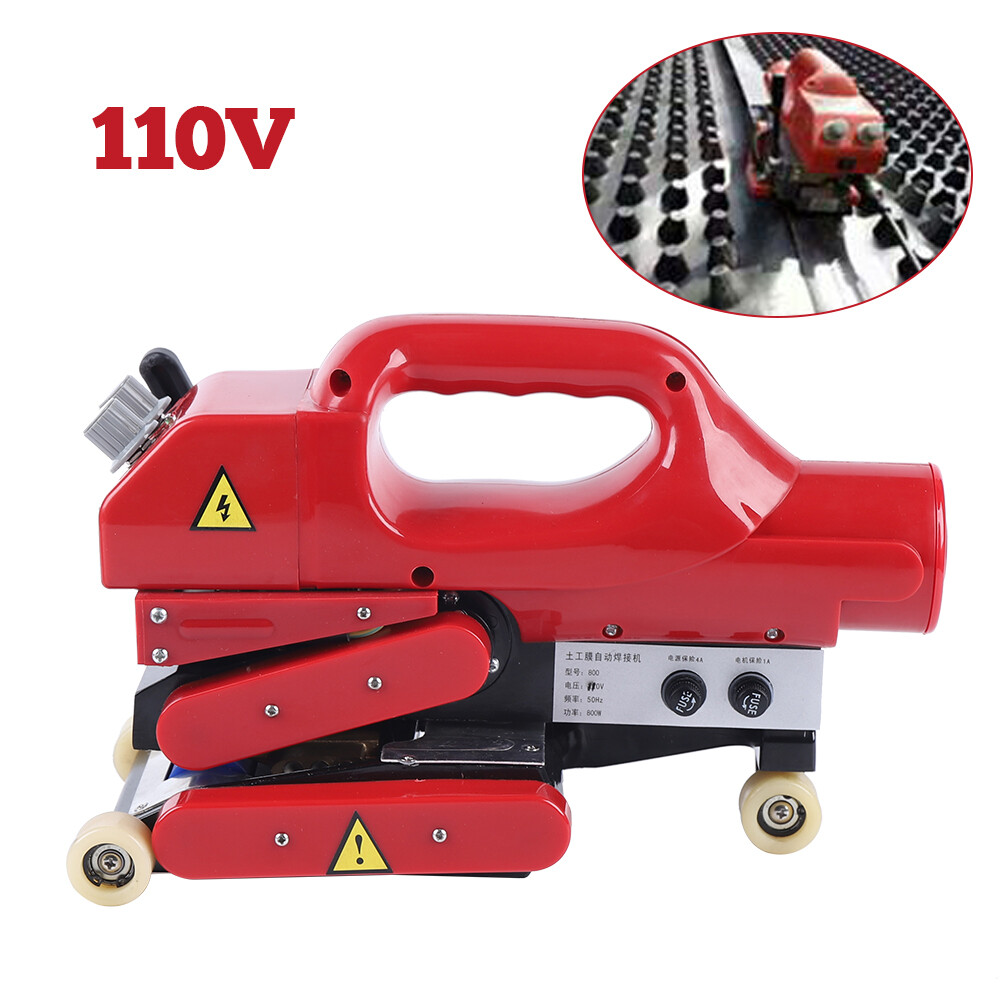

PVC Geomembrane Welder 800W 10cm Overlap Sealing Welding Machine

Welcome to our store, we have high-quality pre-sales and after-sales service. Before you buy this Item, you can contact us if you have any questions, and we will answer you in time. I wish you all the best.PVC Plastic Layer Overlap Sealing Welding Machine Geomembrane Welder 800W 10CMThe description of product:Packing List:Climbing Welding Machine + Tool Accessory Kit + Tool Box + Manual Specification:Lap Width: 10cmVoltage: 110v 50hzWelding

Material Thickness: Rubber Wheel 0.2-1.5mmWelding Seam Width: Two 12.5mm, Inspection Seam 12mmPower: 800wWelding Strength: ≥85% Base

Material (Tensile Resistance in Shear Direction)Welding Speed: 0.5-5m/MinWhole Machine Weight: 5kgProduct Size: 31*14*21cm (12.20*5.51*8.26inch)Heating Temperature: 0-450Insulation Class: Class LiPower Fuse: 4aMotor Fuse: 1aScope of Application: Suitable for Pe, Pvc, Hdpe, Eva, PpFeatures:1. Intelligent Control, Control BoxFeedback Type Intelligent Control System, Using Imported Components, Precise Control and Long Service Life.2. Imported Silicone Pressure Roller, Good Elasticity, High Temperature Resistance, Suitable for Welding 0.2-1.5mm Materials.3. Super PowerSpecial Alloy Wedge Knife Supporting High-power Heating Tube (800w), Heating Faster4. Pressure Adjustment InstructionsTurn Clockwise to Adjust the Pressure to Increase, and Turn Counterclockwise to Reduce the Pressure; It Is Forbidden to Press the Two Pressure Rollers Together to Run Idly5. Wide Range of ApplicationWidely Used in Highways, Tunnels, Bridges, Reservoirs, Buildings, Artificial Lakes, Swimming Pools, Breeding Ponds, Landfills Operation Procedure:1. the Joystick Is Leveled to Separate the Upper and Lower Pressure Rollers to Prevent the Pressure Roller from Idling and Damaging the Machine After Starting the Machine.2. Turn on the Power and Turn on the Power Switch.3. Set the Temperature First. for Materials Above 1mm, the Temperature Is Adjusted to About 350 Degrees. When the Indicator Light on the Control Box Is Red, It Is Heating.4. Adjust the Welding Speed According to the Thickness of the Material. According to the Normal 1mm Material, the Speed Is Adjusted to About 2.5m. 5. When the Red Light of the Control Box Turns to Green, Put the Materials in from the Left and Right Sides of the Machine, and the Joystick Is Driven from Bottom to Top, and It Is 90 Degrees to the Ground.6. Adjust the Speed According to the Welding Effect, the Temperature Is High and the Speed Is Fast, on the Contrary, the Temperature Is Low and the Speed Is Slow (Try Not to Adjust the Speed and Temperature in the Middle,Set the Temperature First When Turning on, If the

Material Is Thinner or the First-time Operation, Set the Temperature Lower When Turning on)7.After the Welding Is Completed, Immediately Level the Joystick to Separate the Upper and Lower Pressure Wheels (to Prevent the Pressure Roller from Being Burned by High Temperature), Then Adjust the Temperature Speed to the Lowest, and Finally Shut down and Unplug the Power Supply.Welcom to ryxjanuary
