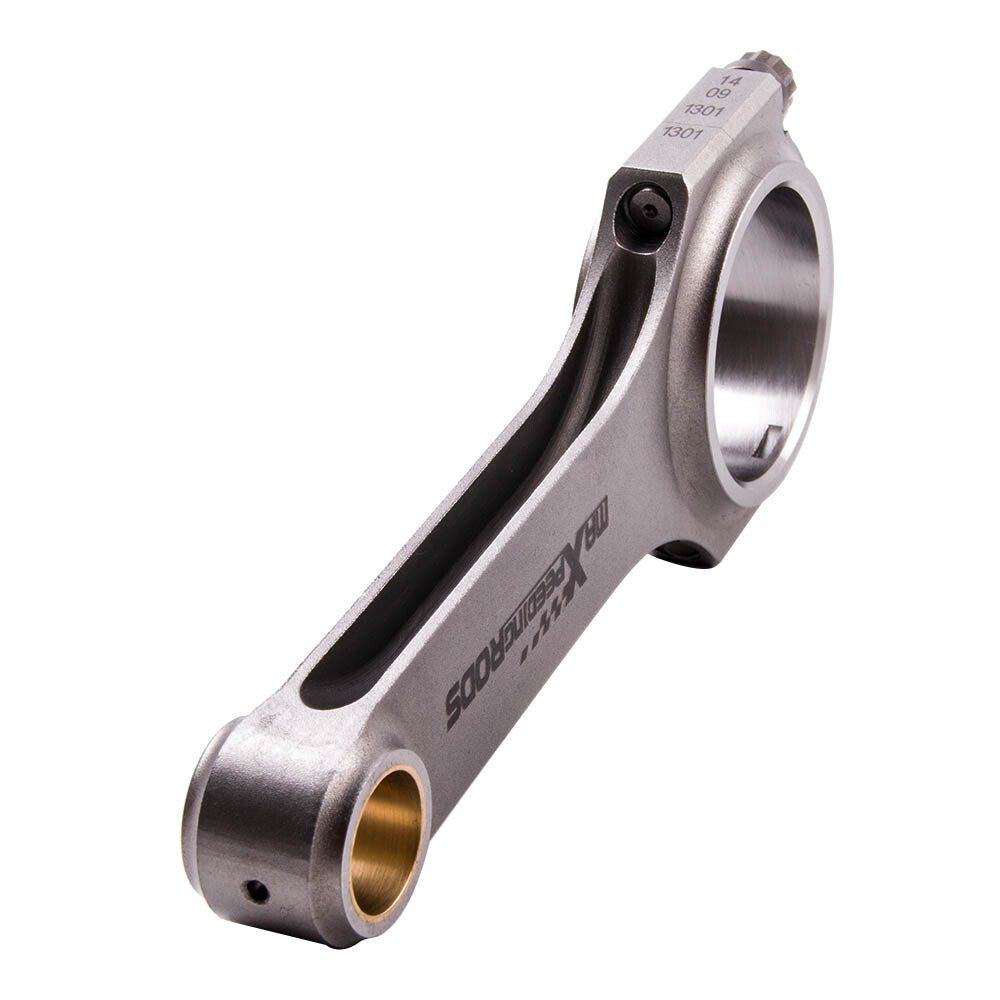

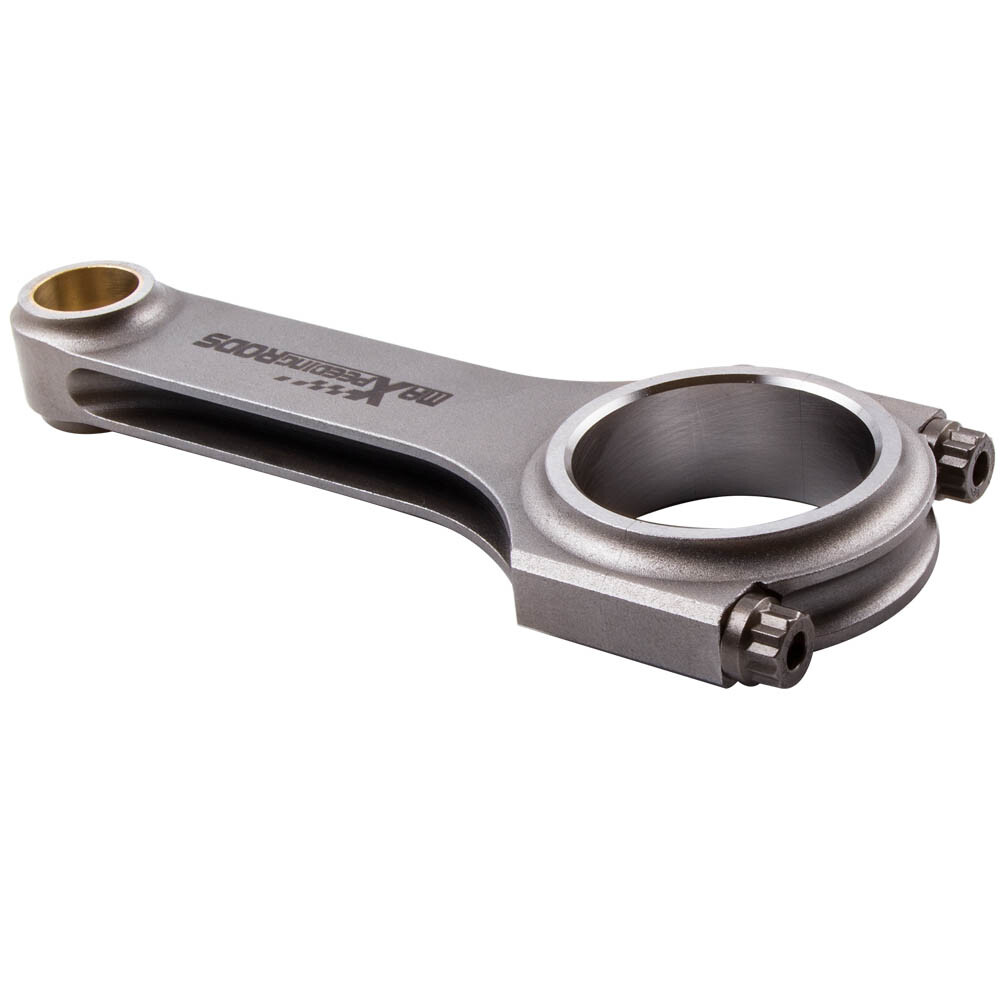

Toyota Celica 7AFE 1.8L H-Beam Connecting Rods 5.217" ARP2000
This listing is for a set of 4 H-beam connecting rods for a Toyota Celica with the 7AFE 1.8L engine. Condition is New, and it ships with Free Shipping as stated in the listing. Use this part to replace or build an engine setup where compatible connecting rods are required. Verify fitment for your specific year and application, and check the listing for details on included hardware, measurements, and any additional specifications or installation requirements.
| Location | Dayton US |
| Shipping | Free shipping (check listing for details) |
| Seller |
topautoturning
99.5% positive · 4393 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2025-12-02T02:41:40.000Z |
| Big end diameter | 51mm |
| Brand | maXpeedingrods |
| California Prop 65 Warning | California Prop 65 Warning |
| Center to center length | 132.5mm |
| Fitment Type | Direct Replacement |
| Manufacturer Part Number | WJ4V1L |
| Manufacturer Warranty | 2 Years |
| Material | Steel |
| Note | No Instruction included |
| Notice | This is aftermarket replcement part |
| Part Brand | maXpeedingrods |
| Pin Type | Bronzed bushing floating pin |
| Quantity | Set of 4 Pieces |
| Small end diameter | 20.01mm |
| Surface Finish | Extra cost for upgrading to ARP L19 bolts |
| Type | Connecting Rod Set |
| Weight Tolerance | Balanced to +/- 1 gram in set |
| UPC | 6941538377445 |
TATIT @media (min-width: 750px) } footer p section , , , , p img ul li label a img @media only screen and (max-width: 468px) main , img span span:last-child img main ul:first-child ul li input input + label label input + label + div input:checked + label input:checked + label + div li:nth-child(3n) span span:last-child ul ul li label + input + input + div + input:checked + div p p a a:nth-child(2n) a:nth-child(3) table table tr th table tr:nth-child(odd) footer footer img a img footer li p li li img , p , li img:first-child img footer span + input + input + div + input:checked + div ul li ul li:hover ul li:hover a ul li a + input + input + div + input:checked + div } 4x H-Beam Connecting Rod Rods For Toyota CELICA 7AFE 1.8L Engine 5.217" ARP2000 ul ul li ol ol li img ARP Bolts The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED Forged 4340 Steel Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing. H-Beam Design H-Beam helps improve stiffness, reduce stress risers and weight. Horsepower Rating Advertised horsepower rating: 600HP-800HP. High Precision Control Balanced within:+/- 1 gram per rod,Bores finished to:+/- or ". ARP 2000 Bolts With Standard Original ARP 2000 Bolts. Upgradable ARP L19 Bolts Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM. Application For Toyota 7AFE 1.8L Engine For Toyota CELICA 1.8L (16 VALVES) 1993-1997 For Toyota COROLLA 1.8L (16 VALVES) 1993-1997 For GEO PRIZM 1.8L (16 VALVES) 1992-1997 Pin Type Floating Pin Piston Dimension Center to center length 132.5mm/5.217" Big end diameter 51mm/2.008" Small end diameter 20mm/0.787" Big end width 21.8mm/0.858" Small end width 21.8mm/0.858" Specification Quantity 4 Pieces as showing in picture Bolts Including ARP 2000 bolts Bolts Size ARP 2000 3/8" bolts Bores finished to +/- or " Balanced to within +/- 1 g per rod Advertised Horsepower Rating 600HP-800HP Top acceleration 9000rpm Strength of the fastening PSI 220,000/230,000 PSI Torque: 48ft ≈ 65 NM Warranty 2 years warranty for any manufacturing defect Package
size 28CM*21CM*10CM Note *Professional installation is highly recommended ；*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. img Other items you might also like Coilover Fixing Ring Adjustment Tool Coilovers C Spanner Wrench Allen Wrenches Steel Connecting Rods for Toyota Camry MR2 Celica GT SX 5SFE 5S-FE 2.2L Conrod CV Axle Shaft Front Left & Right Set for Toyota Corolla DX CE LE Base 1993-02
