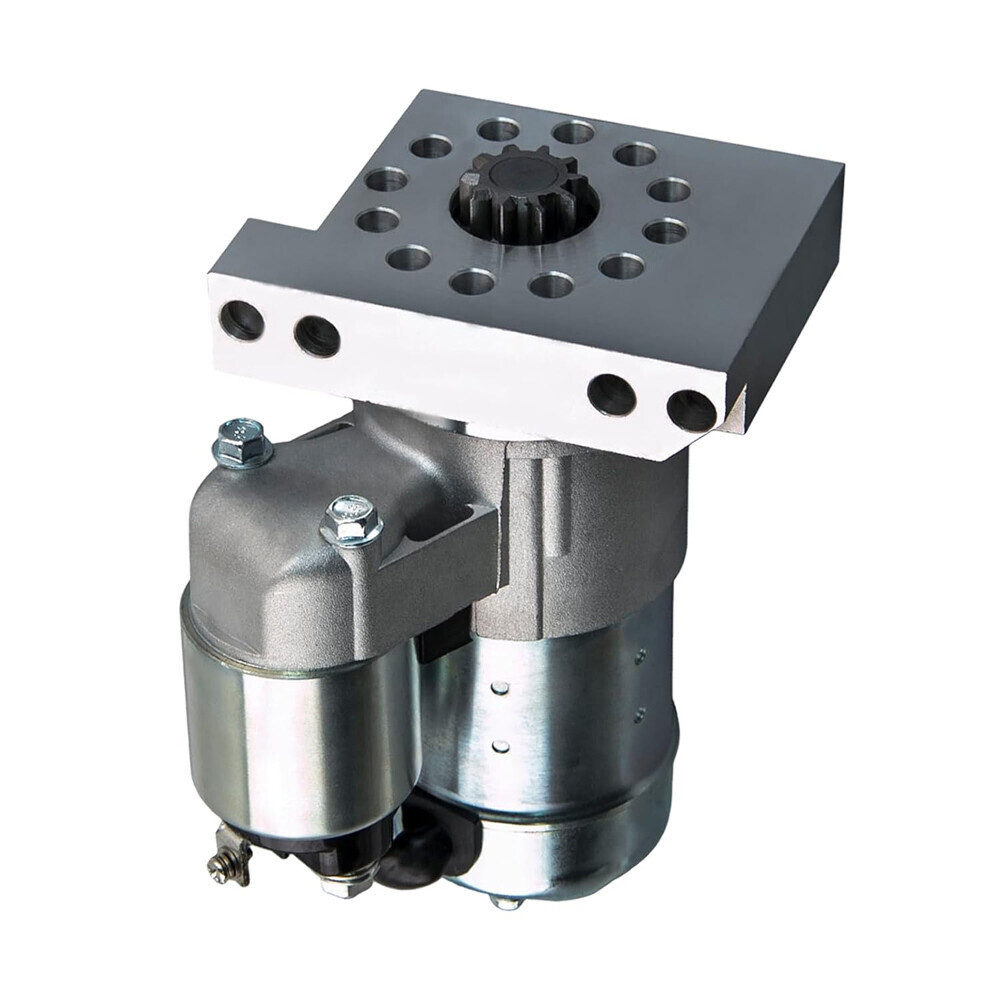

New Starter Motor for Chevy SBC BBC GM Super Mini High Torque 1.4KW CW 10 Teeth

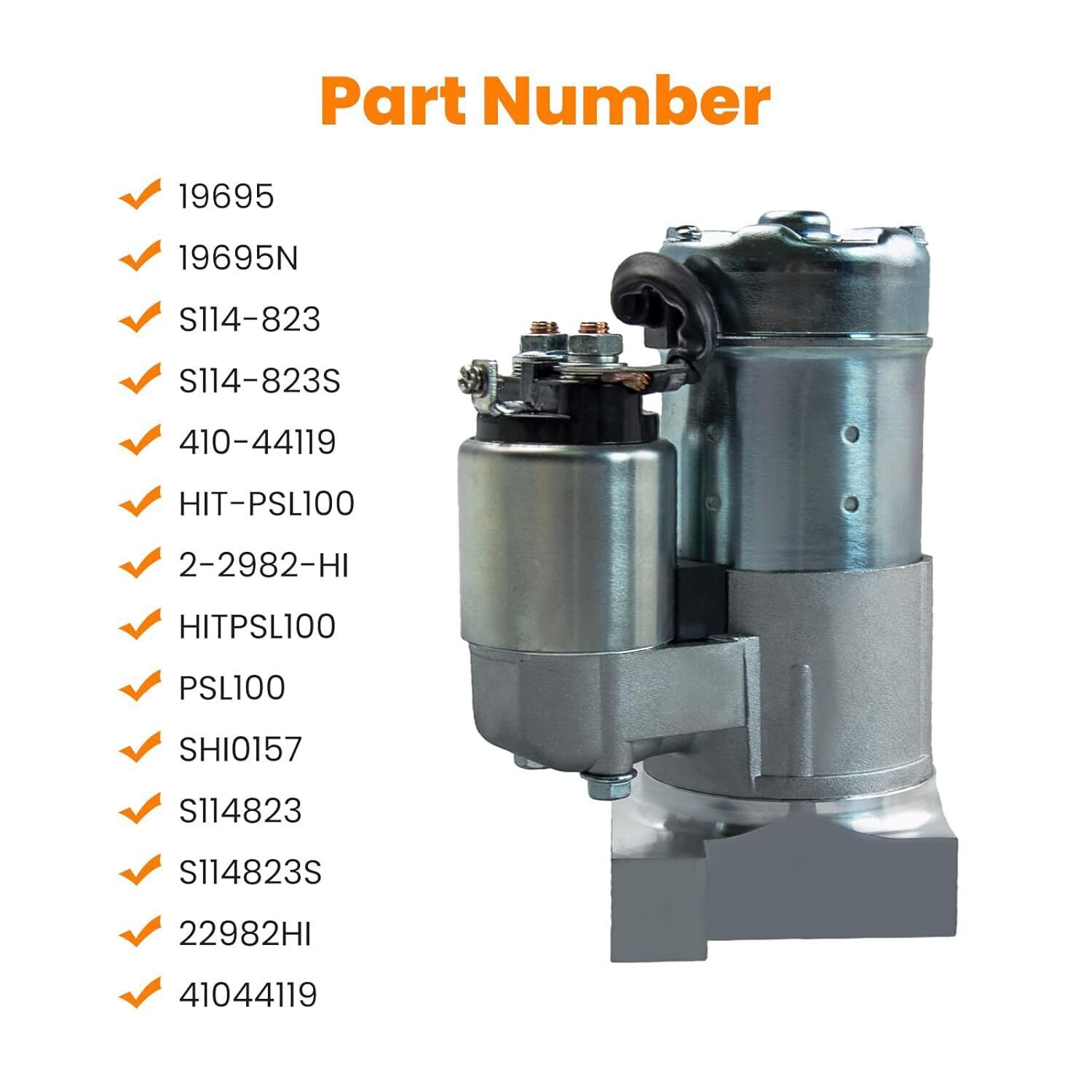

Starter Motor for Chevy SBC BBC GM Super Mini High Torque 1.4KW CW 12V 10 Teeth Item Description Fitment: The starter for Chevy Small & Big Block A/T or M/T with 153 or 168 Tooth Ring Gear (Maximum Recommended Compression Ratio: 15.1:1, Gear Reduction Ratio: 3.73:1)Vehicle Refenrence: Fits for Chevrolet AstroBase 1985-2002 V6 4.3L, AstroCL 1985-1995 V6 4.3L, AstroCS 1985-1994 V6 4.3L, AstroLT 1987-2002 V6 4.3L, Bel AirBase 1970-1975 V8 7.4L, BiscayneBase 1970-1972 V8 7.4L, BlazerBase 1973-1999 V6 4.3LPart Number: 19695, 19695N, S114-823, S114-823S, 410-44119, HIT-PSL100, 2-2982-HI, HITPSL100, PSL100, SHI0157, S114823, S114823S, 22982HI, 41044119Specification: 153/168 Tooth Flywheel; 12V Voltage; 10 Teeth; 1.4kW/1.88HP Power; CW Rotation; PMGR Starter Type; 1.102 in / 28 mm Gear ODWhy Choose Us: Starter motor are all tested for reliability, durability and performance. Meet or exceed OEM

specifications SpecificationsCondition:100%

Brand NewWarranty: 90 DayFree Return:30 DayColor:SilverTooth Flywheel: 153 / 168Voltage: 12Number of Teeth:10Power: 1.4kW / 1.88HPRotation: CWStarter Type: PMGRGear OD: 1.102in / 28mm FitmentChevy V8 Small/Big Block, V6, A/T or M/T with 153 or 168 Tooth Ring Gear.Chevrolet AstroBase 1985-2002 V6 4.3LChevrolet AstroCL 1985-1995 V6 4.3LChevrolet AstroCS 1985-1994 V6 4.3L Chevrolet AstroLT 1987-2002 V6 4.3LChevrolet Bel AirBase 1970-1975 V8 7.4LChevrolet BiscayneBase 1970-1972 V8 7.4LChevrolet BlazerBase 1973-1999 V6 4.3Lfor Hatachi: S114-823, S114-823S Please Double-Check that this is compatible with your vehicle. OE Number: 19695, 19695N, S114-823, S114-823S How to Install a Car StarterBefore replacing the starter, note down where every wire and electrical connection is located in the starter and solenoid. This way, you won’t forget what goes where after the starter motor replacement is doneStep1: Turn off the ignition and remove the negative battery cable from the battery（You will not need to remove the positive cable on the battery）Step2:Jack up the vehicle if need be.Ensure you jack the vehicle up on firm, level groundStep3:Locate the starter.The smaller cylinder attached to the starter is the starter solenoid.A wire should run directly from the positive terminal on the battery or from the fuse box under the hood to the top terminal on the starter solenoid.Step4:Disconnect the wiring to the solenoid.In some cases, it may just be clips you need to disconnect for the wiring.On some starters, you will need to loosen bolts or screws that hold the wires in place.Step5:Remove the starter retaining bolts then the starter.Don't force any bolts that are very tight and are difficult to remove.Rather, use a lubricant or grease to help you loosen the bolt.Be sure to use the correct

size socket, otherwise you risk damaging the bolts.Step6:Compare the new starter to the old one. Slide the starter into place.If the two starters don’t look mostly identical, it may not be the correct starter for your vehicle.New starter solenoids often come with four terminals, but can be used with only two.Step7:Insert the starter retainer bolts. Insert the starter into the same mounting location you removed the old one from.If the bolt does not thread properly, unscrew it and try again.Make sure the bolts are tight so they can’t vibrate loose while the engine is running.Step8:Connect the wiring to the starter solenoid.With the starter secured in place, reconnect the wiring you disconnected from the old starter onto the terminals on the new one. If your new solenoid has four terminals but your old one had two, only utilize the top and bottom terminal on the new solenoid. If your old one had four and the new one does as well, connect them to the same terminals they were connected to on the old one.Step9:Reconnect the battery.With the starter installed and wired, reconnect the black cable to the negative terminal on the battery and tighten it in place. Insert the key into the ignition and attempt to start the vehicle.If the vehicle fails to start with the new starter in place, ensure the battery is fully charged.Step10:Listen to the vehicle as you attempt to start it.As you turn the key in the ignition, listen for the sounds the engine makes to help determine if you have an issue with your starter. If the engine makes no sound whatsoever, or you hear only a faint clicking, it may be because there isn’t enough power reaching the electric starter motor.Step11:Ensure the battery terminals are clean and secure.Charge your vehicle’s battery.A weak connection from the battery can prevent the engine from starting.Wear gloves when cleaning battery terminals to avoid getting battery acid on your skin.Step12:Check to see the starter solenoid is bad.If the test light does not light up, it means power is not reaching the starter motor due to a faulty solenoid or a dead battery.If the test light does light up, it means the solenoid is good, but the starter itself may have failed.Step13: Charge your vehicle’s battery. If you suspect the battery may simply be low on power, try charging it using either a trickle charger or another vehicle to jump start it.Step14：Perfect installation,go to try it Package Included1x Starter As pictures show FAQ:I purchased by mistake, how do I cancel the order?Please contact us ASAP. If the item has not been shipped out we can cancel the order for you. If the item was shipped out you can refuse the package and wait for the item to return to us.I received your item but it does not fit or is defectivePlease contact us so we can assist you on the matter.Buy with confidenceOur quality is based on meeting the requirements of the manufacturer and improvement them in design problems manufacture.NOTE:(1)It would be highly appreciated if you might contact us first once you have any problems concerning the items. And you can expect all the issues would be resolved ASAP!(2)Please let us know before you send us the neutral/negative feedback that wont help to finish the issues. And I will definitely try my best to provide the best solutions which would meet our satisfactory!(3)According to the distance of the receipt address items would be sent from CA or NJ(4)This product does not include an installation manual
