specification 3.93inch-1.96inch/100mm-50mm Working air pressure 0.6-0.8MPa Max working height 10.6inch/270mm

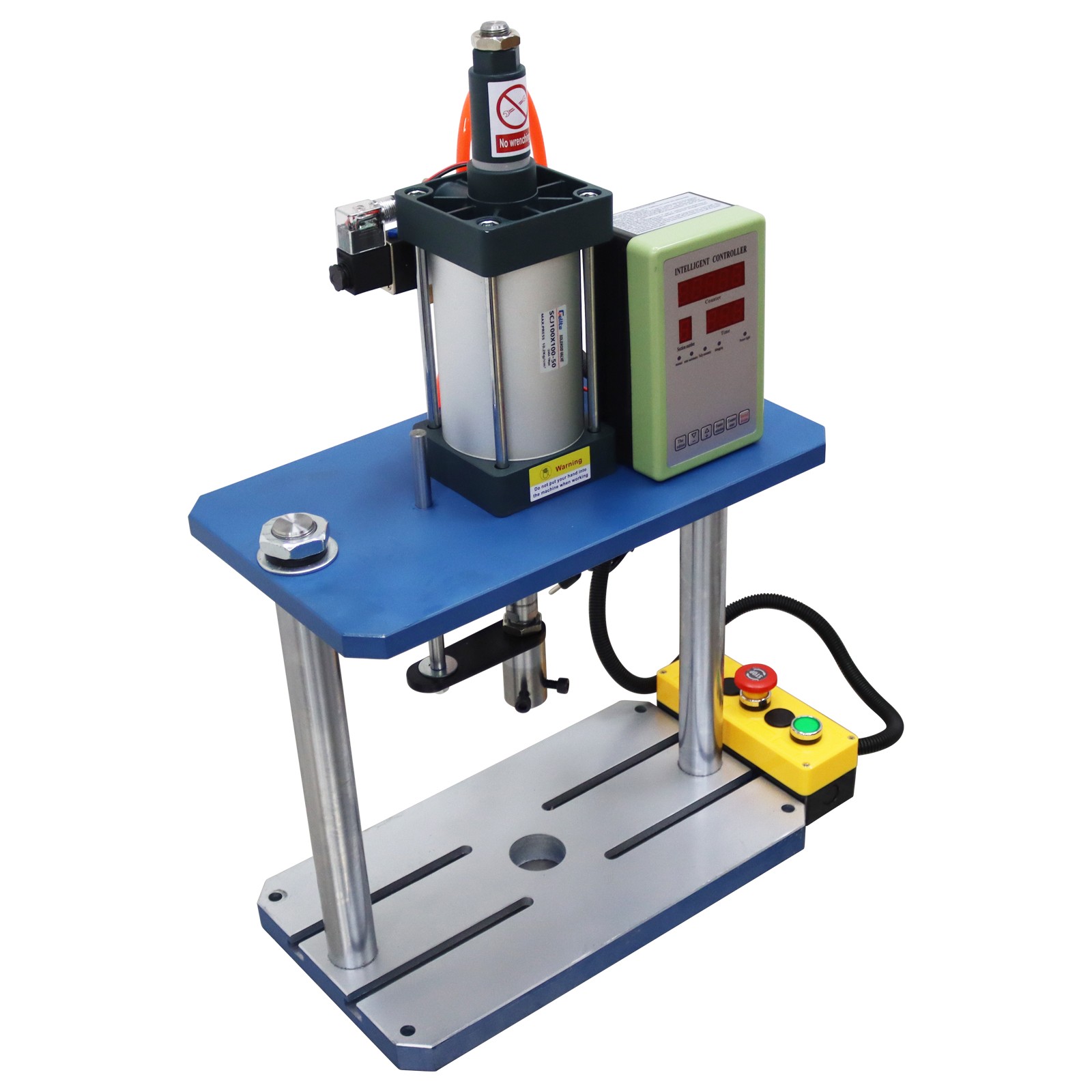

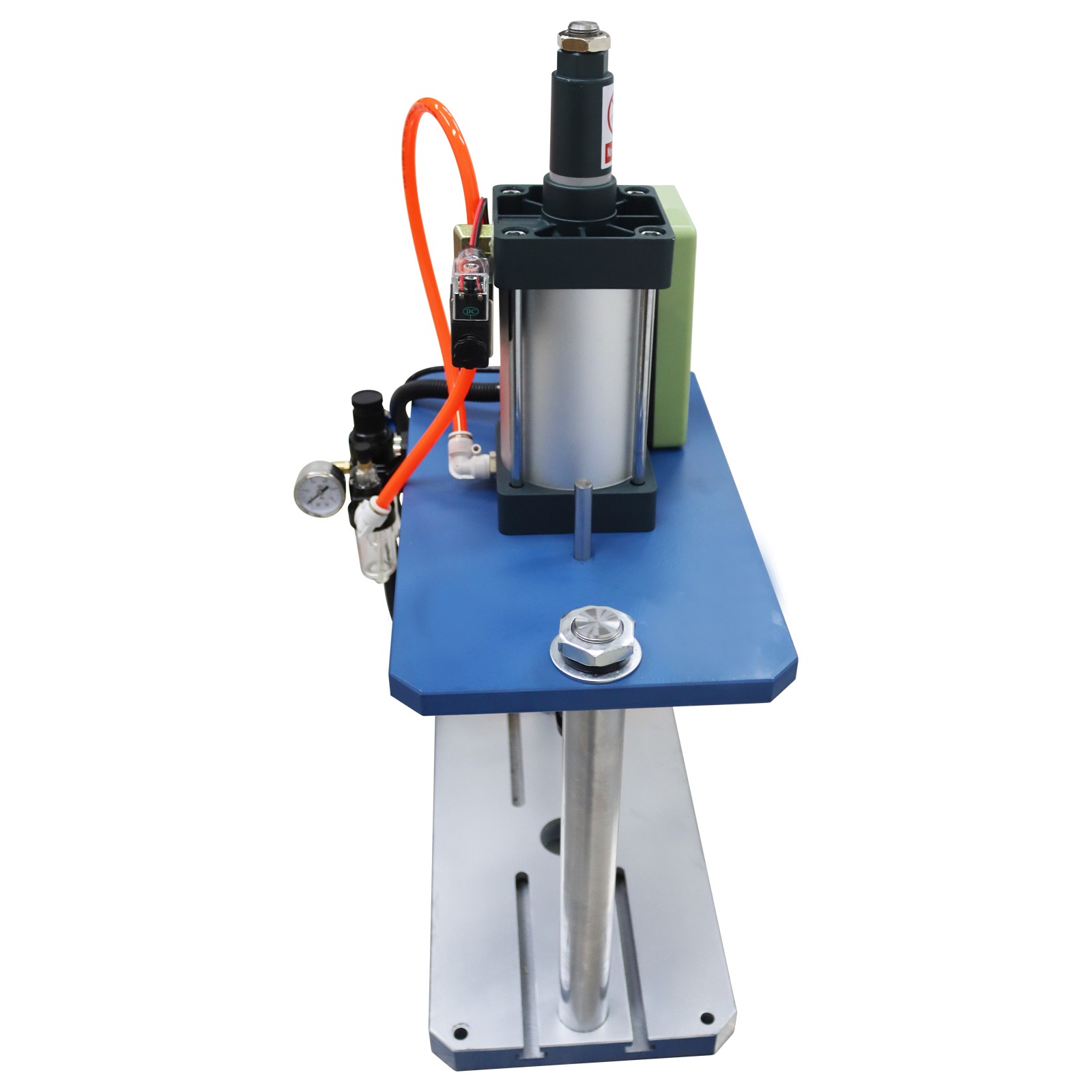

Material Cast iron Product Features The pneumatic press is the high-pressure gas produced by the compressor, which is transported to the solenoid valve through the gas pipe. The working state of the cylinder is controlled by the movement of the solenoid valve through the switch, and the punching is completed. 1 air as power source, high efficiency and easy operation, can reduce labor, can be applied to manual operation integration, automated assembly line . 2 structure, convenient operation, cheap price, superior performance, no noise produced during the electric standby, can save electricity consumption reduce production cost, has the very high cost performance . 3. Easy adjustment of output, need to adjust the air pressure is adjustable up to the required pressure, high yield. 4.Equipped with guide plate, high accuracy, can adapt to high speed precision impact load . 5.According to different products or mould, adjust the speed, and the

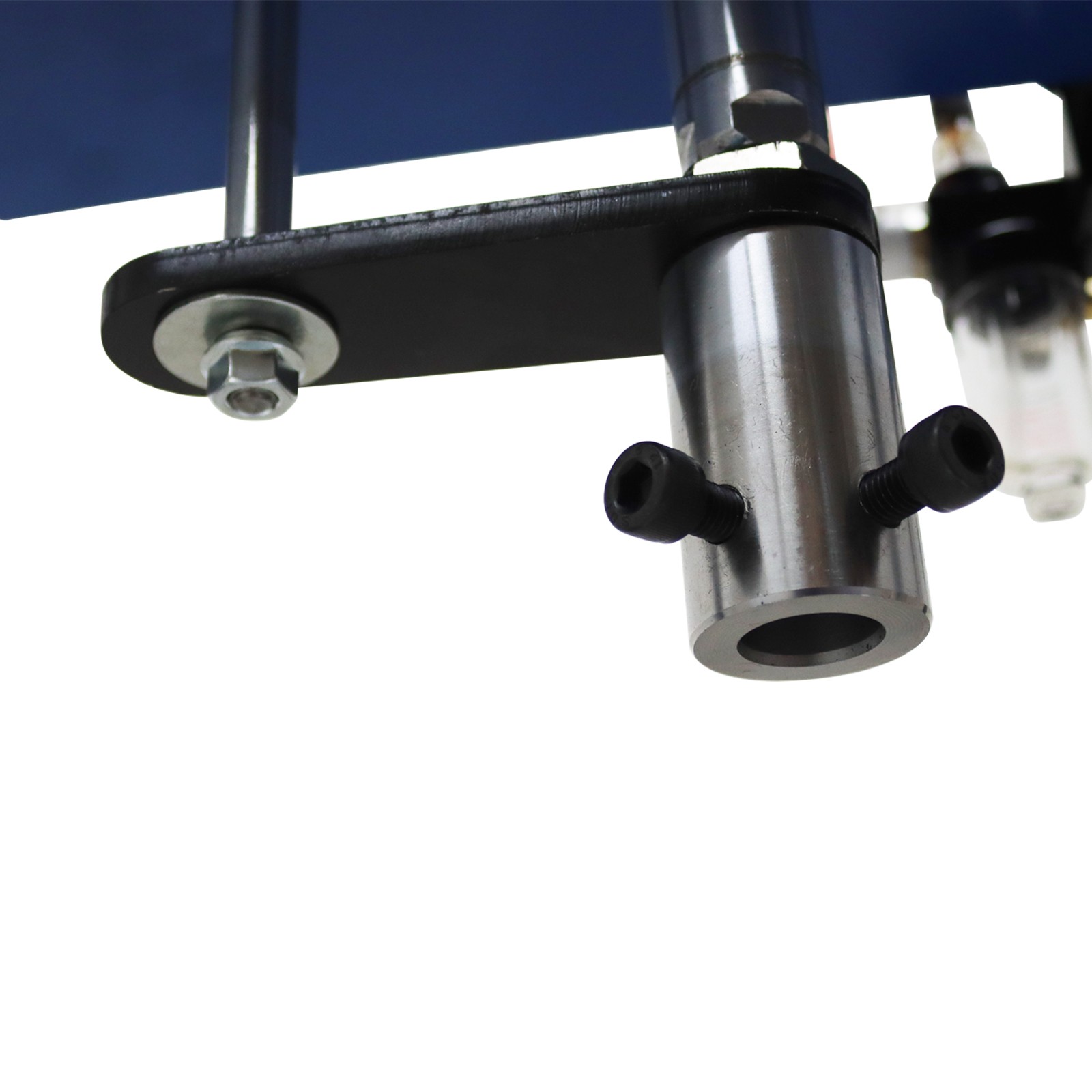

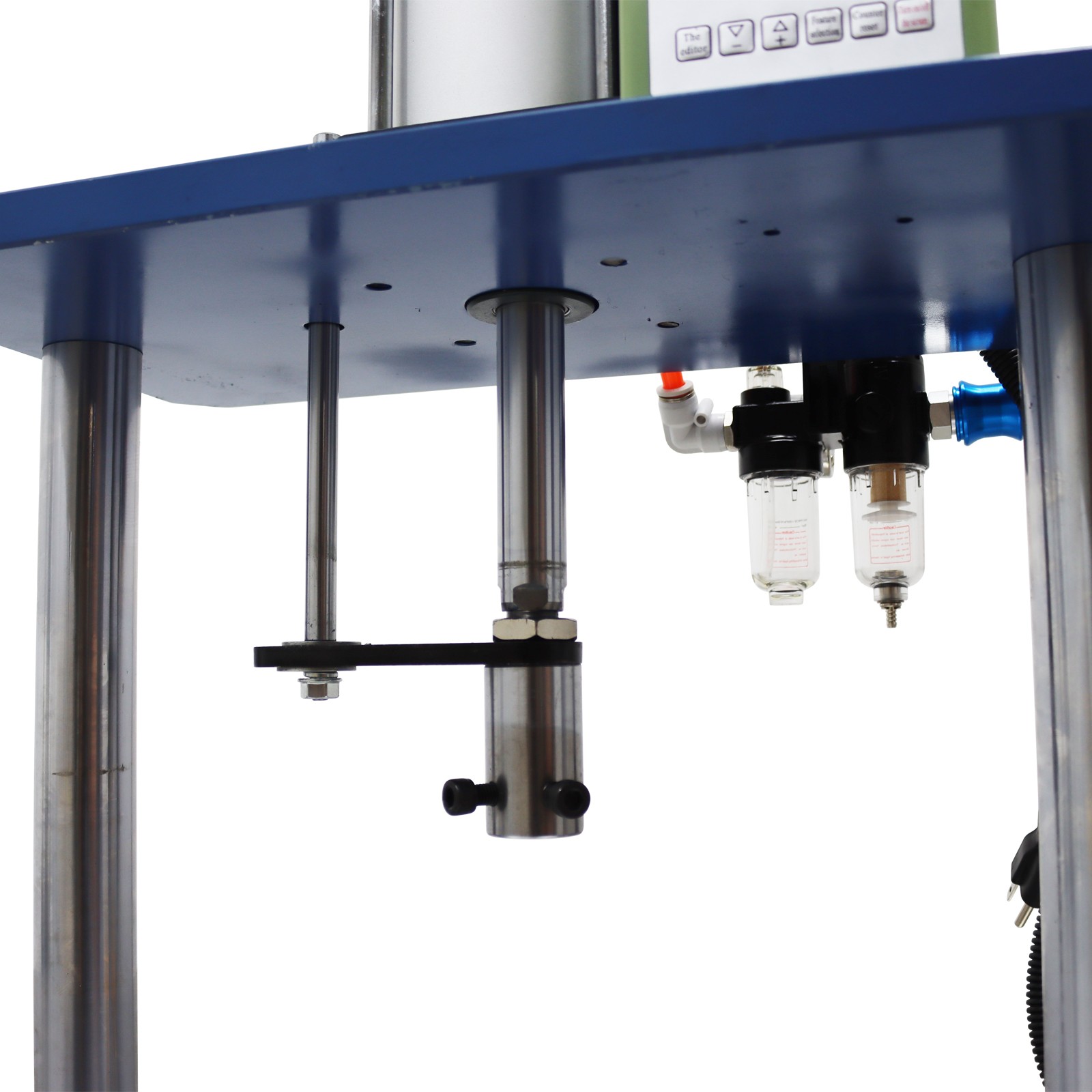

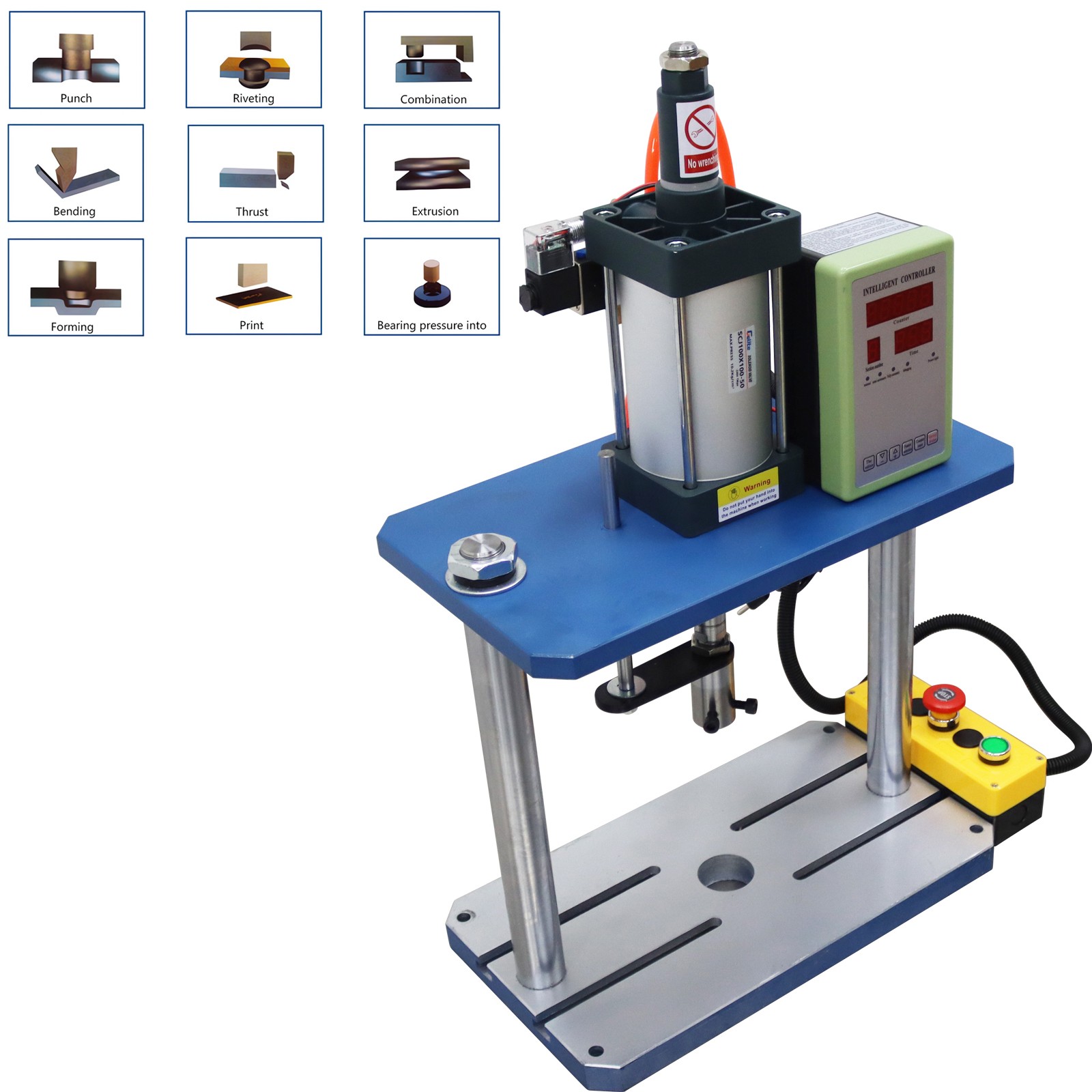

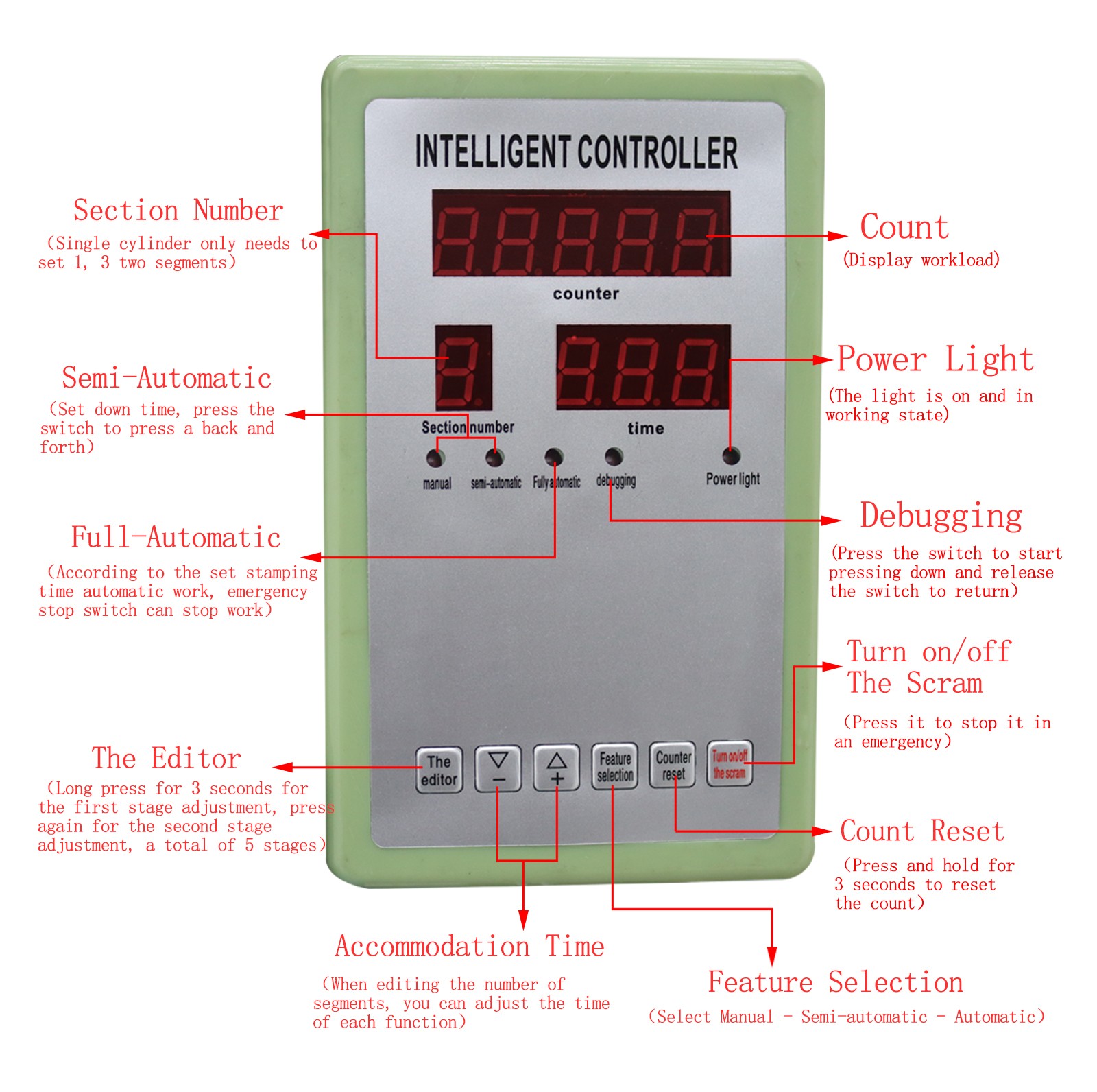

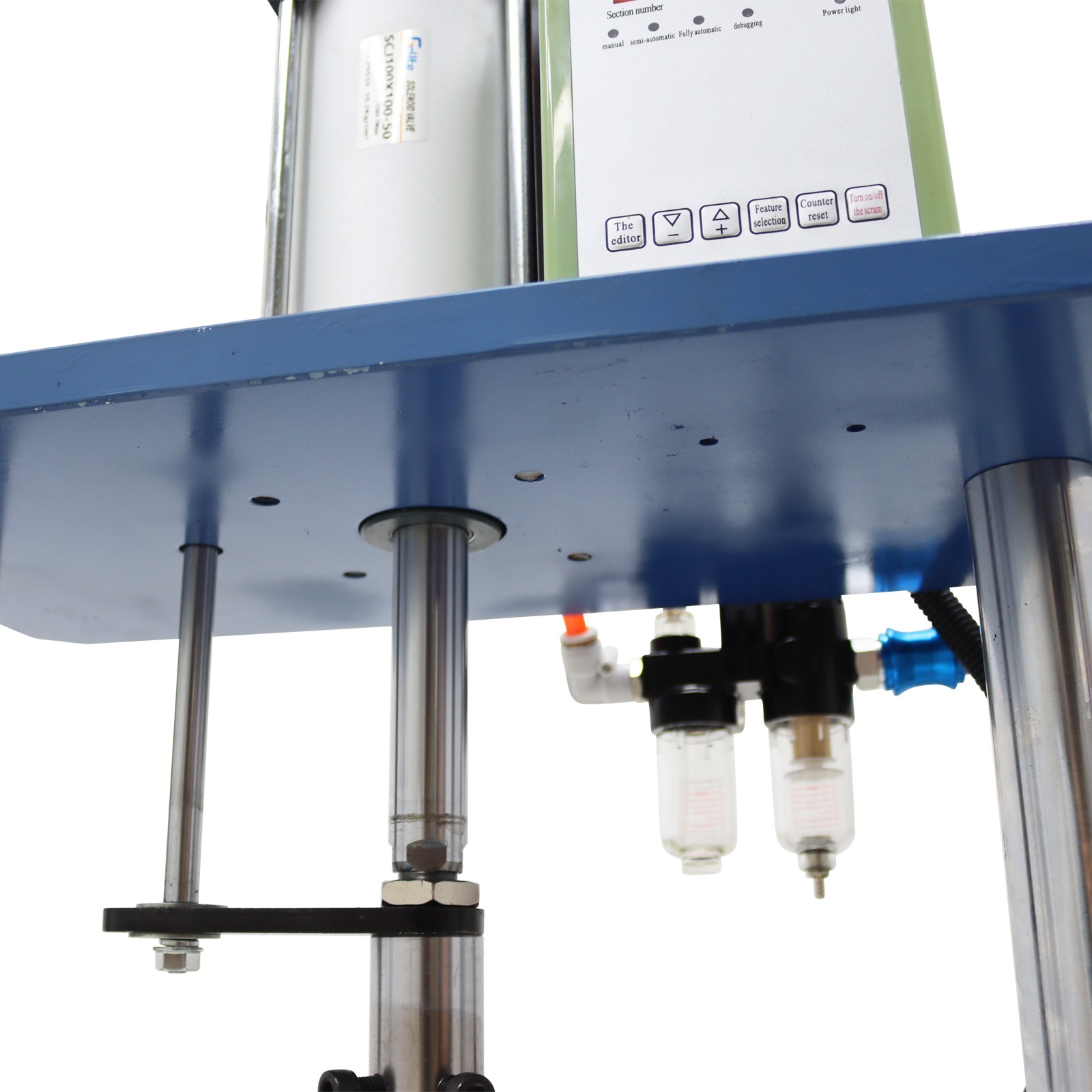

size of the pressure and stamping time . 6.Optional manual switch control, with emergency stop switch, can also be controlled by a controller. 7.Microcomputer control system, can choose manual, semi- automatic and fully automatic operation. Range of application Suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware and garment, shoes and hats. Air source processor, through the pressure gauge at any time to observe the change of air source pressure, effective separation of water, oil and other impurities in the air, air purification, improve the service life of the machine. High quality cylinder SCJ100*100- 50mm, quick action, quick response, travel can be adjusted within the effective range. Equipped with a controller, easy to switch between manual operation and automatic operation . Two-handed switch, two-handed operation, safer. Equipped with emergency stop switch, one key stop, more efficient. A clamp with an inner diameter of 0.78 ", equipped with a guide plate, is more precise and stable. Widened and enlarged work surface , T-slots for easy securing of items. Note
