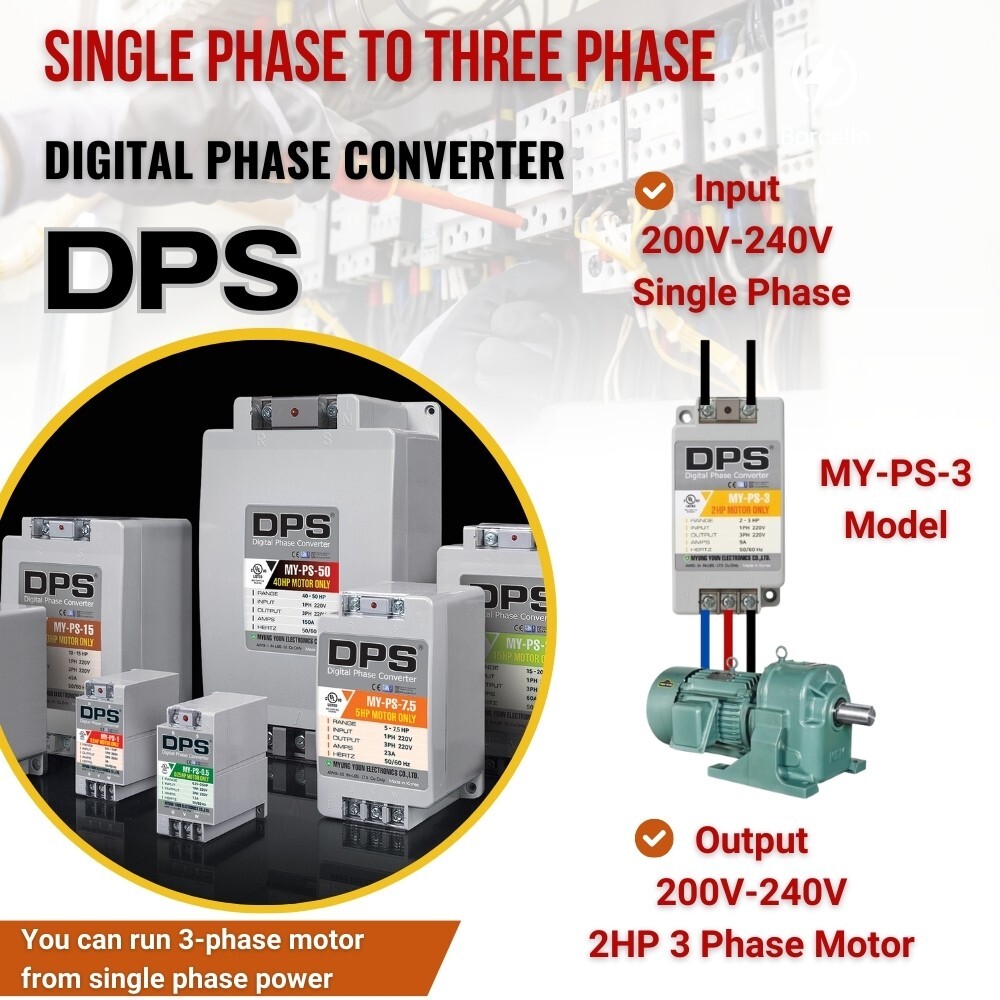

Single to 3 Phase Converter Used for 2HP(1.5kW) 6Amps 200-240V Motor UL/CE
Check the listing for details.
| Location | Incheon KR |
| Shipping | Free shipping (check listing for details) |
| Seller |
gnstech
0.0% positive
|
| Listing | FixedPrice · Active |
| Start time | 2025-01-02T09:09:54.000Z |
| Mounting Style | Stand Alone |
| phase converter | DPS |
| Suitable Load Type | Easy Load |
| Conversion Type | 1 to 3 Phase |
| Output Current | 6A |
| MPN | MY-PS-3-GNS |
| Input Voltage | 220 V |
| Item Depth | 4.5in |
| Operating Frequency | 50Hz/60Hz |
| Brand | DPS |
| Type | Digital Static Phase Converter |
| Unit Type | Unit |
| Horsepower | 2 hp |
| Item Height | 6.1in |
| Country/Region of Manufacture | Korea, Republic of |
| Unit Quantity | 1 |
| Output Voltage | 220 V |
| Item Width | 3.1in |
| Input Current | 6.6A |
Bullet pointSingle phase 200V-240V to 3 phase 200V-240VVery easy to install and use/Compact
size & lightweightSafety covers are installed on the input and output terminalsAchieved UL listed(UL-US-2328605-1/UL-CA-2324527-1)Even after the motor starts, 3-phase power continues to be suppliedExcellent starting power/Digital type phase converterThe sealed design blocks out dust, moisture and heatNo high frequency generation/Low power consumptionDesigned for low failure rate/non-flammabilityEfficiency is excellent versus others phase convertersDescriptionMY-PS-3 model should be used for a 200V-240V 2HP(1.5kW) 6amps 3 phase motor.Check the motor’s rated current(A), horsepower(HP), and voltage(V). DPS is a product that runs a 200V-240V 3 phase motor from single phase 200V-240V.The DPS is equipped with safety covers on the input and output for customer safety.One DPS must be used for only one motor. One DPS should never be used on multiple motors.If you are unsure about selecting a DPS model, contact the seller or manufacturer.After purchasing, thoroughly read the user manual enclosed with the product and then install the DPS on the motor.Installation method is simple. Simply connect the 2 input wires to the DPS input and the 3 wires of the motor to the DPS output.
