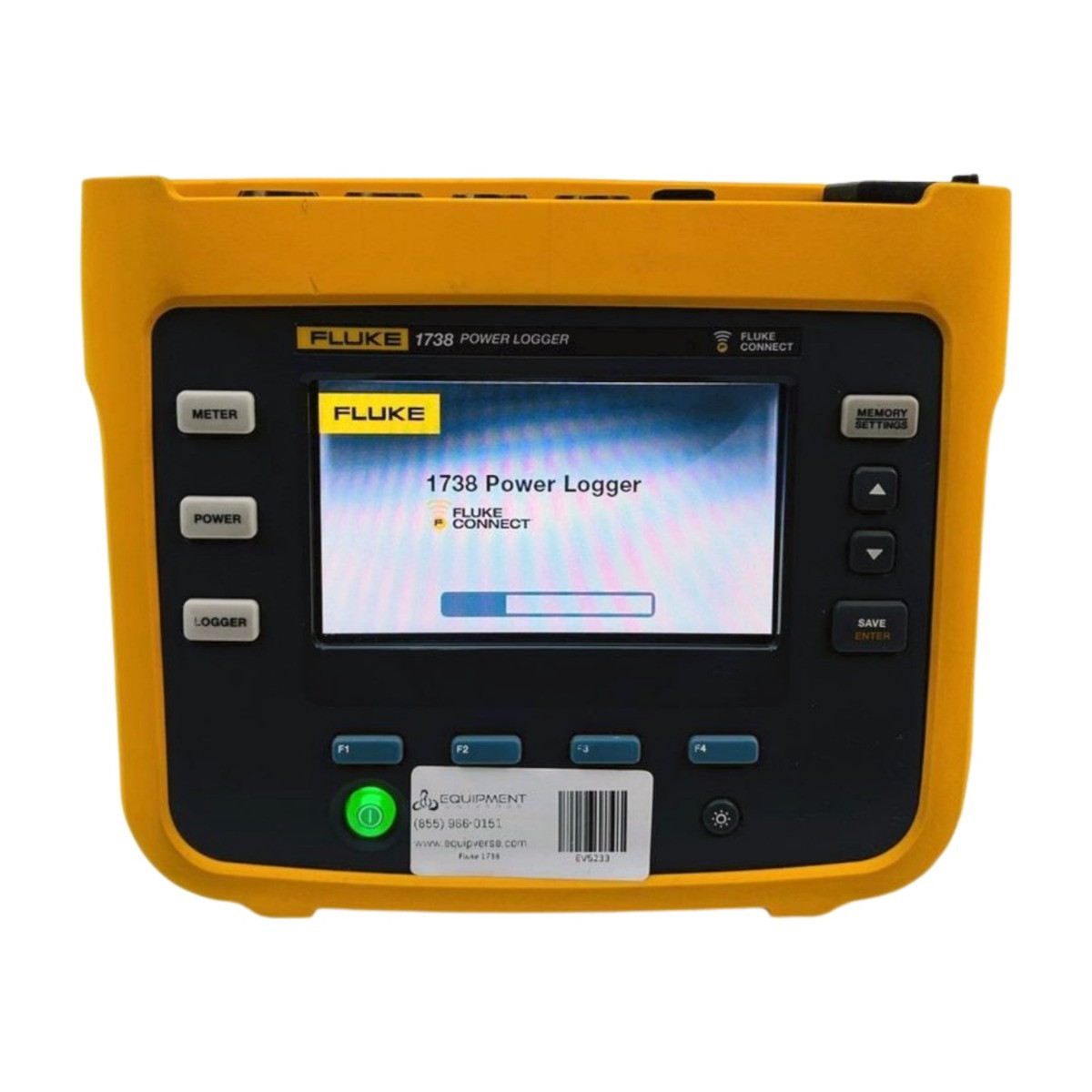

Fluke 1738 Three Phase Power Quality Logger Analyzer This is a used Fluke 1738 Three Phase Power Quality Logger Analyzer that is tested and working. Includes: Fluke 1738 Three-Phase Power Quality Logger Analyzer 4-Phase Flexi-Set 1500-12 Voltage Test Lead 1738 Voltage Probe (4) Alligator Clips AC Adapter/Charger Carrying Case The Fluke 1736 and 1738 Three-Phase Power Loggers built with Fluke Connect® mobile app and desktop software compatibility give you the data you need to make critical power quality and energy decisions in real-time. The ideal test tools for conducting energy studies and basic power quality logging, the 1736 and 1738 automatically capture and log over 500 power quality parameters so you have more visibility into the data you need to optimize system reliability and savings. An optimized user interface, flexible current probes, and an intelligent measurement verification function that allows you to reduce measurement errors by digitally verifying and correcting common connection errors makes setup easier than ever and reduces measurement uncertainty. Access and share data remotely with your team via the Fluke Connect® app so you can maintain safer working distances and make critical decisions in real-time, reducing the need for protective equipment, site visits and check-ins. You can also quickly and easily chart and graph measurements to help identify issues and create detailed reports with the included Fluke Energy Analyze Plus software package. Measure all three phases and neutral with included 4 flexible current probes. Comprehensive logging: More than 20 separate logging sessions can be stored on the instruments. In fact, all measured values are automatically logged so you never loose measurement trends. They can even be reviewed during logging sessions and before downloading for real-time analysis. Capture dips, swells, and inrush currents: includes event waveform snapshot and high resolution RMS profile, along with date, timestamp and severity to help pinpoint potential root causes of power quality issues. Bright,

color touch screen: Perform convenient in-the-field analysis and data checks with full graphical display Optimized user interface: Capture the right data every time with quick, guided, graphical setup and reduce uncertainty about your connections with the intelligent verification function Complete “in-the-field” setup through the front panel or Fluke Connect App: no need to return to the workshop for download and setup or to take a computer to the electrical panel. Easy to use The four current probes are connected separately; the instrument automatically detects and scales the probes. The thin current probes are designed to easily get through tight conductor spacing and are easily set to 150 or 1500 A for high accuracy in nearly any application. An innovative tangle-free flat voltage lead makes connection simple and reliable and the instrument’s intelligent ‘Verify Connection’ feature automatically checks to make sure the instrument is connected correctly and can digitally correct common connection issues without having to disconnect measurement leads. The detachable power supply can be conveniently and safely powered directly from the measured circuit—no more searching for power outlets or having to run multiple extension cords to the logging location. Analysis and Reporting Capturing logged data is just one part of the task. Once you have the data, you need to create useful information and reports that can be easily shared and understood by your organization or customers. Fluke Energy Analyze Plus software makes that task as simple as possible. With powerful analysis tools and the ability to create customized reports in minutes you’ll be able to communicate your findings and quickly solve problems so you can optimize system reliability and savings. Specifications: Accuracy Parameter Range Max. resolution Intrinsic accuracy Voltage 1000 V 0.1 V ± (0.2 % + 0.01 %) Frequency 42.5 Hz to 69 Hz 0.01 Hz ± (0.1 %) Aux input ± 10 V dc 0.1 mV ± (0.2 % + 0.02 %) Voltage min/max 1000 V 0.1 V ± (1 % + 0.1 %) Current min/max defined by accessory defined by accessory ± (5 % + 0.2 % THD on voltage 1000% 0.1 % ± 0.5 THD on current 1000% 0.1 % ± 0.5 Voltage harmonics 2nd 1000 V 0.1 V ≥ 10 V: ± 5 % of reading < 10 V: ± 0.5V Current harmonics 2nd defined by accessory defined by accessory ≥ 3 % of current range: ± 5 % of reading< 3 % of current range: ± 0.15 % of range Unbalance 100% 0.1 % ± 0.2 Electrical

specifications Power supply Voltage range 100 V to 500 V using safety plug input when powering from the measurement circuit100 V to 240 V using standard power cord (IEC 60320 C7) Power consumption Maximum 50 VA (max. 15 VA when powered using IEC 60320 input) Efficiency ≥ 68.2 % (in accordance with energy efficiency regulations) Maximum no-load consumption < 0.3 W only when powered using IEC 60320 input Mains power frequency 50/60 Hz ± 15 % Battery Li-ion 3.7 V, 9.25 Wh, customer-replaceable On-battery runtime Four hours in standard operating mode, up to 5.5 hours in power saving mode Charging time < 6 hours Data acquisition Resolution 16-bit synchronous sampling Sampling frequency 10.24 kHz at 50/60 Hz, synchronized to mains frequency Input signal frequency 50/60 Hz (42.5 to 69 Hz) Circuit types 1-ϕ, 1-ϕ IT, split phase, 3-ϕ delta, 3-ϕ wye, 3-ϕ wye IT, 3-ϕ wye balanced, 3-ϕ Aron/Blondel (2-element delta), 3-ϕ delta open leg, currents only (load studies) Data storage Internal flash memory (not user replaceable) Memory

size Typical 10 logging sessions of 8 weeks with 1-minute intervals and 500 events Basic interval Measured parameters Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy Averaging interval User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min Averaging time min/max values Voltage, Current: Full cycle RMS updated every half cycle (URMS1/2 according to IEC61000-4-30 Aux, Power: 200ms Demand Interval (Energy Meter Mode) Measured parameters Energy (Wh, varh, VAh), PF, maximum demand, cost of energy Interval User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off Power quality measurements Measured parameter Voltage, frequency, unbalance, voltage harmonics, THD V, current, harmonics, THD A, TDD Averaging interval 10 min Individual harmonics 2nd ...50th harmonic Total harmonic distortion Calculated on 50 harmonics Events Voltage: dips, swells, interruptions, current: inrush current Triggered recordings Full cycle RMS updated every half cycle of voltage and current (Urms1/2 according to IEC61000-4-30) Waveform of voltage and current Standards Compliance Harmonics IEC 61000-4-7: Class 1IEEE 519 (short time harmonics) Power quality IEC 61000-4-30 Class S, IEC62586-1 (PQI-S device) Power IEEE 1459 Power quality compliance EN50160 (for measured parameters) Interfaces USB-A File transfer via USB flash drive, firmware updates, max. supply current: 120 mA WiFi File transfer and remote control via direct connection or WiFi infrastructure Bluetooth Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires 1738, or 1736 upgrade option) USB-mini Data download device to PC Voltage inputs Number of inputs 4 (3 phases and neutral) Maximum input voltage 1000 Vrms, CF 1.7 Input impedance 10 MΩ Bandwidth 42.5 Hz - 3.5 kHz Scaling 1:1 and variable Measurement category 1000 V CAT III/600 V CAT IV Current inputs Number of inputs 4, mode selected automatically for attached sensor Input voltage Clamp input: 500 mVrms/50 mVrms; CF 2.8 Rogowski coil input 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4; all at nominal probe range Range 1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 12”3 A to 300 A/30 A to 3000 A with thin flexible current probe i17XX-flex3000 24”6 A to 600 A/60 A to 6000 A with thin flexible current probe i17XX-flex6000 36”40 mA to 4 A/0.4 A to 40 A with 40 A clamp i40s-EL Bandwidth 42.5 Hz - 3.5 kHz Scaling 1:1 and variable Auxiliary inputs Number of inputs 2 Input range 0 to ± 10 V dc, 1 reading/s Scale factor Format: mx + b (gain and offset) user configurable Displayed units User configurable (7 characters, for example, °C, psi, or m/s) Wireless connection Number of inputs 2 Supported modules Fluke Connect® 3000 series Acquisition 1 reading/s Environmental

specifications Operating temperature -10 °C to +50 °C (14 °F to 122 °F) Storage temperature -20 °C to +60 °C (−4 °F to 140 °F), with battery: -20 °C to +50 °C (−4 °F to 122 °F) Operating humidity 10 °C to 30 °C (50 °F to 86 °F) max. 95 % RH30 °C to 40 °C (86 °F to 104 °F) max. 75 % RH40 °C to 50 °C (104 °F to 122 °F) max. 45 % RH Operating altitude 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV) Storage altitude 12,000 m Enclosure IP50 in accordance with EN60529 Vibration MIL-T-28800E, Type 3, Class III, Style B Safety IEC 61010-1IEC Mains Input: Overvoltage Category II, Pollution Degree 2Voltage Terminals: Overvoltage Category IV, Pollution Degree 2IEC 61010-2-031: CAT IV 600 V / CAT III 1000 V Electromagnetic Compatibility (EMC) EN 61326-1: Industrial CISPR 11: Group 1, Class AKorea (KCC): Class A Equipment (industrial broadcasting and communication equipment)USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 Temperature coefficient 0.1 x accuracy

specification/°C General Specifications Color LCD Display 4.3-inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel Dimensions Instrument: 19.8 cm x 16.7 cm x 5.5 cm (7.8 in x 6.6 in x 2.2 in)Power supply: 13.0 cm x 13.0 cm x 4.5 cm (5.1 in x 5.1 in x 1.8 in)Instrument with power supply attached: 19.8 cm x 16.7 cm x 9 cm (7.8 in x 6.6 in x 3.5 in) Weight Instrument: 1.1 kg (2.5 lb)Power supply: 400 g (0.9 lb) Tamper protection Kensington lock slot
