FNIRSI 2C23T/2C53T Digital Oscilloscope Multimeter Signal Generator

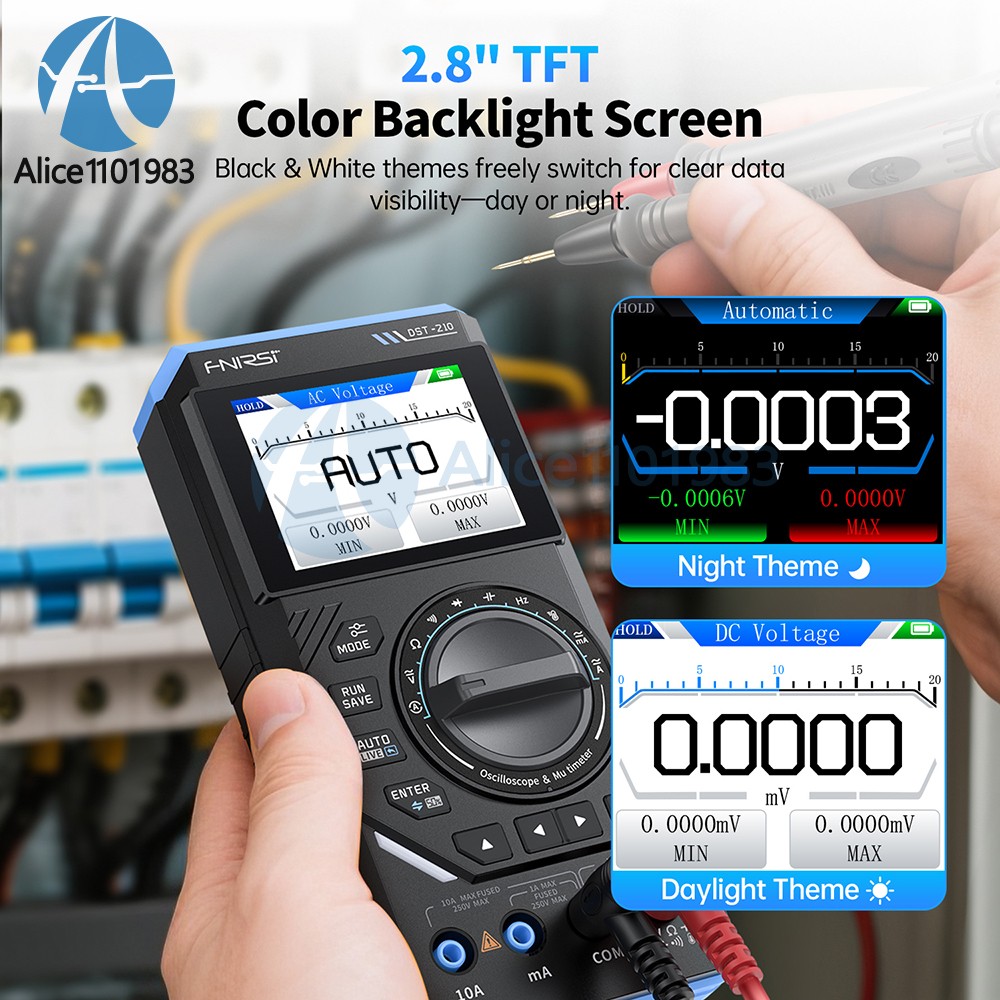

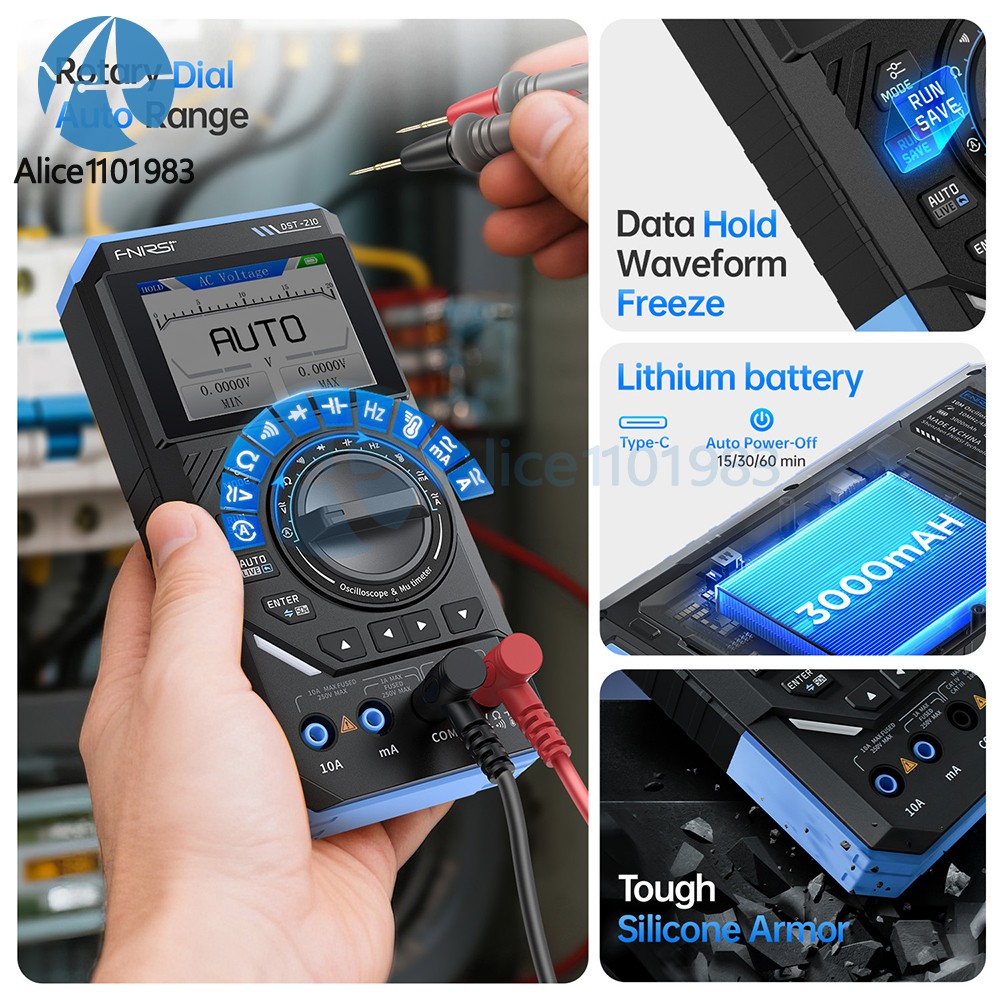

Product Details Model: 2C53T Features 1.4 half-true rms: 4 half-true rms voltage measurement, accurate measurement and fast response speed2.Intelligent anti-burning wrong file without burning the table: intelligent anti-burning with overload protection internal resistance double fuse, anti-burning table is safer.3. Function signal generator: can output sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave 13 kinds of signals, stable and reliable, high output accuracy.4. Automatic shutdown, high efficiency and long battery life: built-in 3000mAh high-capacity rechargeable lithium battery with automatic shutdown time setting 6 hours of long battery life, accompanied by your work all day!5. Wide range of accurate measurements: PWM pulse measurement, power supply ripple measurement, crystal measurement, utility measurement. Basic ParametersScreen: 2.8 inch true

color screenResolution: 320 * 240Charging: Type-C (5V/1A)Battery: 3000mAh lithium batterySupport functions: oscilloscope, signal generator, digital multimeter (see function parameters)Standby time: 6 hours (laboratory theory maximum) Oscilloscope ParametersChannel: dual-channelSampling rate: 250MS / sAnalog bandwidth: 50M (dual-channel independent 50M)Input impedance: 1MΩTime base range: 10ns-20sVertical sensitivity: 10mV/div-10V/div (X1 gear)Maximum measurement voltage: ±400VTrigger mode: automatic, normal, singleTrigger type: rising edge, falling edgeDisplay Mode: Y-T/Scroll/X-YCoupling: AC/DCAfterglow: OFF, 500ms, 1s, ∞Arithmetic: 8 kinds of basic arithmetic + FFT arithmeticWaveform Screenshot Saving: √Export waveform image: √Cursor Measurement: √ Function Signal Generator ParametersChannel: single channelFrequency: 1Hz-50KHzAmplitude: 0.1-3V Multimeter ParametersDC voltage: range 1.9999V/19.999V/199.99V/1000V, accuracy ± (0.5%+3)AC voltage: range 1.9999V/19.999V/199.99V/750.0V, accuracy ± (1% +3)DC current: range 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)AC Current: Range 19.999mA/199.99mA/1.9999A/9.999A, Accuracy ±(1.5%+3)Resistance: Range 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, accuracy ±(0.5%+3)Range 1.9999K2/199.990, accuracy ±(2.0%+3)Capacitance: Range 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, Accuracy ±(2.0%+5)Range 9.999mF/99.99mF, accuracy ±(5.0%+20)Temperature: Range (-55~1300℃)/(-67~2372℉), Accuracy ±(2.5%+5)Diode: √On-off: √ Package IncludesView images according to your choice. Model: 2C23T Features1. Dual-channel 3-in-1 digital oscilloscope: multimeter + oscilloscope + signal generator2.Dual-channel 2X10MHz bandwidth, isolated channels are independent of each other to avoid interference between them, more accurate signal detection3. Oscilloscope performance: hardware architecture and desktop computer with the same ARM + FPGA + high-speed ADC program, high cost, non-general CPU direct mining program, trigger system is powerful, with super waveform capture capability, waveform details are not lost4. One-key measurement: with a complete range of trigger modes: automatic, single, conventional equipped with efficient one-key automatic adjustment, without the need for cumbersome adjustment can display the measured signal waveforms5. Built-in double insurance tube intelligent anti-burn overload does not burn the table: intelligent anti-burn power measurement is safer, novice can also easily measure! OverviewScreen: 2.8-inch true

color screenResolution: 320 * 240Charging: TYPE-C (5V/1A)Battery: 3000mAh lithium batterySupport function: Oscilloscope, signal generator, digital multimeter (see function parameters)Standby time: 8 hours (laboratory theory maximum) Multimeter

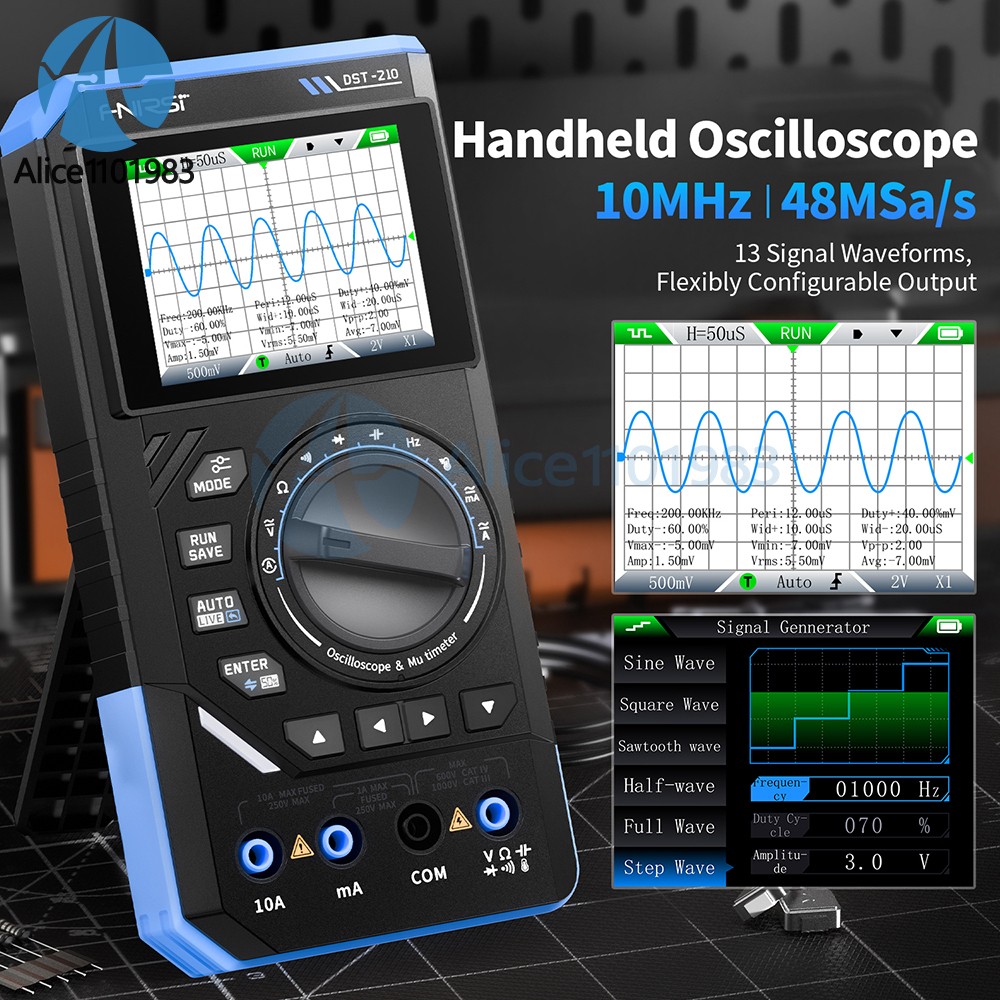

specificationsDC voltage: 9.999V/99.99V/999.9V, accuracy: ±(0.5%+3)AC voltage: 9.999V/99.99V/750.0V, accuracy: ±(1%+3)DC current: 9999uA/99.99mA/999.9mA/9.999A, accuracy: ±(1.2%+3)AC Current: 9999uA/99.99mA/999.9mA/9.999A, Accuracy: ±(1.5%+3)Resistance: 9.999MΩ/999.9KΩ199.99KΩ19.999KΩ/999.9Ω, accuracy: ±(0.5%+3)99.99MΩ, Accuracy: ±(1.5%+3)Capacitance: 999.9uF199.99uF/9.999uF/999.9nF/99.99nF9.999nF, Accuracy: ±(2.0%+5)9.999mF/99.99mF, accuracy: ±(5.0%+20)Temperature: (-55~1300℃/(-67~2372℉), Accuracy: ±(2.5%+5)Diode: √On-off: √Firewire detection: √ Oscilloscope SpecificationsChannel: Dual ChannelSampling rate: 50MAnalog bandwidth: 10M (dual-channel independent 10M)Memory depth: 32kbInput impedance: 1MΩTime base range: 50ns-10sVertical sensitivity: 20mV/div-10V/div (X1 step)Maximum measurement voltage: ±400VTrigger mode: automatic, normal, singleTrigger type: rising edge, falling edgeDisplay Mode: YT/ScrollingCoupling: AC/DCWaveform Screenshot Saving: SupportView waveforms on computer: Support Function Signal Generator SpecificationsChannel: single channelFrequency: 1Hz-2MHzAmplitude: 0.1-3 List1 x Main unit1 x Instruction Manual1 x Probe2 x Alligator Clip Probes1 x Multimeter Pen Cable1 x Type-C Charging Cable Model: DST-210 Features: 1. Multi-functional 3-in-1: Oscilloscope + Multimeter + Signal Generator in one versatile unit.2. Equipped with a 2.8-inch TFT colour screen for clear, intuitive display.3. Incorporates a high-capacity rechargeable battery (3000mAh), supporting extended standby operation for up to 10 hours.4. Waveform storage: Enables screenshot saving and viewing for convenient data analysis.5. Signal generator function: Supports 13 waveform outputs with a frequency range of 0-50kHz. Adjustable output voltage up to 3V, with configurable output parameters including frequency, amplitude, and duty cycle for versatile adaptation to diverse requirements.6. Multimeter function: Features recording mode, auto-measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold, and LIVE neutral/live wire detection. Includes overload protection and low-battery indicator. Specifications:Product Model: DST-210Screen Material: 2.8-inch TFT colour displayBacklight: Adjustable backlight brightnessPower Supply: Type-C (5V/1A)Battery: 3000mAhSelectable Languages: Chinese, EnglishProduct Dimensions: 177.43 × 87.47 × 34.5mmMultimeter Specifications:DC Voltage: 1.9999V/19.999V/199.99V/1000V Accuracy: ±0.5%+3AC Voltage: 1.9999V/19.999V/199.99V/750V Accuracy: ±1%+3DC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.2%+3AC Current: 19.999mA/199.99mA/1.9999A/9.999A Accuracy: ±1.5%+3Resistance: 19.999MΩ/1.9999MΩ/199.99MΩ/19.999KΩ Accuracy: ±0.5%+3Resistance: 1.9999KΩ/199.99Ω Accuracy: ±2.0%+3Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF Accuracy: ±2.0%+5Capacitance: 9.999mF/99.99mF Accuracy: ±5.0%+20Frequency: 9.999 MHz / 999.9 kHz / 99.99 kHz / 9.999 kHz / 999.99 Hz / 99.99 Hz / 9.999 Hz Accuracy: ±0.1% + 2Temperature: -55 to +1300°C / -67 to 2372°F Accuracy: ±2.5% + 5Oscilloscope Parameters:Real-time sampling rate: 48 MSa/s (DST-210)Analogue bandwidth: 10 MHz (DST-210)Horizontal time base range: 50 ns to 20 s (DST-210)Real-time sampling rate: 5 MSa/s (DST-201)Analogue bandwidth: 1 MHz (DST-201)Horizontal time base range: 500 ns to 20 s (DST-201)Coupling mode: AC/DCTest voltage range: 1:1 probe: 80 Vpp (+40 V), 10:1 probe: 800 Vpp (+400 V)Vertical sensitivity: 10 mV/div to 10 V/div (x1 range)Vertical displacement: Adjustable with indicationTrigger modes: Auto, Normal, SingleTrigger types: Rising edge, falling edgeTrigger level: Adjustable with indicationWaveform freeze: Yes (HOLD function)Automatic measurements: Maximum, minimum, average, RMS, peak-to-peak, frequency, period, duty cycleSignal generator parameters:Output waveforms: Supports 13 waveform outputsWaveform frequency: 0-50kHzSquare wave duty cycle: 0-100% (adjustable for square and sawtooth waves)Waveform amplitude: 0.1V-3.0V Package includes:Main unit ×1P1600 oscilloscope probe ×1USB-C charging cable ×1Test pen ×1Alligator clip probe ×1 Payment MethodShipping PolicyReturns & Refund PolicyFeedbackPayment Method EBAY Managed Payment. But we only Accept your Ebay Address, please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand.2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday.Returns & Refund Policy If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please keep in touch with us and double check the return address before you return it. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. .cs-head .cs-head .dc-cs:hover ,.dc-dock:hover .dc-cs .dock-rb .cs-top .cs-top @media (max-width:480px) .cs-top }.cs-top .cs-append ,.cs-bottom .cs-append ,.cs-bottom .cs-append , @media (max-width:480px) .cs-bottom }.cs-append ,.cs-bottom .cs-append, @media (min-width:640px) .cs-list-col7 .cs-list-col8 .cs-list-col9 .cs-list-col10 }.cs-list .cs-list:after,.cs-list:before .cs-list:after .cs-list>li .cs-append,.cs-bottom .cs-list-col6>li .cs-list-col7 .cs-list-col7>li .cs-list-col8 .cs-list-col8>li .cs-list-col9 .cs-list-col9>li .cs-list-col10 .cs-list-col10>li .cs-list-col11 .cs-list-col11>li .cs-list-col12 .cs-list-col12>li .cs-list-collapse .cs-list-collapse>li @media (max-width:800px) .cs-list .cs-list>li }@media (max-width:640px) .cs-list .cs-list>li }@media (max-width:480px) .cs-list .cs-list>li }.cs-list .cs-list a .cs-list a:hover .cs-list .cs-list .cs-list .cs-list .cs-list .cs-list .cs-list .cs-list .cs-list .cs-list .dc-cs * .cs-top .cs-append ,.cs-bottom ,.cs-top p:empty+hr hr+span.ebay .dc_tracker_img #ds_div>.dc_tracker_img:last-of-type [data-lid="313427014633"] [data-lid="313427014633"] [data-lid="313427014633"] [data-lid="313427014633"] [data-lid="313427014633"] [data-lid="313427014633"] [data-lid="401657554783"] [data-lid="401657554783"] [data-lid="401657554783"] [data-lid="401657554783"] [data-lid="401657554783"] [data-lid="401657554783"] [data-lid="313389887368"] [data-lid="313389887368"] [data-lid="313389887368"] [data-lid="313389887368"] [data-lid="313389887368"] [data-lid="313389887368"] [data-lid="316511273234"] [data-lid="316511273234"] [data-lid="316511273234"] [data-lid="204437453592"] [data-lid="204437453592"] [data-lid="204437453592"] [data-lid="204437453592"] [data-lid="204437453592"] [data-lid="204437453592"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="402627724081"] [data-lid="402627724081"] [data-lid="402627724081"] [data-lid="402627724081"] [data-lid="402627724081"] [data-lid="402627724081"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="204430940983"] [data-lid="204430940983"] [data-lid="204430940983"] [data-lid="204430940983"] [data-lid="204430940983"] [data-lid="204430940983"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="203268465257"] [data-lid="203268465257"] [data-lid="203268465257"] [data-lid="203268465257"] [data-lid="203268465257"] [data-lid="203268465257"] [data-lid="313389877884"] [data-lid="313389877884"] [data-lid="313389877884"] [data-lid="313389877884"] [data-lid="313389877884"] [data-lid="313389877884"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="314723445646"] [data-lid="314723445646"] [data-lid="314723445646"] [data-lid="314723445646"] [data-lid="314723445646"] [data-lid="314723445646"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="314456630939"] [data-lid="314456630939"] [data-lid="314456630939"] [data-lid="314456630939"] [data-lid="314456630939"] [data-lid="314456630939"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="404222709440"] [data-lid="404222709440"] [data-lid="404222709440"] [data-lid="405710593227"] [data-lid="405710593227"] [data-lid="405710593227"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="314885110048"] [data-lid="314885110048"] [data-lid="314885110048"] [data-lid="314885110048"] [data-lid="314885110048"] [data-lid="314885110048"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="312008735269"] [data-lid="312008735269"] [data-lid="312008735269"] [data-lid="312008735269"] [data-lid="312008735269"] [data-lid="312008735269"] [data-lid="203215256108"] [data-lid="203215256108"] [data-lid="203215256108"] [data-lid="203215256108"] [data-lid="203215256108"] [data-lid="203215256108"] [data-lid="317209139512"] [data-lid="317209139512"] [data-lid="317209139512"] [data-lid="316463913816"] [data-lid="316463913816"] [data-lid="316463913816"] [data-lid="317209139512"] [data-lid="317209139512"] [data-lid="317209139512"] [data-lid="205653204721"] [data-lid="205653204721"] [data-lid="205653204721"] [data-lid="205653204721"] [data-lid="205653204721"] [data-lid="205653204721"] [data-lid="205644599948"] [data-lid="205644599948"] [data-lid="205644599948"] [data-lid="205644599948"] [data-lid="205644599948"] [data-lid="205644599948"] [data-lid="205639358556"] [data-lid="205639358556"] [data-lid="205639358556"] [data-lid="205639358556"] [data-lid="205639358556"] [data-lid="205639358556"] [data-lid="317115118847"] [data-lid="317115118847"] [data-lid="317115118847"] [data-lid="317115118847"] [data-lid="317115118847"] [data-lid="317115118847"] [data-lid="317115118826"] [data-lid="317115118826"] [data-lid="317115118826"] [data-lid="317115118826"] [data-lid="317115118826"] [data-lid="317115118826"] [data-lid="406064879717"] [data-lid="406064879717"] [data-lid="406064879717"] [data-lid="406064879717"] [data-lid="406064879717"] [data-lid="406064879717"] [data-lid="406046140854"] [data-lid="406046140854"] [data-lid="406046140854"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="406029129528"] [data-lid="205601169275"] [data-lid="205601169275"] [data-lid="205601169275"] [data-lid="205601169275"] [data-lid="205601169275"] [data-lid="205601169275"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="406019797028"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="316624504311"] [data-lid="405710593227"] [data-lid="405710593227"] [data-lid="405710593227"] [data-lid="316511273234"] [data-lid="316511273234"] [data-lid="316511273234"] [data-lid="316463913816"] [data-lid="316463913816"] [data-lid="316463913816"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="205338042260"] [data-lid="405616782514"] [data-lid="405616782514"] [data-lid="405616782514"] [data-lid="405616782514"] [data-lid="405616782514"] [data-lid="405616782514"] [data-lid="405616781535"] [data-lid="405616781535"] [data-lid="405616781535"] [data-lid="405616781535"] [data-lid="405616781535"] [data-lid="405616781535"] [data-lid="405616773569"] [data-lid="405616773569"] [data-lid="405616773569"] [data-lid="405616773569"] [data-lid="405616773569"] [data-lid="405616773569"] [data-lid="316458516393"] [data-lid="316458516393"] [data-lid="316458516393"] [data-lid="316458516393"] [data-lid="316458516393"] [data-lid="316458516393"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205171177251"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205130642740"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="205126988574"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="315920733058"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="405289022811"] [data-lid="315695673704"] [data-lid="315695673704"] [data-lid="315695673704"] [data-lid="315695673704"] [data-lid="315695673704"] [data-lid="315695673704"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204830248462"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="204732249685"] [data-lid="404845065167"] [data-lid="404845065167"] [data-lid="404845065167"] [data-lid="404845065167"] [data-lid="404845065167"] [data-lid="404845065167"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="314961490613"] [data-lid="314961490613"] .dc_tracker_img:last-of-type p:empty+hr hr+span.ebay,hr+*>span.ebay
