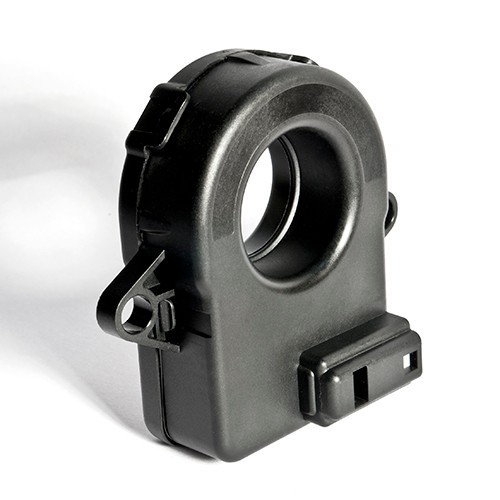

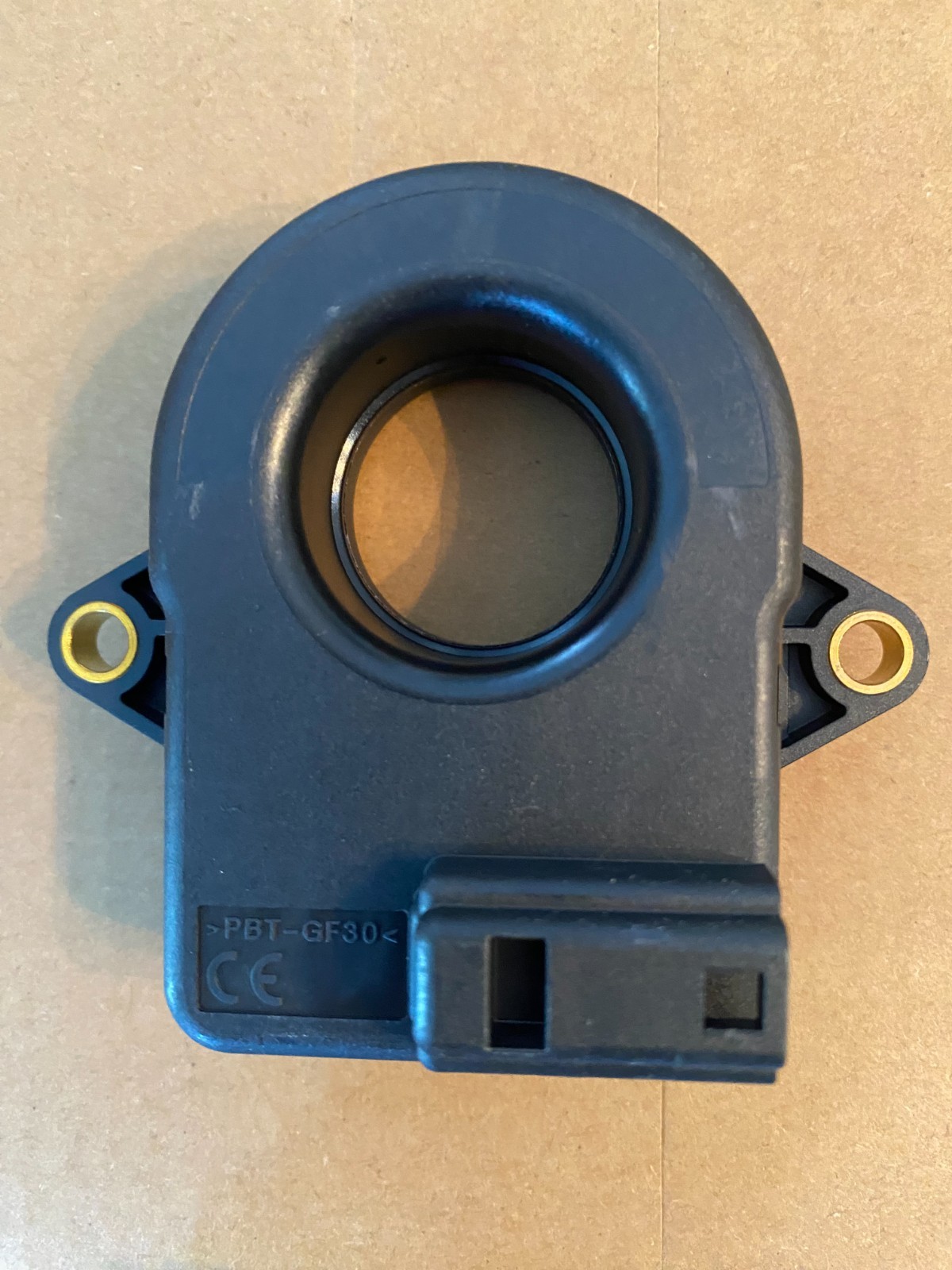

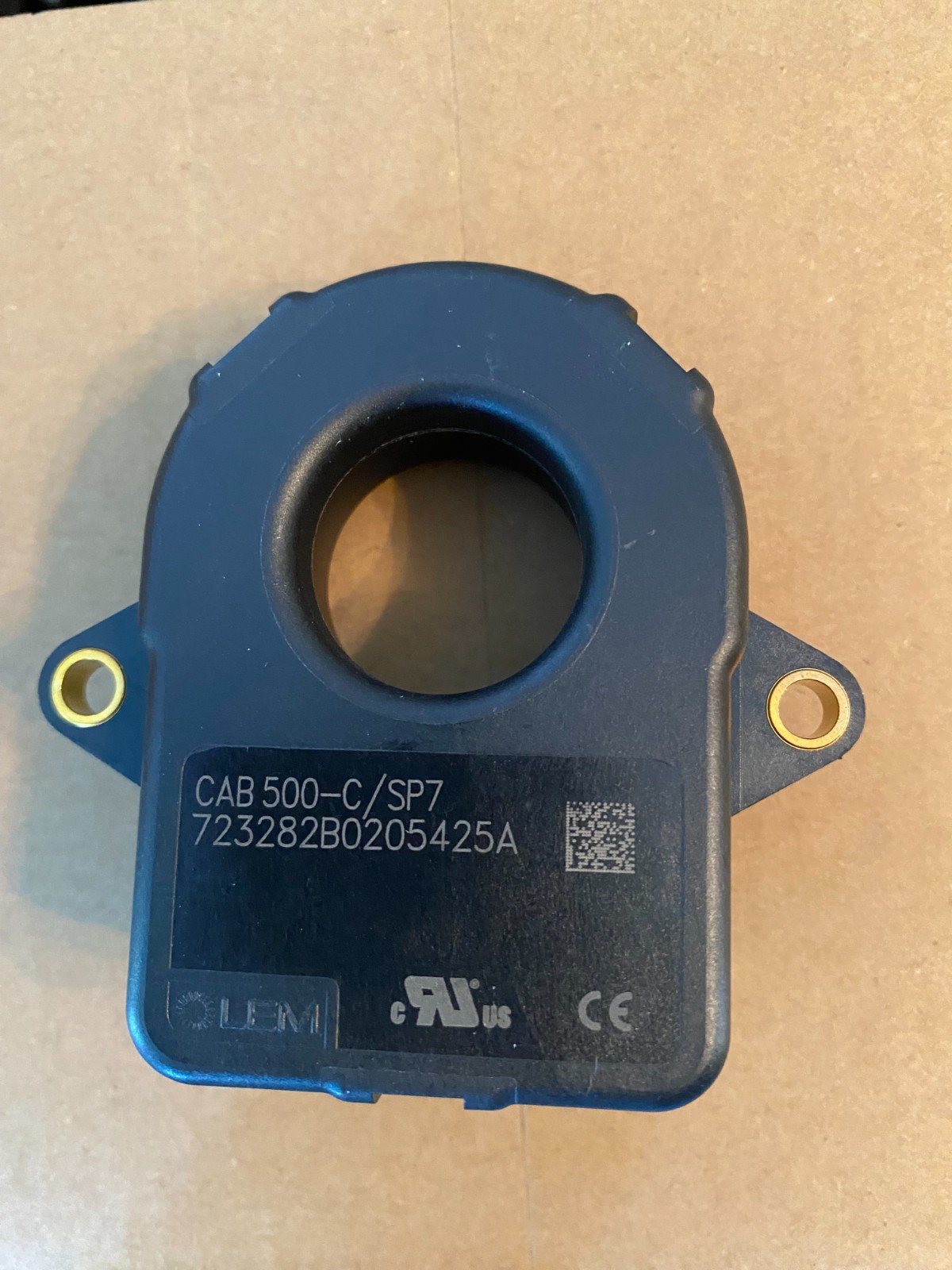

LEM CAB 500-C/SP7 Fluxgate Current Sensor for High Power Applications

This listing is for one (1) LEM Fluxgate current sensor family for high power applications +/-300 to +/-1500A.Integrating CAN bus output, suitable for state of the art high voltage battery management systems.The CAB family is for battery monitoring applications where high accuracy and very low offset are required.It offers galvanic separation between primary circuit (high voltage) and the secondary circuit (12 V system).Features● Transducer using Fluxgate technology● Overcurrent detection mechanism● Panel mounting● Unipolar +12 V battery power supply● Output signal: High speed CAN (up to 500 kBps)● Configurable internal digital low-pass frequency filter● Connector type: Tyco AMP 1473672-1● Configurable CAN speed/CAN ID● UL508 compliant● Ingress Protection - IP42 level.Advantages● Offset below 10 mA● Total error 0.3 % at 25 °C● Total error 0.5 % at −40 °C to 85 °C● Full galvanic separation.Automotive applications● Hybrid and electric vehicle battery pack● Conventional lead-acid batteries● Accurate current measurement for battery management applications (SOC, SOH, SOF, etc…).Returns accepted.
